ACQ158XR0 01 – UNIT PARTS
Written by
in

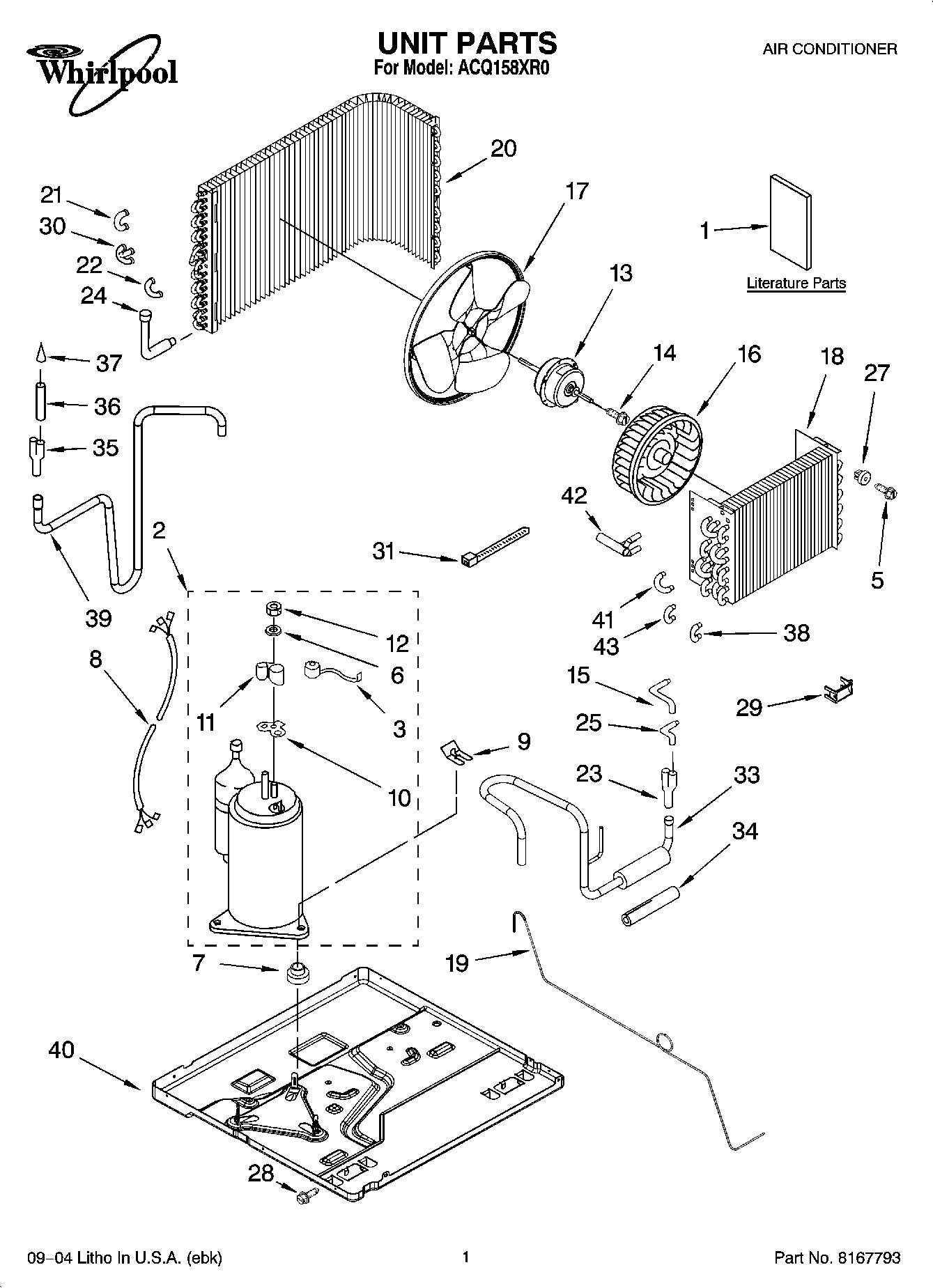

ACQ158XR0 01 – UNIT PARTS
Products
Position
Product
1
Energy Guide
1
Wiring Diagram
1
Use & Care Guide
2
Compressor
3
Overload
5
WP489463 Whirlpool Refrigerator Screw
6
Gasket
7
WP950021 Whirlpool Grommet
8
Wiring Harness, Compressor
9
Clip, Compressor
10
Gasket, Terminal Cover
11
Cover, Terminal
12
W10833054 Whirlpool Air Conditioner Mounting Nut
13
Motor, Fan
14
WPW10109200 Whirlpool Screw
15
Tube, Feeder
16
Wheel, Blower
17
Blade, Fan
18
Evaporator
19
Tube, Restrictor
20
Condenser
21
Bend, Return
22
Bend, Return
23
Tube, Flow Divider
24
Tube, Connecting
25
Tube, Feeder
27
Grommet, Screw
28
Screw, 8 x 3/8
29
Clip, Anticipator
30
Return Bend, Three Way Evaporator (2)
31
WPW10339879 Whirlpool Wire Tie
33
Tube, Suction (Includes Item 34)
34
Seal, Suction Tube
35
Tube, Flow Divider
36
Tube, Outlet (Includes Illus. 4)
37
Strainer
38
Bend, Return Condenser (4)
39
Tube, Discharge
40
Base
41
Bend, Return Condenser (1)
42
Manifold, Suction
43
Bend, Return Condenser (10)
43
REFRIGERANT CHARGE 26.50 oz.
←
