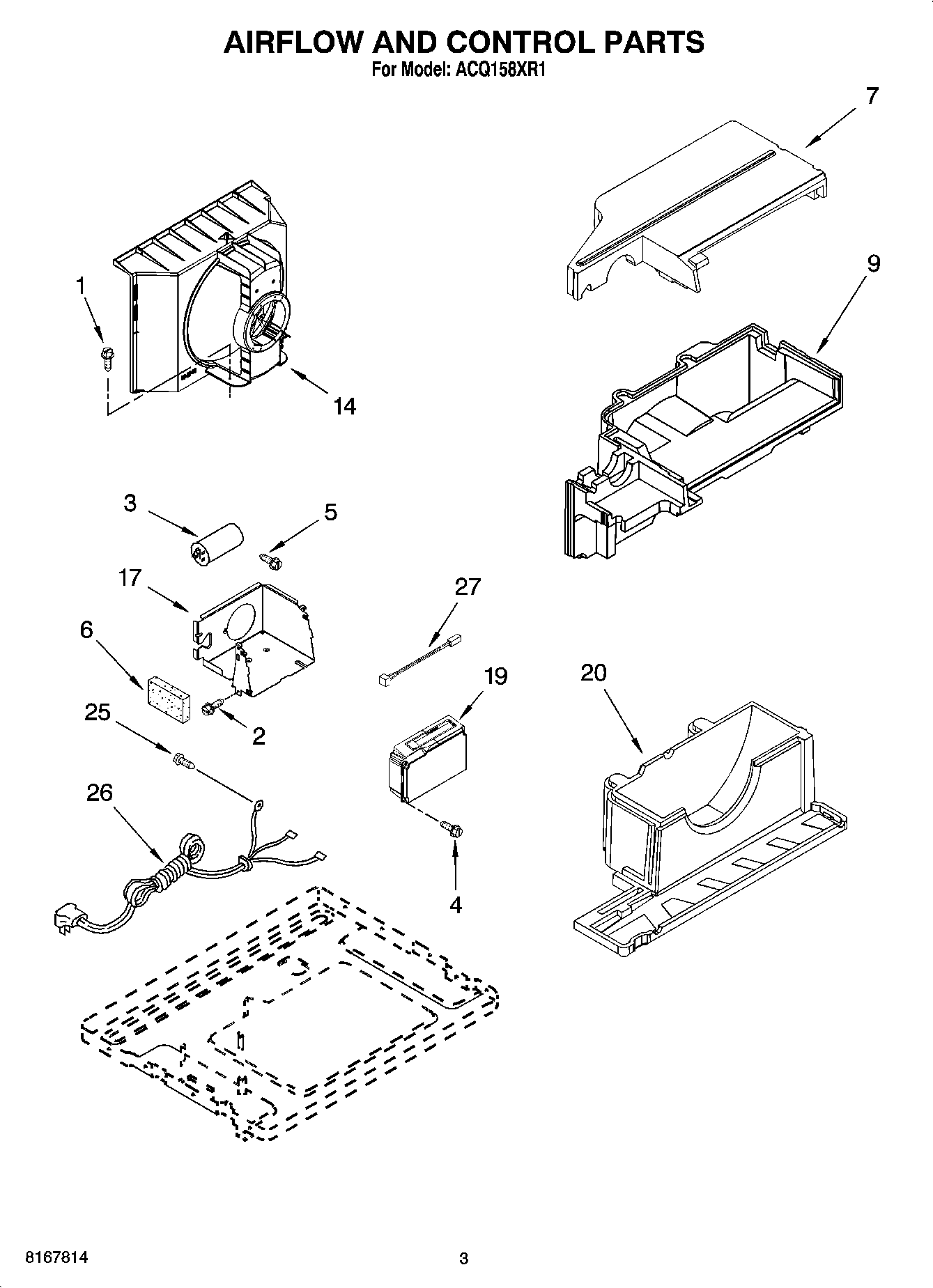

ACQ158XR1 02 – AIR FLOW AND CONTROL PARTS

Products

Position	Product
1	WP489069 Whirlpool Compactor Screw
2	WP3196557 Whirlpool Screw
3	WP1187485 Whirlpool Air Conditioner Capacitor
4	489392 Whirlpool Refrigerator Screw
5	WP489478 Whirlpool Refrigerator Screw
6	Seal, Control Box
7	Hood, Air Housing
9	Housing, Top
14	Shroud, Condenser
17	Box, Control
19	Panel, Control (Includes Item 27)
20	Housing, Air- Bottom
25	Screw 8-18 x .295
26	Cable, Appliance
27	Thermistor
