ACQ184XD0 03 – CABINET

ACQ184XD0 03 – CABINET

Written by

in

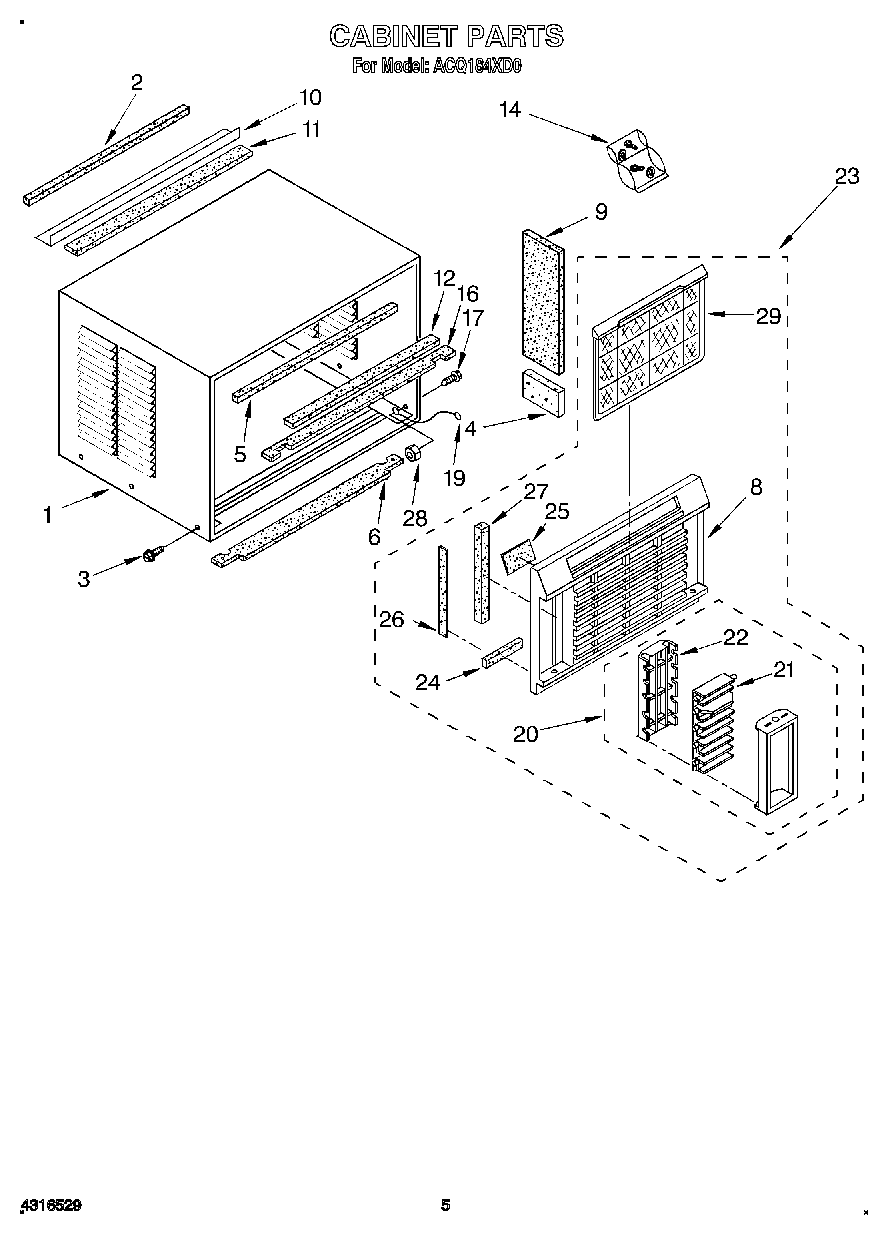

ACQ184XD0 03 – CABINET

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
3WP489069 Whirlpool Compactor Screw
4Insulation, Cabinet Side (2)
5Seal, Top
6Seal
8Cabinet Front
9Insulation, Cabinet Side (2)
10Angle, Top Mounting
11Seal, Top Mounting Angle
12Strip, Seal
14Bag, Accessory
16Seal
17WP488234 Whirlpool Air Conditioner Screw
19Wire, Ground
20Cartridge, Complete
21Horzontal Louver
22Ribs, Vertical
23Front, Complete
24Seal (Right Side)
25Seal (Left Side)
25Seal (Right Side)
25Seal (2)
26WP854334 Whirlpool Air Conditioner Sealing Strip
27Seal (Left Side)
28WP486255 Whirlpool Air Conditioner Nut
29Filter
