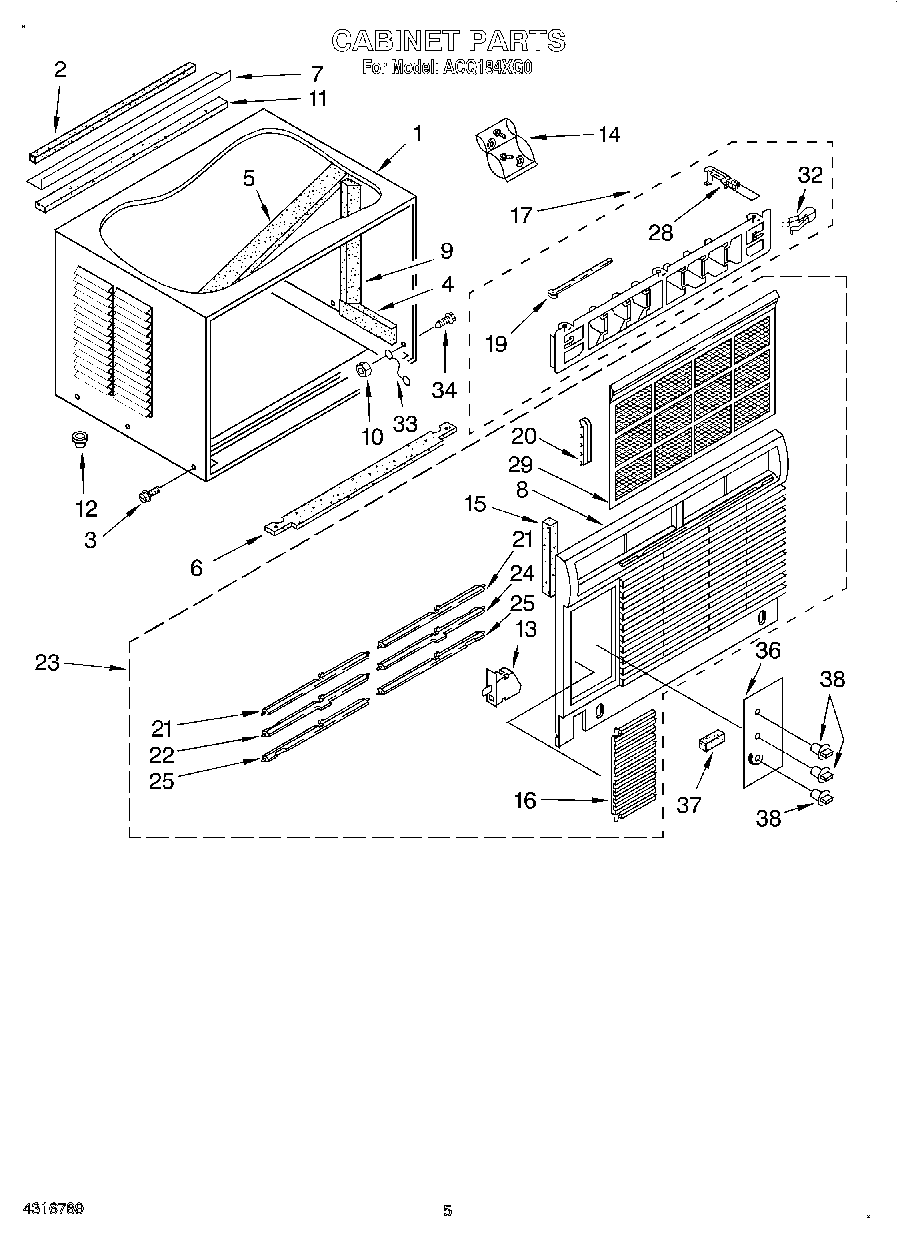

ACQ184XG0 03 – CABINET

Products

PositionProduct
1Cabinet (Includes Insulation)
2Gasket, Meeting Rail
3WP489069 Whirlpool Compactor Screw
4Insulation, Cabinet Side (2)
5Insulation, Cabinet (Top)
6Seal
7Angle, Top Mounting
8Front, Cabinet
9Insulation, Cabinet Side (2)
10WP486255 Whirlpool Air Conditioner Nut
11Seal, Top Mounting Angle
12Cup, Condensate Drain
13Monitor, Filter
14Bag, Accessory
15Seal, Front (3)
16Door, Control
17Louver, Verticle
19Link, Vertical Louver (2)
20Link, Louver (Horizontal)
21Louver, Horizontal (8)
22Louver, Horizontal (Handle Left)
23Front, Complete
24Louver, Horizontal (Handle Right)
25Louver, Horizontal (Notch Right)
25Louver, Horizontal (Notch Left)
28Louver, Actuator
29Filter
32Spring, Detent
33Wire, Ground
34WP488234 Whirlpool Air Conditioner Screw
36Plate, Escutcheon
37Spacer, Escutcheon Plate (3)
38Knob (3)
