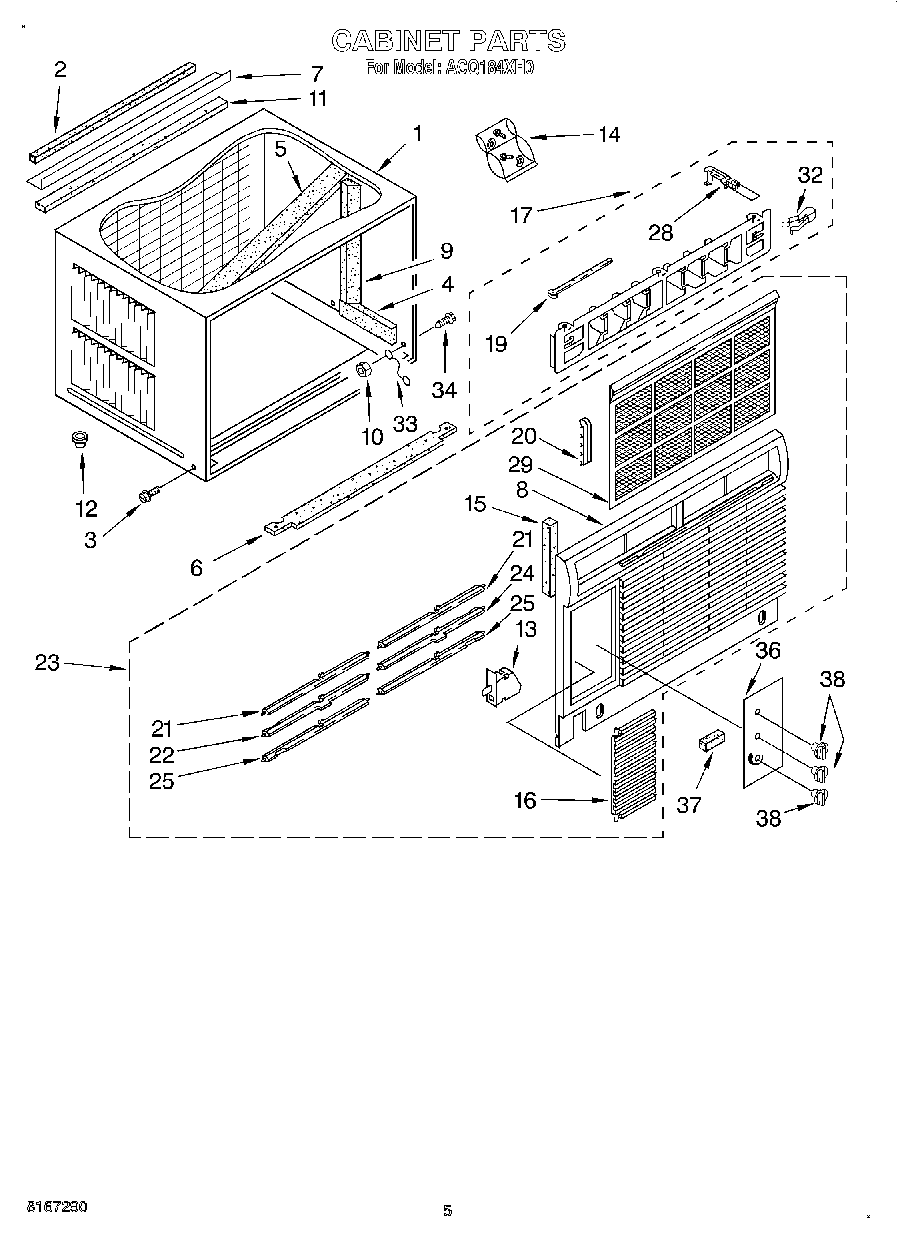

ACQ184XH0 03 – CABINET

ACQ184XH0 03 – CABINET

Written by

in

ACQ184XH0 03 – CABINET

Products

PositionProduct
1Cabinet (Includes Insulation)
2Gasket, Meeting Rail
3WP489069 Whirlpool Compactor Screw
4Insulation, Cabinet Side (2)
5Insulation, Cabinet (Top)
6Seal
7Angle (Top)
8Front, Cabinet
9Insulation, Cabinet Side (2)
10WP486255 Whirlpool Air Conditioner Nut
11Seal, Top Mounting Angle
12Cup, Condensate Drain
13Monitor, Filter
14Bag, Accessory
15Seal, Front (3)
16Door, Control
17Vertical, Louver
19Link, Verticle Louver (2)
20Link, Horizontal Louver (5)
21Louver, Horizontal (8)
22Louver, Horizontal W/ Handle, Left
23Front, Complete
24Louver, Horizontal W/ Handle, Right
25Louver, Horizontal (Notch Right)
25Louver, Horizontal (Notch Left)
28Actuator, Louver
29Filter
32Spring, Detent
33Wire, Ground
34WP488234 Whirlpool Air Conditioner Screw
36Plate, Escutcheon
37Spacer, Escutcheon Plate (3)
38Knobs (3)
