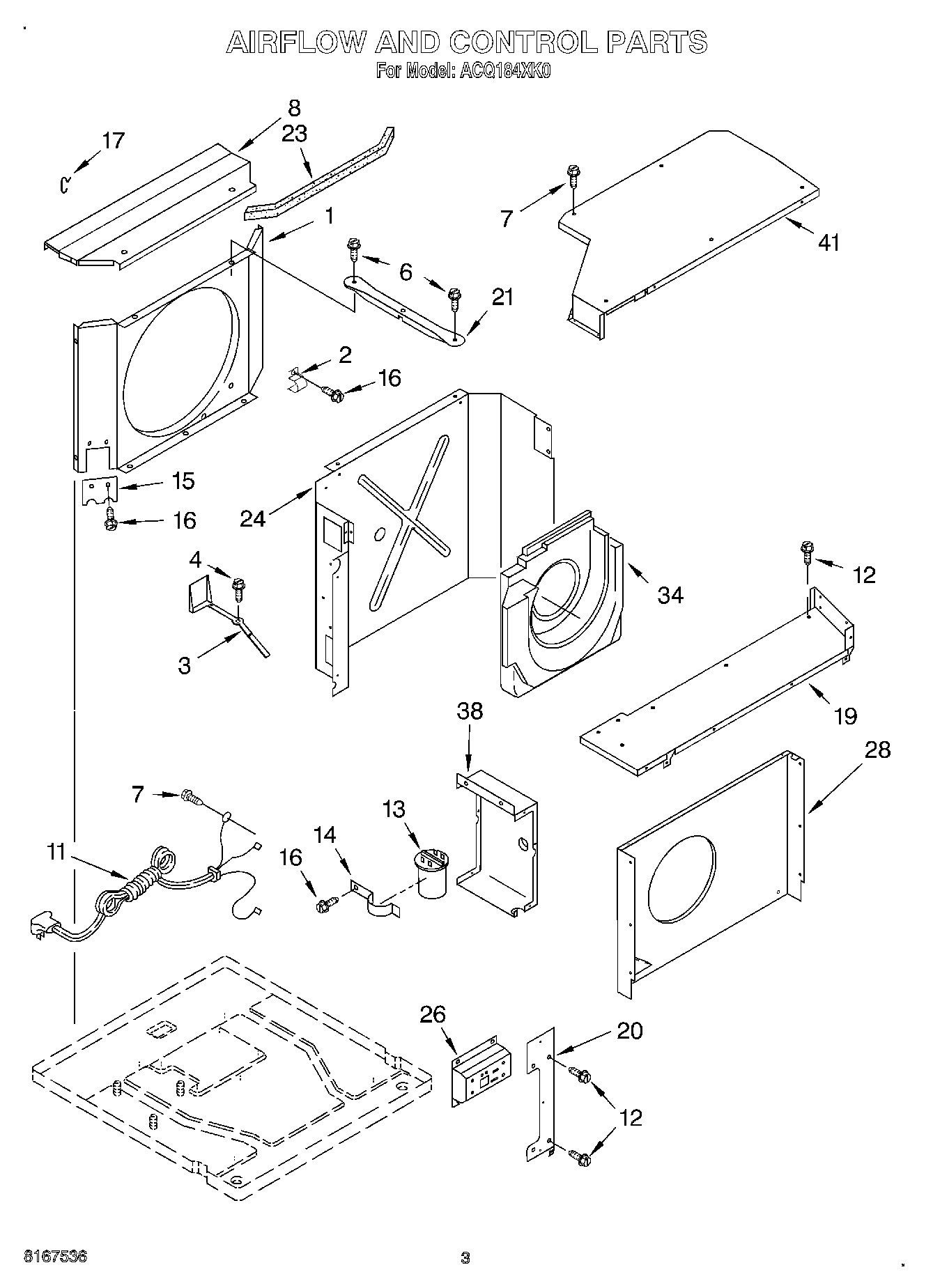

ACQ184XK0 02 – AIR FLOW AND CONTROL

Products

Position	Product
1	Shroud, Condenser
2	Clip, Wet Loop
3	Door, Exhaust
4	Screw, 8-18 x .437
6	WP308685 Whirlpool Microwave Screw
8	Top, Condenser
11	Cord, Appliance
12	Screw, 8 x 3/8
13	Capacitor
14	Bracket, Capacitor
15	Clip, Nylon
16	WP489069 Whirlpool Compactor Screw
17	Clip, Shroud (2)
19	Top, Evaporator Shroud
20	Panel, Control
21	Support, Unit (2)
23	Seal, Shroud
24	Dividing Wall
26	Control, Electronic
28	Shroud Assembly, Evaporator
34	Housing, Air
38	Control Box (R.S.)
41	Cover, Top
