ACQ184XK0 03 – CABINET

ACQ184XK0 03 – CABINET

Written by

in

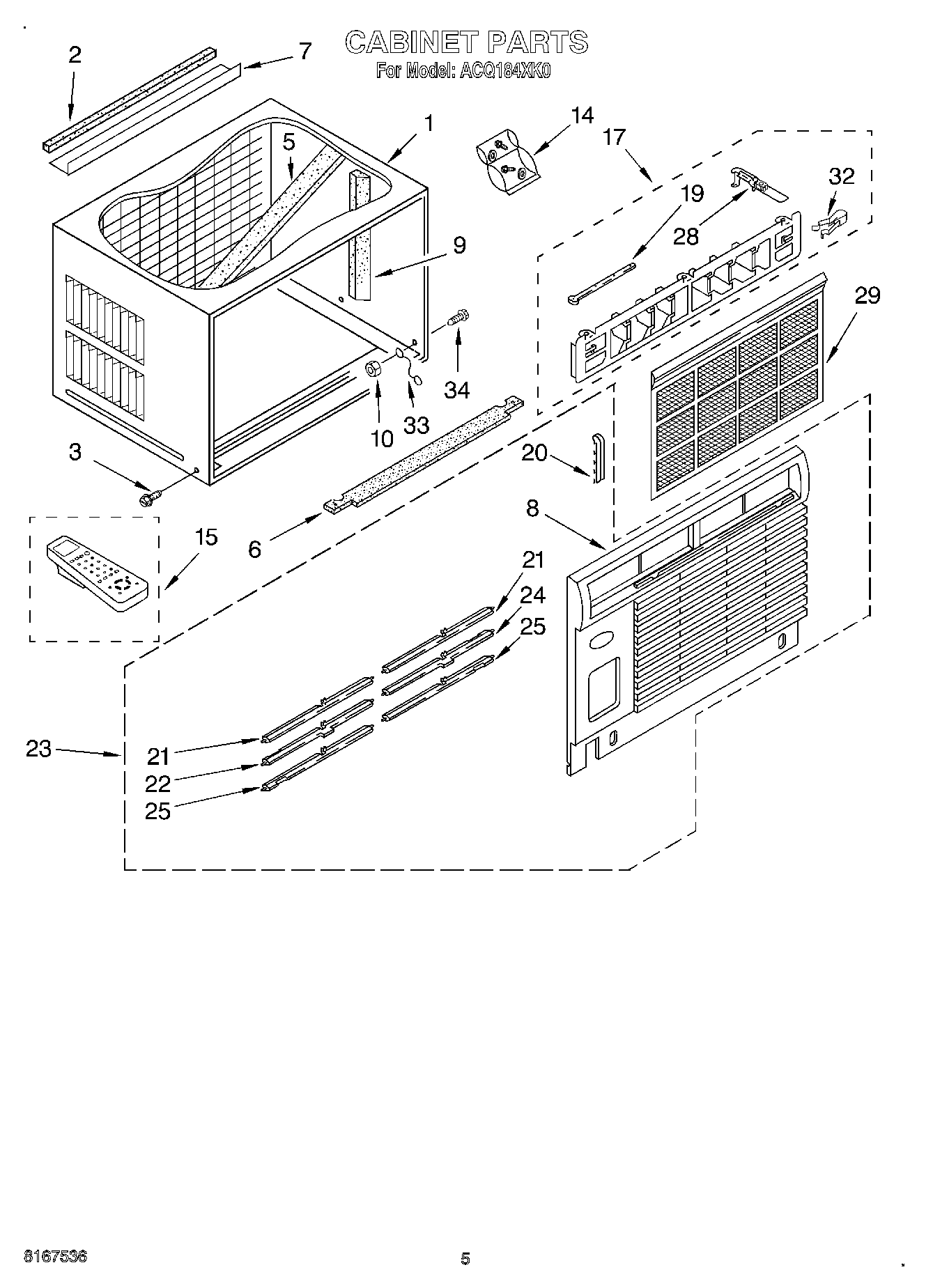

ACQ184XK0 03 – CABINET

Products

PositionProduct
1Cabinet (Includes Insulation)
2Gasket, Meeting Rail
3WP489069 Whirlpool Compactor Screw
5Insulation, Top (Cabinet)
6Seal
7Angle (Top)
8Front, Cabinet
9Insulation, Cabinet Side (2)
10WP486255 Whirlpool Air Conditioner Nut
14Bag, Accessory
15Control, Remote
17Vertical, Louver
19Link, Verticle Louver (2)
20Link, Louver (Horizontal)
21Louver, Horizontal (8)
22Louver, Horizontal W/ Handle, Left
23Front, Complete
24Louver, Horizontal W/ Handle, Right
25Louver, Horizontal (Notch Right)
25Louver, Horizontal (Notch Left)
28Actuator, Louver
29Filter
32Spring, Detent
33Wire, Ground
34WP488234 Whirlpool Air Conditioner Screw
