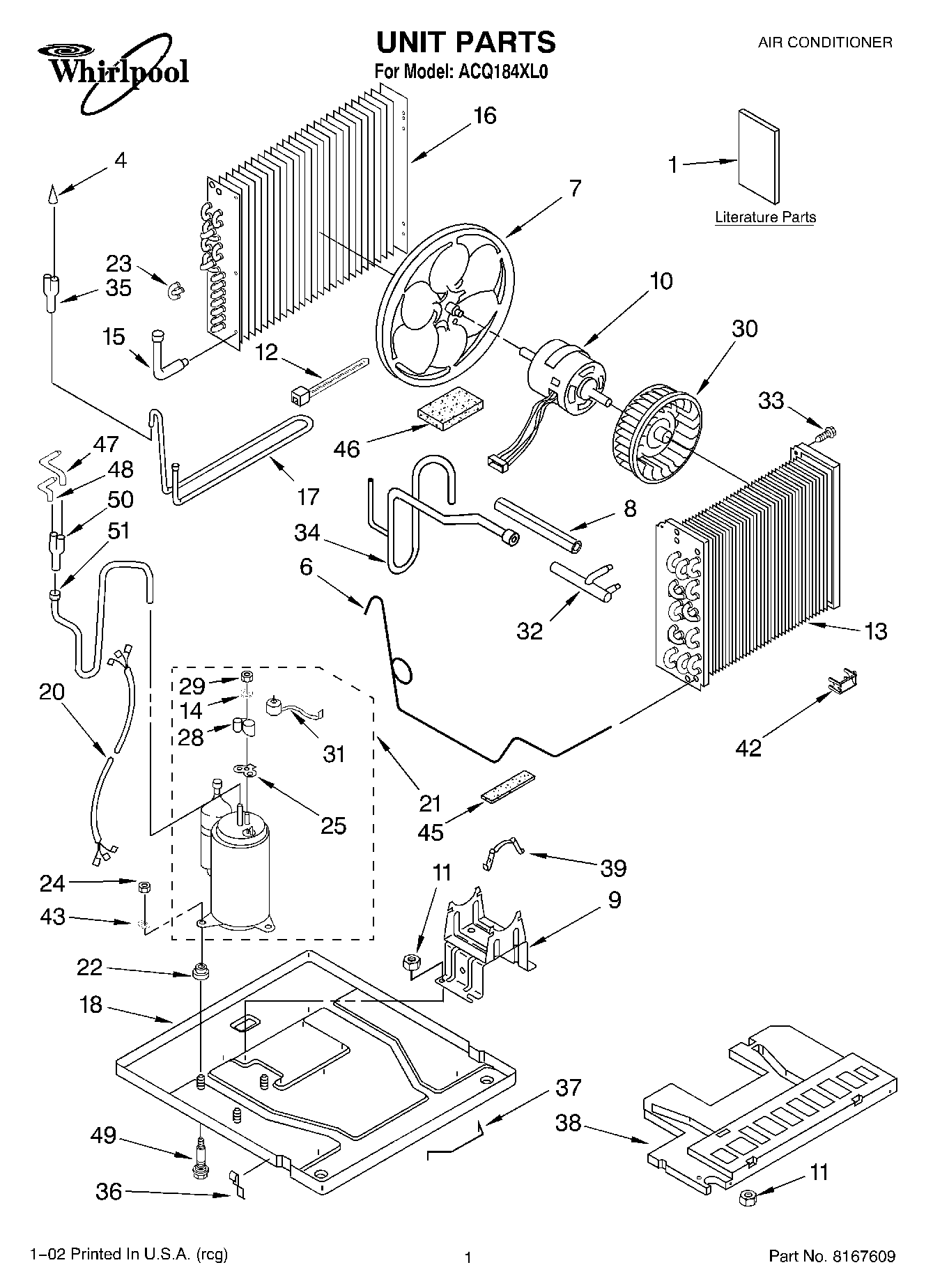

ACQ184XL0 01 – UNIT, LITERATURE

Products

Position	Product
1	Literature Parts (Use & Care Guide)
1	LITERATURE PARTS (Wiring Diagram)
1	Energy Guide
4	Strainer
6	Tube, Restrictor (2)
7	Blade, Fan (Condenser)
8	Insulation, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Gasket
15	Tube, Wet Loop Connect
16	Condenser
17	Wet, Loop
18	Base
20	Harness, Wiring (Compressor)
21	Compressor
22	WP950021 Whirlpool Grommet
23	Bend, 3-Way
24	Locknut (3)
25	Gasket, Terminal Cover
28	Cover, Terminal
29	W10833054 Whirlpool Air Conditioner Mounting Nut
30	Wheel, Blower
31	Overload
32	Manifold, Suction
33	WP489069 Whirlpool Compactor Screw
34	Tube, Suction
35	Tube, Flow Divider
36	Clamp (2)
37	WPL 647971
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
42	Clip, Anticipator
43	W11236646 Whirlpool Washer Assembly
45	Seal, Restrictor Tube
46	Putty, Sound Dampener
47	Tube, Feeder
48	Tube, Feeder
49	Bolt, Compressor
50	Tube, Flow Divider
51	Tube, Discharge
