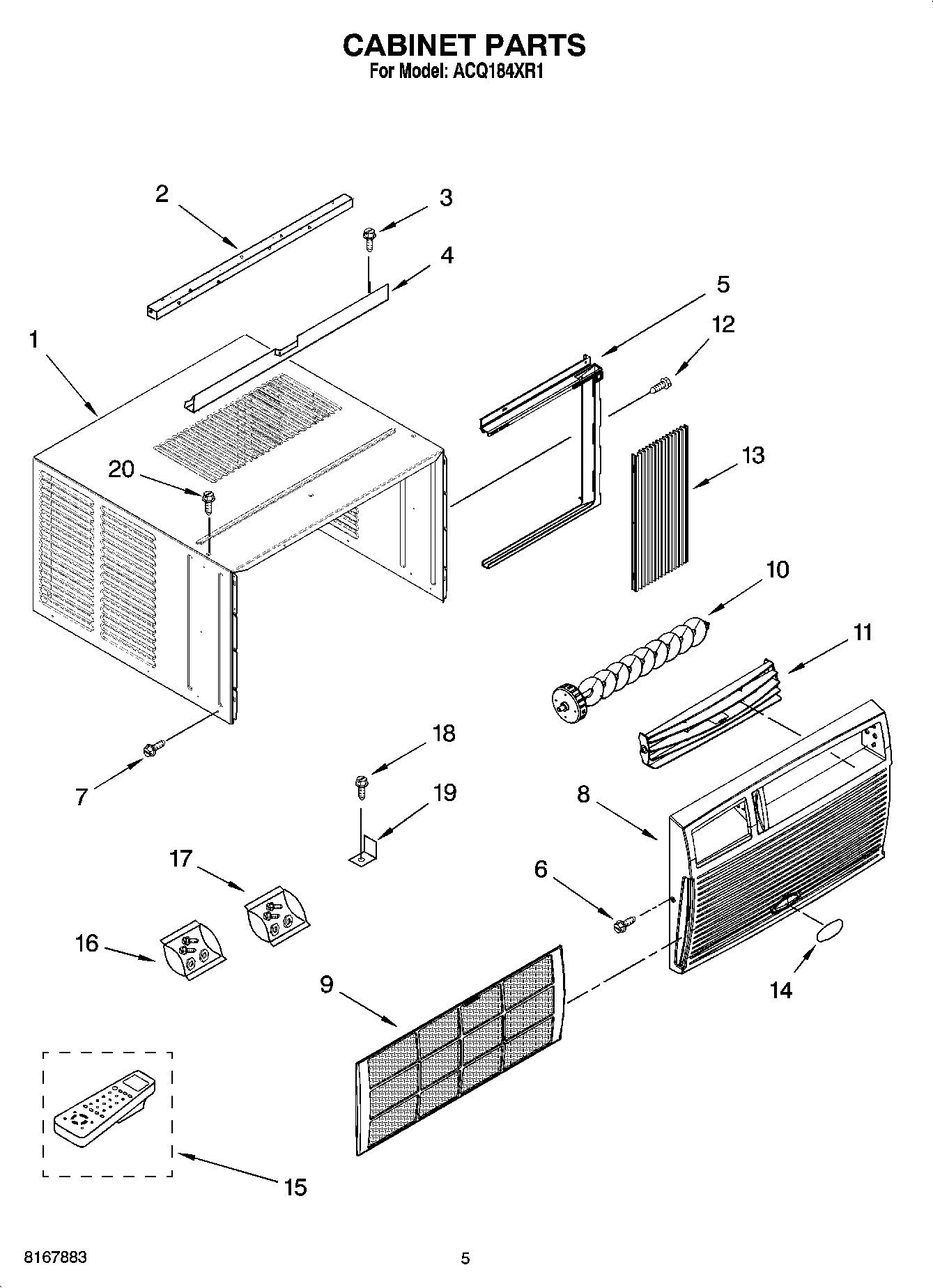

ACQ184XR1 03 – CABINET PARTS

Products

Position	Product
1	CABINET
2	Gasket, Meeting Rail
3	WP3390631 Whirlpool Screw
4	Channel, Top
5	Frame, Curtain (Right Side)
5	Frame, Curtain (Left Side)
6	WP3196557 Whirlpool Screw
7	Screw, 8 x 3/8
8	FRONT
9	Filter
10	Louver, Vertical
11	Louver Horizontal
12	WP965173 Whirlpool Dishwasher Screw
13	CURTAIN
14	WP2213265 Whirlpool Refrigerator Nameplate
15	Control, Remote
16	Bag, Accessory
17	Bag, Accessory (for Curtains)
18	Screw, Wood 8-15 x .750
19	Bracket
20	WP9740848 Whirlpool Dishwasher Screw
