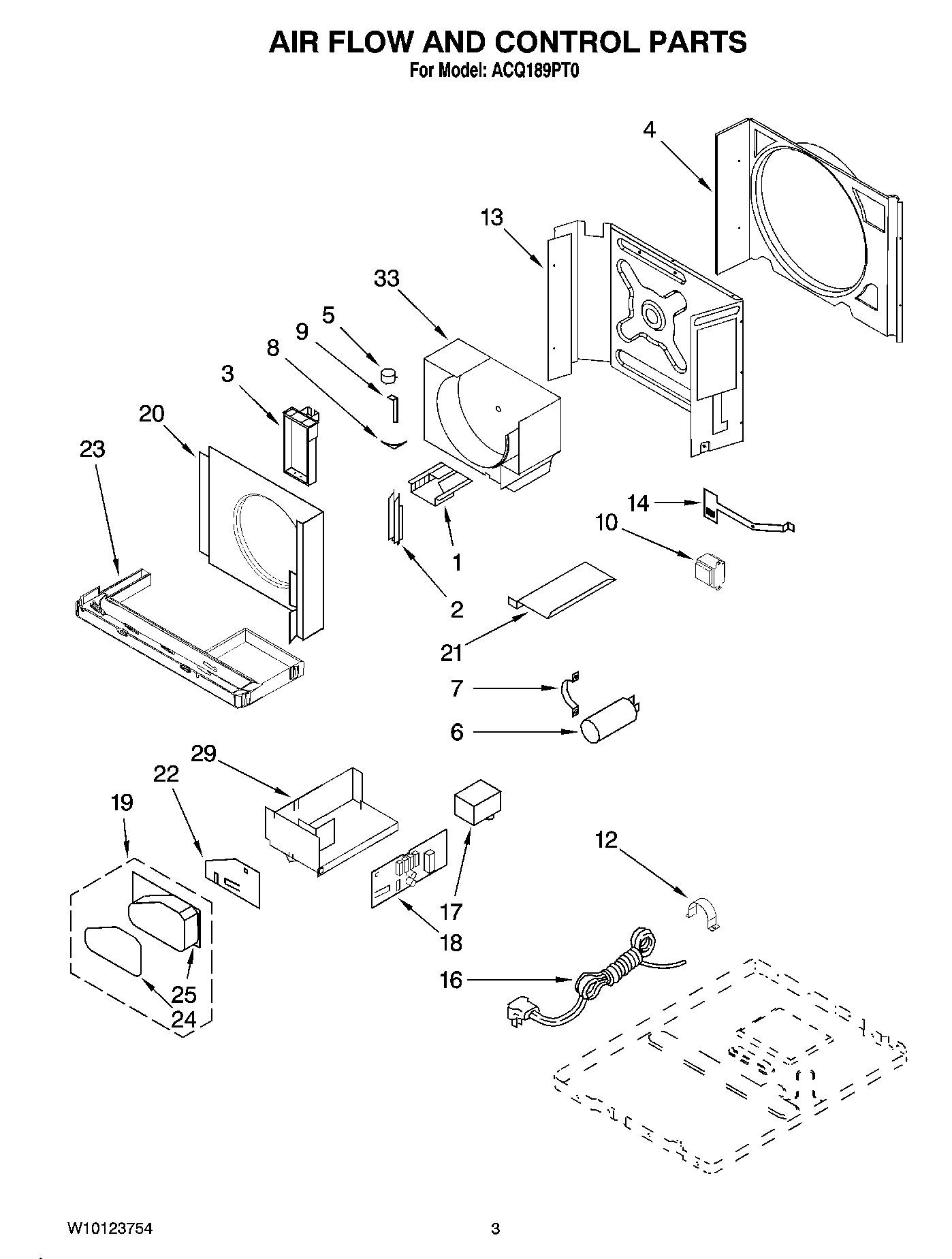

ACQ189PT0 02 – AIR FLOW AND CONTROL PARTS

ACQ189PT0 02 – AIR FLOW AND CONTROL PARTS

Written by

in

ACQ189PT0 02 – AIR FLOW AND CONTROL PARTS

Products

Position	Product
1	Housing, Air
2	Louver
3	Cartridge, Louver
4	Shroud, Condenser
5	Motor, Louver
6	Capacitor, Running
7	Bracket, Capacitor
8	Linkage, Louver
9	Linkage, Louver
10	Transformer
12	Wire Clamp
13	Wall, Dividing
14	Door, Exhaust
16	Cord, Appliance
17	CAPACITOR
18	Microcomputer
19	Escutcheon
20	Shroud, Condenser
21	Cover, Air Duct
22	Display Board
23	Pan, Evaporator
24	Cover
25	Membrane
29	Box, Control
33	Housing, Air
