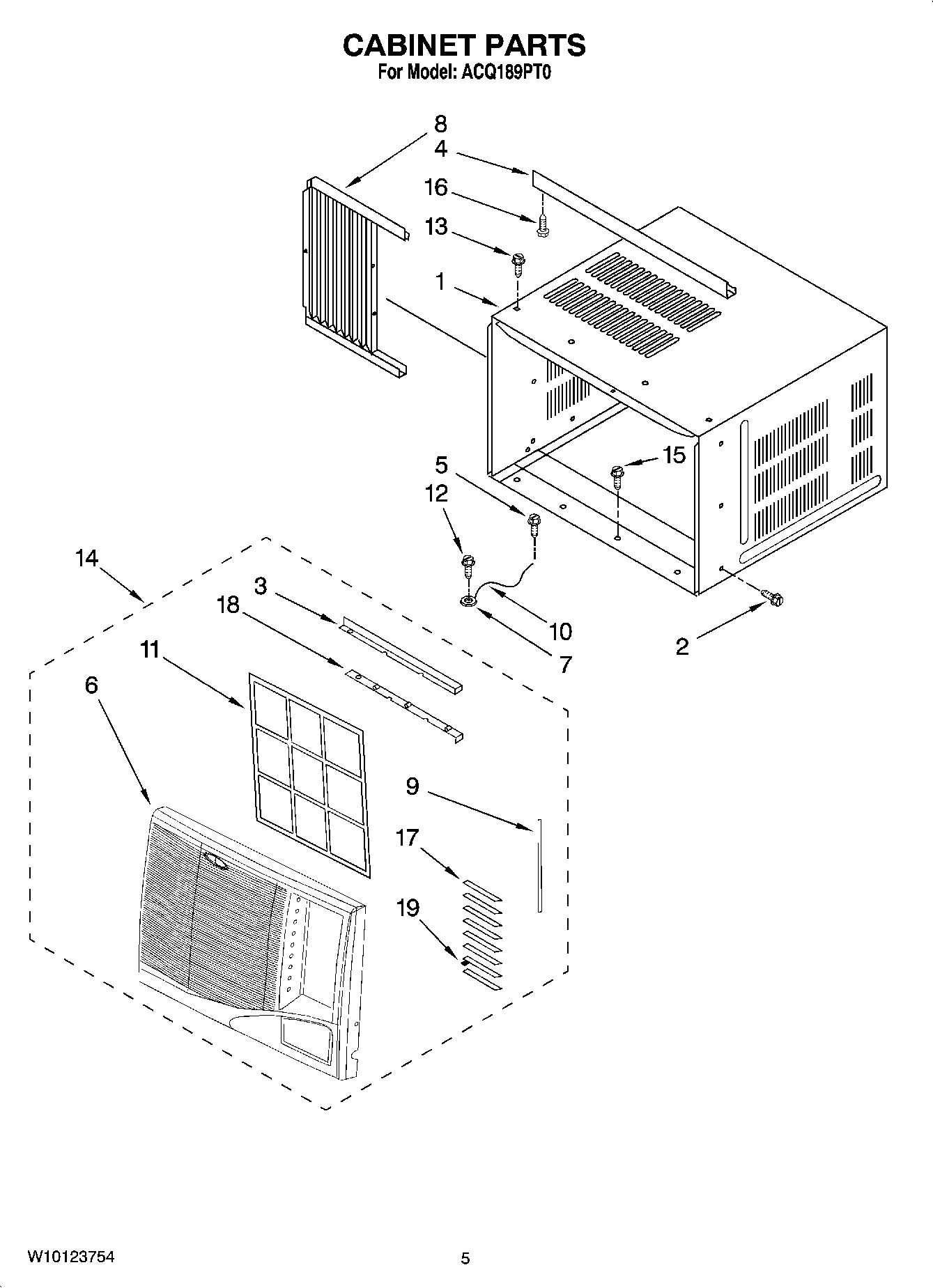

ACQ189PT0 03 – CABINET PARTS

Products

PositionProduct
1CABINET
2SCREW
3Membrane
4Channel, Top
5SCREW
6Front, Cabinet
7WASHER
8Curtain Assembly Right & Left Side
9Guide, Linkage
10Ground Wire
11Filter
12SCREW
13Screw (8)
14Front, Cabinet Assembly
15SCREW
16Screw
17Guide, Louver
18Guide, Filter (Up)
18Guide, Filter (Down)
19Guide, Louver
