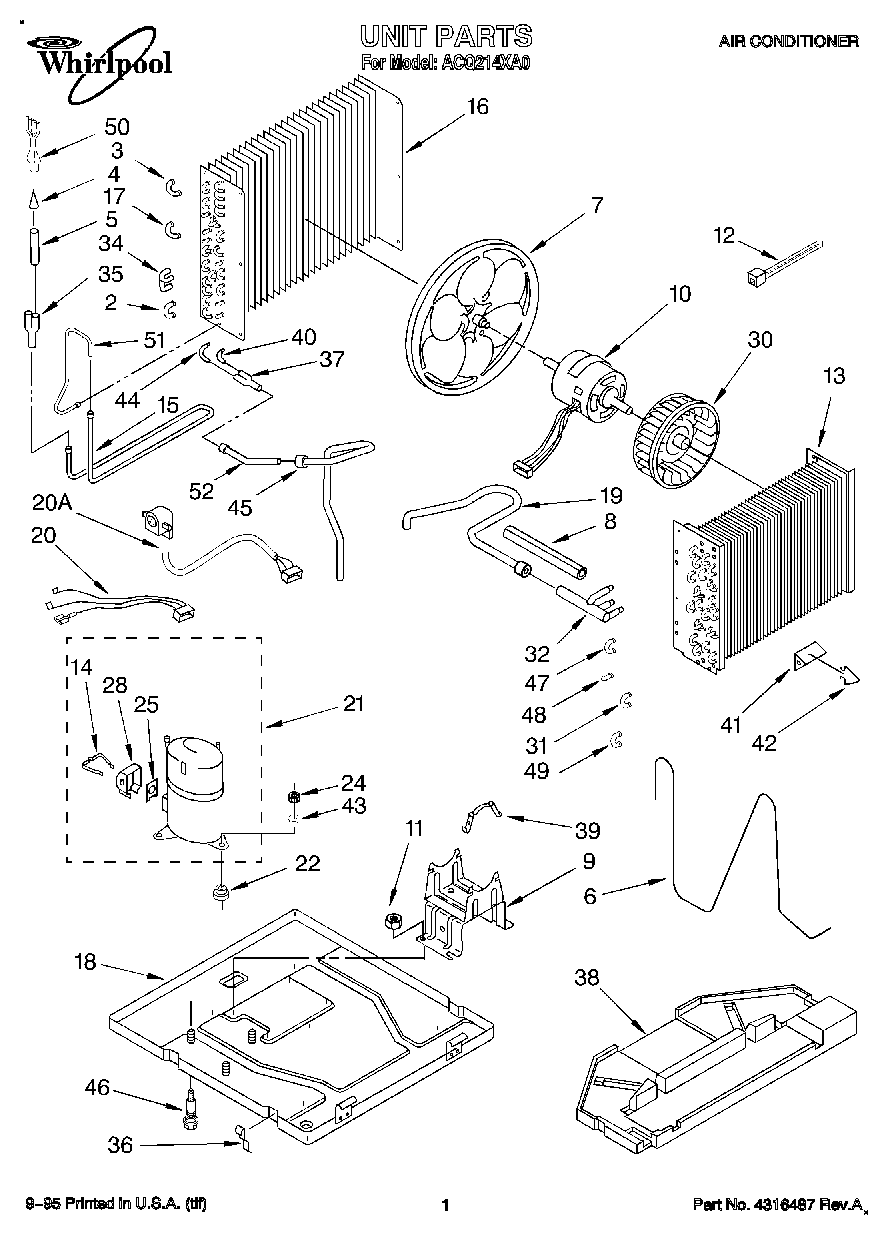

ACQ214XA0 01 – UNIT, LITERATURE

Products

Position	Product
	Instructions, Installation
	Use And Care Guide
	Tech Sheet
	Owners Manual (Wiring Diagram)
2	Bend, Return Condenser (10)
3	Bend, Return Condenser (4)
4	Strainer
5	Tube, Outlet (Includes Illus. 4)
6	Tube, Restrictor (4)
7	Blade, Fan (Condenser)
8	Seal, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Retainer, Terminal Cover
15	Tube, Wet Loop
16	Condenser
17	Tube, Riser (2)
18	Base (Includes 46)
19	Suction Tube Assembly
20A	Harness, Wiring (Compressor)
20	Harness, Wiring (Compressor)
21	Compressor
22	Grommet (3)
24	Locknut (3)
25	Gasket, Terminal Cover
28	Cover, Terminal
30	Wheel, Blower
31	Bend, Return Condenser (3) Evaporator (1)
32	Manifold, Suction
34	Bend, Return (3-Way)
35	Tube, Flow Divider
36	Clamp (2)
37	Tube, Flow Divider
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
40	Tube, Feeder
41	Anticipator
42	Clip, Anticipator
43	W11236646 Whirlpool Washer Assembly
44	Tube, Feeder
45	Tube, Discharge
46	Bolt, Compressor
47	Bend, Return Evaporator (4)
48	Bend, Return Evaporator (4)
49	Bend, Return Evaporator (11)
50	Distributor- 4 Circuit
51	Tube, Connect
52	Tube, Discharge Top (Includes Illus. 37,40,44)
