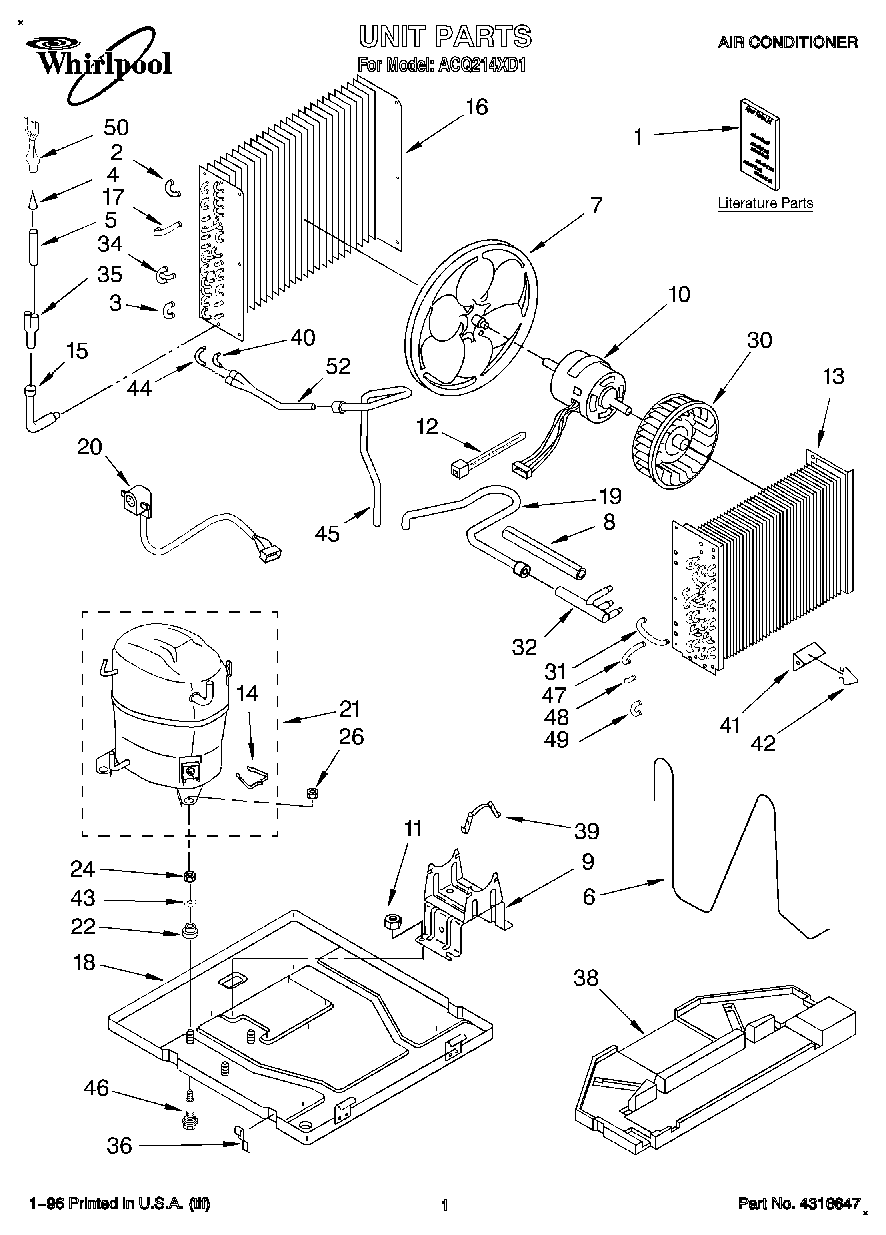

ACQ214XD1 01 – UNIT, LITERATURE

Products

Position	Product
1	Instructions, Installation
1	Owners Manual (Wiring Diagram)
1	Use And Care Guide
1	Tech Sheet
2	Bend, Return Condenser (10)
3	Bend, Return Condenser (4)
4	Strainer
5	Tube, Outlet (Includes Illus. 4)
6	Tube, Restrictor (4)
7	Blade, Fan (Condenser)
8	Seal, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Retainer, Terminal Cover
15	Tube, Connecting
16	Condenser
17	Tube, Riser (2)
18	Base (Includes 46)
19	Suction Tube Assembly
20	Harness, Wiring (Compressor)
21	Compressor
22	Grommet (3)
24	Locknut (3)
26	Locknut (3)
30	Wheel, Blower
31	Bend, Return Condenser (3) Evaporator (1)
32	Manifold, Suction
34	Bend, Return (3-Way)
35	Tube, Flow Divider
36	Clamp (2)
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
40	Tube, Feeder
41	Anticipator
42	Clip, Anticipator
43	W11236646 Whirlpool Washer Assembly
44	Tube, Feeder
45	Tube, Discharge
46	Bolt, Compressor
47	Bend, Return Evaporator (4)
48	Bend, Return Evaporator (4)
49	Bend, Return Evaporator (11)
50	Distributor- 4 Circuit
52	Tube, Discharge Top Assembly (Includes 51 & 52)
