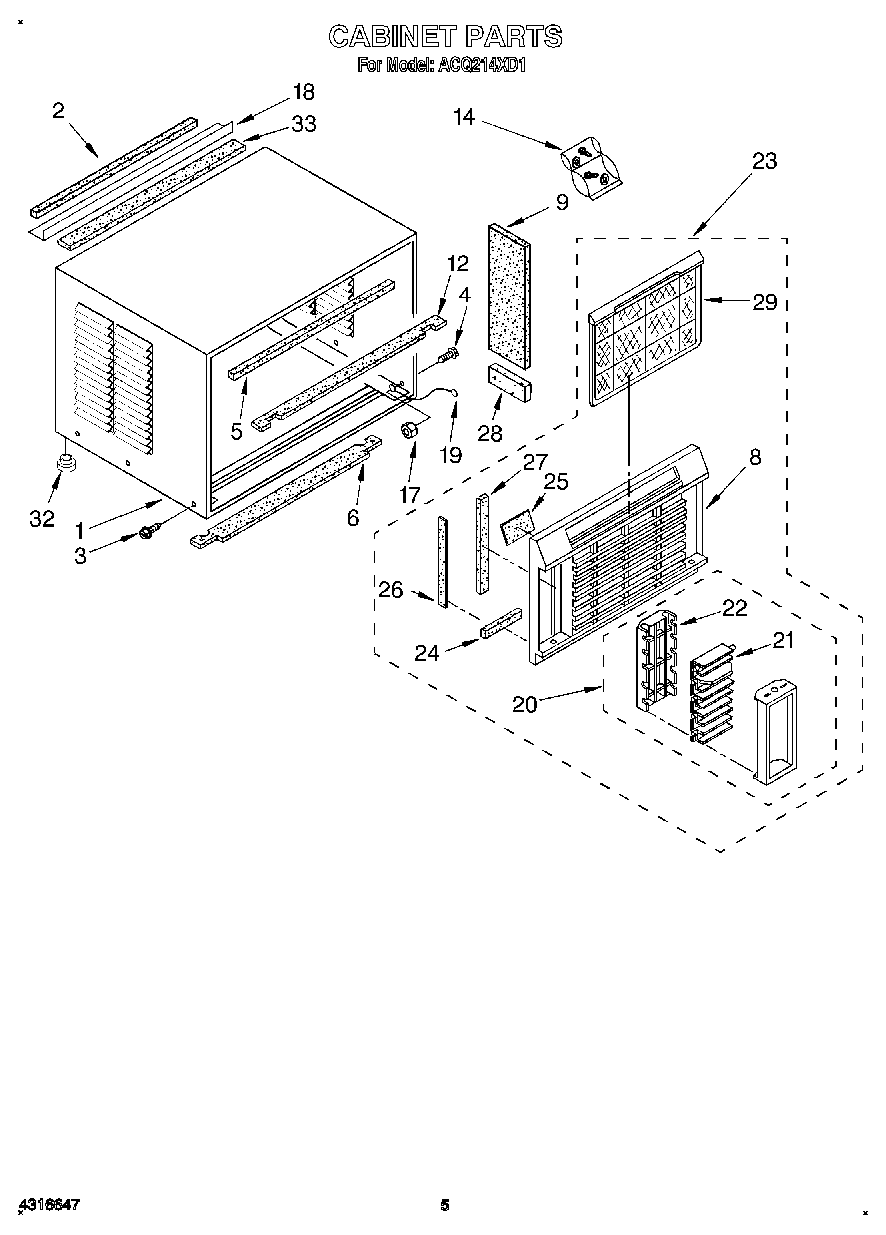

ACQ214XD1 03 – CABINET

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
3WP489069 Whirlpool Compactor Screw
4WP488234 Whirlpool Air Conditioner Screw
5Seal, Top
6Seal
8Cabinet Front
9Insulation, Cabinet Side (2)
12Seal
14Bag, Accessory
17WP486255 Whirlpool Air Conditioner Nut
18Angle, Top Mounting
19Wire, Ground
20Cartridge, Complete
21Horzontal Louver
22Ribs, Vertical
23Front, Complete
24Seal (Right Side)
24Seal (Left Side)
25Seal (Left Side)
25Seal (Right Side)
26Seal (2)
27WP854334 Whirlpool Air Conditioner Sealing Strip
28Insulation, Cabinet Side (2)
29Filter
32Cup, Condensate Drain
33Seal, Top Mounting Angle
