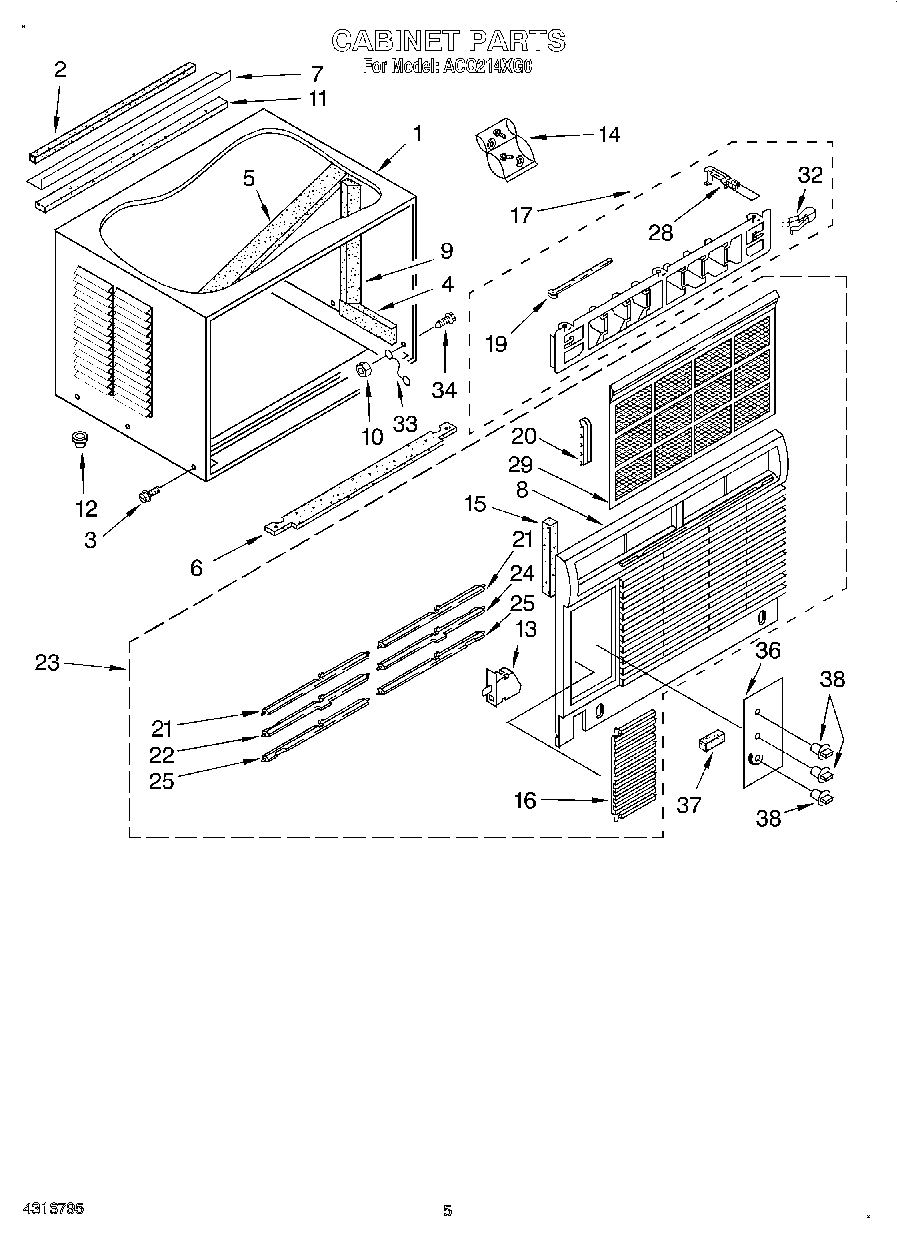

ACQ214XG0 03 – CABINET

Products

Position	Product
1	Cabinet (Includes Insulation)
2	Gasket, Meeting Rail
3	WP489069 Whirlpool Compactor Screw
4	Insulation, Cabinet Side (2)
5	Insulation, Cabinet (Top)
6	Seal
7	Angle, Top Mounting
8	Front, Cabinet
9	Insulation, Cabinet Side (2)
10	WP486255 Whirlpool Air Conditioner Nut
11	Seal, Top Mounting Angle
12	Cup, Condensate Drain
13	Monitor, Filter
14	Bag, Accessory
15	Seal, Front (3)
16	Door, Control
17	Louver, Verticle
19	Link, Vertical Louver (2)
20	Link, Louver (Horizontal)
21	Louver, Horizontal (8)
22	Louver, Horizontal (Handle Left)
23	Front, Complete
24	Louver, Horizontal (Handle Right)
25	Louver, Horizontal (Notch Right)
25	Louver, Horizontal (Notch Left)
28	Louver, Actuator
29	Filter
32	Spring, Detent
33	Wire, Ground
34	WP488234 Whirlpool Air Conditioner Screw
36	Plate, Escutcheon
37	Spacer, Escutcheon Plate (3)
38	Knob (3)
