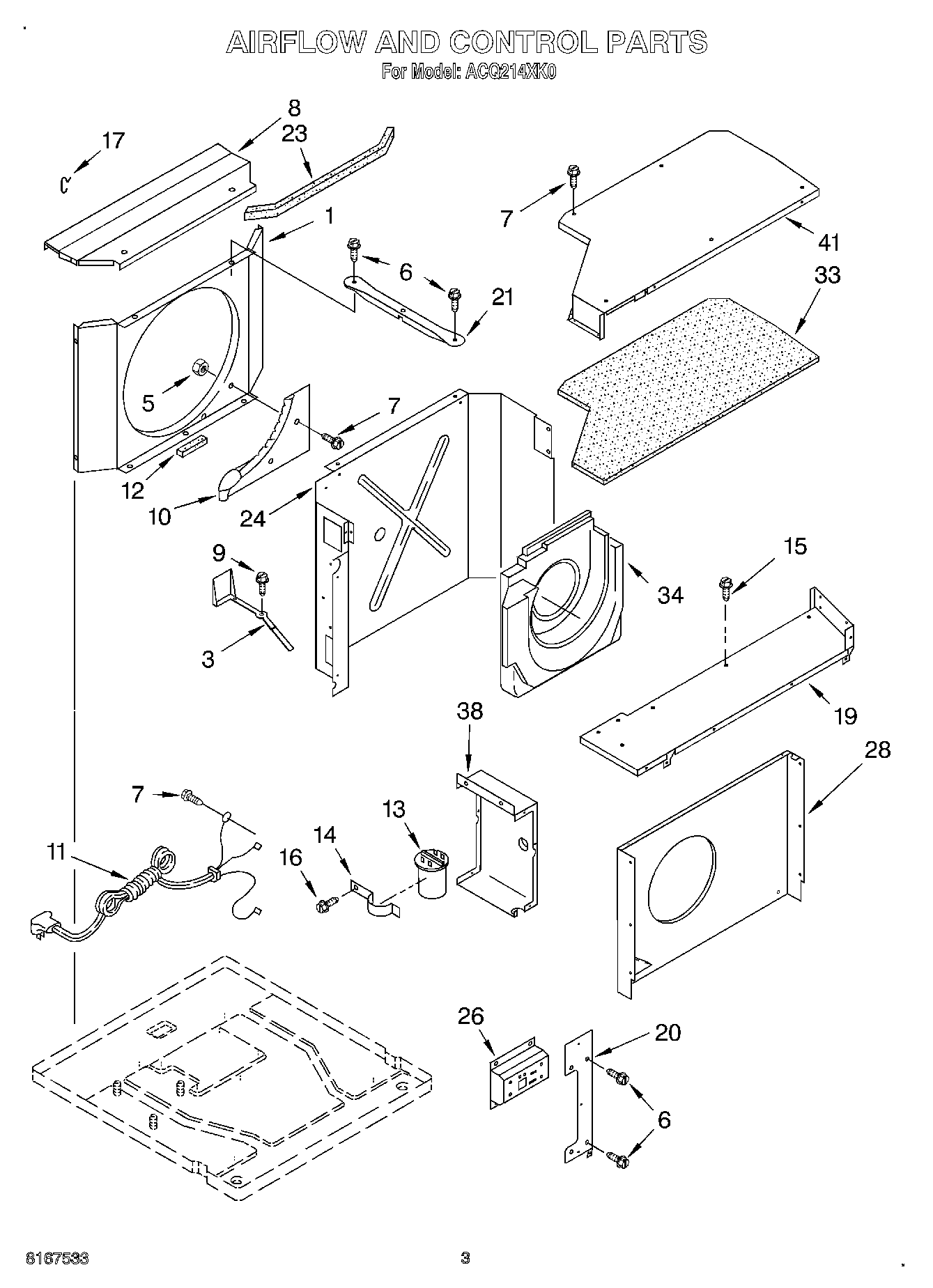

ACQ214XK0 02 – AIR FLOW AND CONTROL

ACQ214XK0 02 – AIR FLOW AND CONTROL

Written by

in

ACQ214XK0 02 – AIR FLOW AND CONTROL

Products

PositionProduct
1Shroud, Condenser
3Door, Exhaust
5WP488130 Whirlpool Air Conditioner Nut
6WP308685 Whirlpool Microwave Screw
8Top, Condenser
9Screw, 8-18 x .437
10Cup, Condensate
11Cord, Appliance
12Seal, Condensate Cup
13Capacitor
14WP1160674 Whirlpool Bracket
16WP489069 Whirlpool Compactor Screw
17Clip, Shroud (2)
19Top, Evaporator Shroud
20Panel, Control
21Support, Unit (2)
23Seal, Shroud
24Dividing Wall
26Control, Electronic
28Shroud Assembly, Evaporator
33Insulation, Top Cover
34Housing, Air
38Control Box (R.S.)
41Cover, Top
