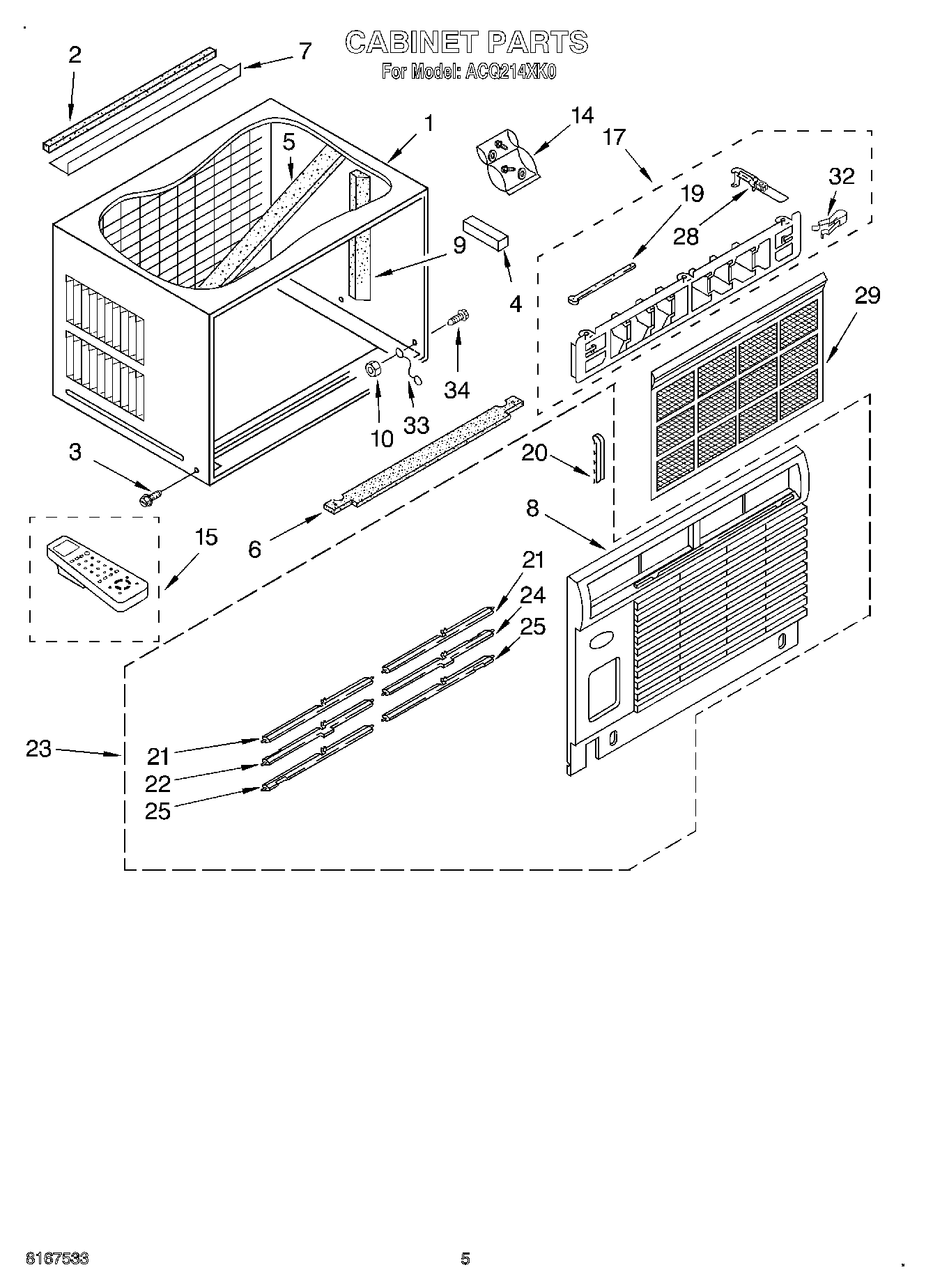

ACQ214XK0 03 – CABINET

Products

Position	Product
1	Cabinet (Includes Insulation)
2	Gasket, Meeting Rail
3	WP489069 Whirlpool Compactor Screw
4	Seal, Front (3)
5	Insulation, Top (Cabinet)
6	Seal
7	Angle (Top)
8	Front, Cabinet
9	Insulation, Cabinet Side (2)
10	WP486255 Whirlpool Air Conditioner Nut
14	Bag, Accessory
15	Control, Remote
17	Vertical, Louver
19	Link, Verticle Louver (2)
20	Link, Louver (Horizontal)
21	Louver, Horizontal (8)
22	Louver, Horizontal W/ Handle, Left
23	Front, Complete
24	Louver, Horizontal W/ Handle, Right
25	Louver, Horizontal (Notch Right)
25	Louver, Horizontal (Notch Left)
28	Actuator, Louver
29	Filter
32	Spring, Detent
33	Wire, Ground
34	WP488234 Whirlpool Air Conditioner Screw
