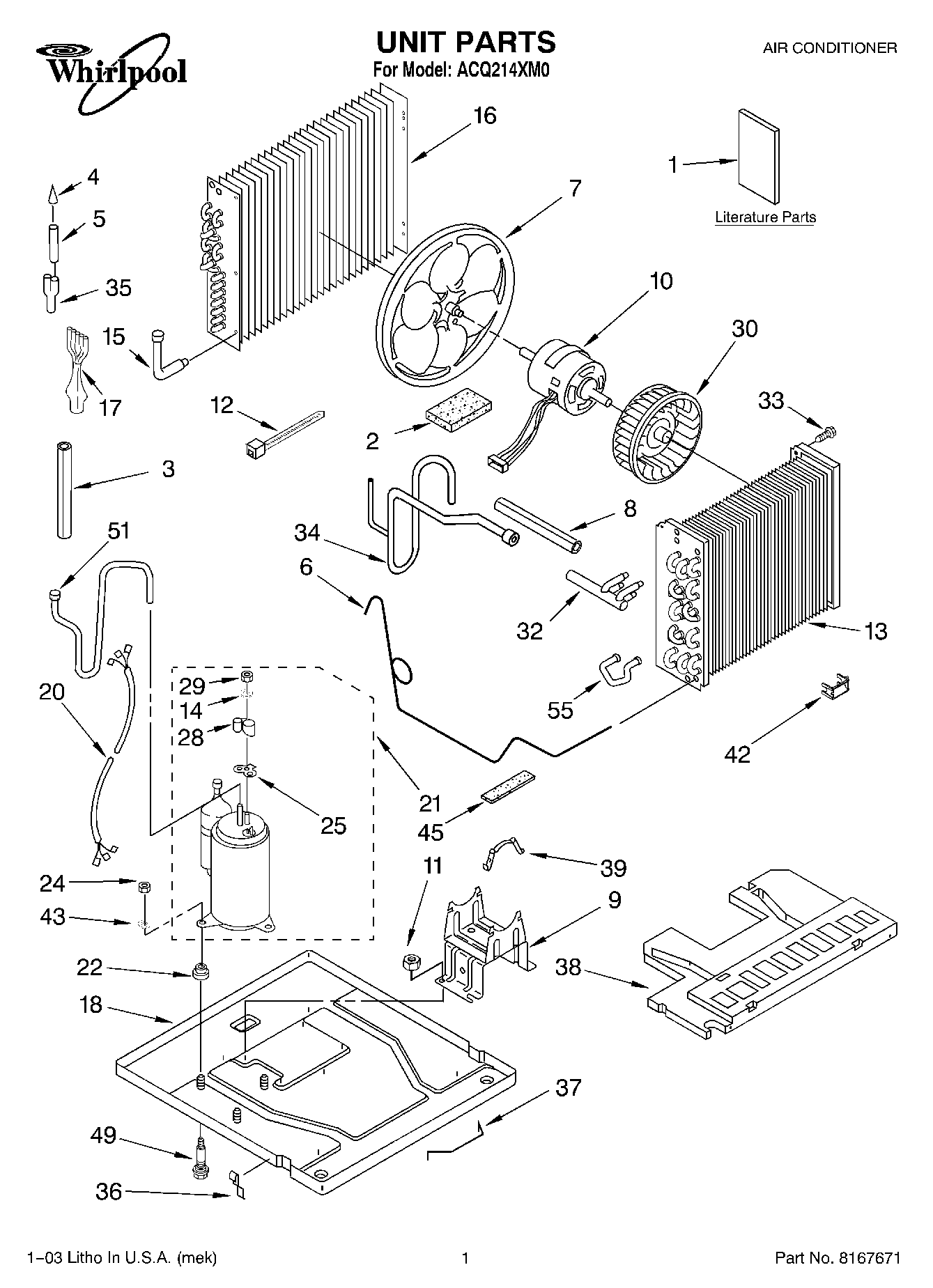

ACQ214XM0 01 – UNIT PARTS

Products

Position	Product
1	Literature Parts (Use & Care Guide)
1	Energy Guide
1	LITERATURE PARTS (Wiring Diagram)
2	Putty, Sound Dampener
3	WPL 1162344
4	Strainer
5	Tube, Outlet (Includes Illus. 4)
6	Tube, Restrictor (4)
7	Blade, Fan (Condenser)
8	Seal, Suction Tube Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Gasket
15	Tube, Connect
16	Condenser
17	Distributor
18	Base
20	Harness, Wiring (Compressor)
21	Compressor
22	WP950021 Whirlpool Grommet
24	Locknut (3)
25	Gasket, Terminal Cover
28	Cover, Terminal
29	W10833054 Whirlpool Air Conditioner Mounting Nut
30	Wheel, Blower
32	Manifold, Suction
33	WP489069 Whirlpool Compactor Screw
34	Tube, Suction
35	Tube, Flow Divider
36	Clamp (2)
37	WPL 647971
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
42	Clip, Anticipator
43	W11236646 Whirlpool Washer Assembly
45	Seal, Restrictor Tube
49	Bolt, Compressor
51	Tube, Discharge
55	Tube, Crossover
55	REFRIGERANT CHARGE 30.00 oz.
