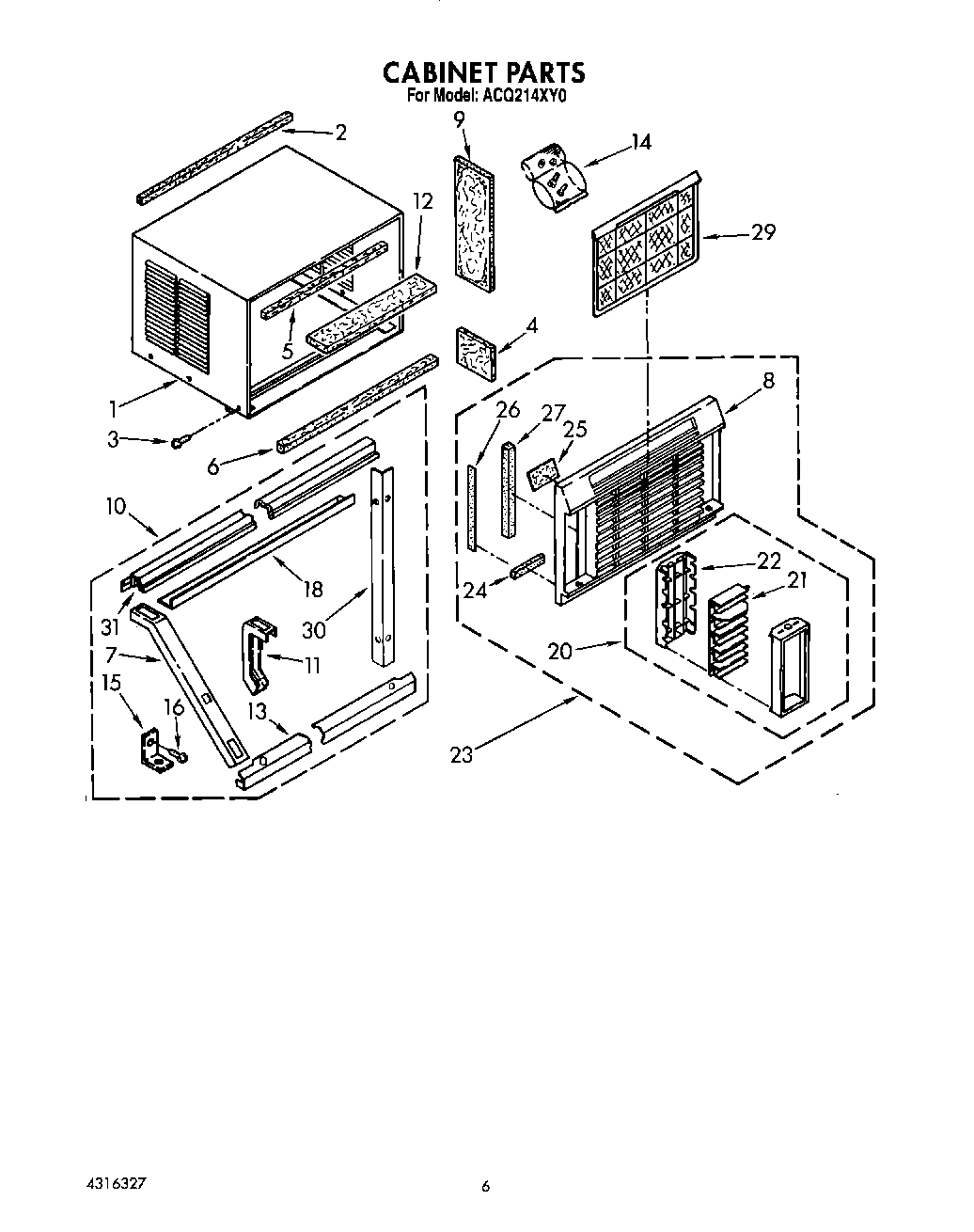

ACQ214XY0 04 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	WP489069 Whirlpool Compactor Screw
4	Insulation, Cabinet Side (2)
5	Seal, Top
6	Seal
7	Support, Cabinet (2)
8	Cabinet Front
9	Insulation, Cabinet Side (2)
10	Kit, Standard Installation
11	Support, Retainer (2)
12	Strip, Seal
13	Bracket, Support
14	Bag, Accessory
15	Bracket
18	Angle, Top Mounting
20	Cartridge, Complete
21	Horzontal Louver
22	Ribs, Vertical
23	Front, Complete
24	Seal (Right Side)
25	Seal (Right Side)
25	Seal (Left Side)
26	WP854334 Whirlpool Air Conditioner Sealing Strip
27	Seal (Left Side)
29	Filter
30	Angle (2)
31	Gasket, Sash
