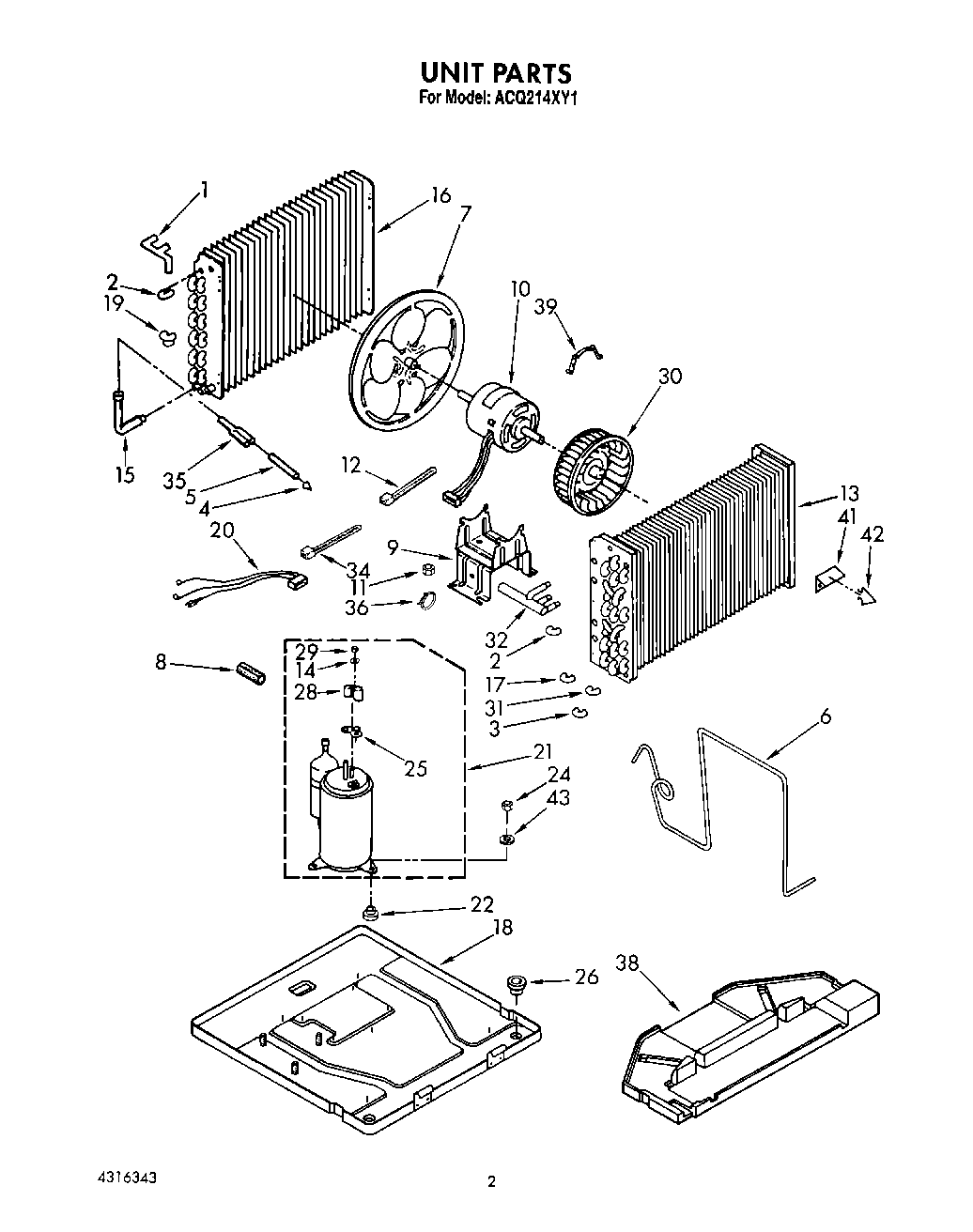

ACQ214XY1 02 – UNIT, LIT/OPTIONAL

Products

Position	Product
1	Manifold, Discharge
2	Bend, Return Condenser (10)
3	Bend, Return Condenser (4)
4	Strainer
5	Tube, Wet Loop Connect
6	Tube, Restrictor (3)
7	Blade, Fan (Condenser)
8	Seal, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
13	Evaporator
14	Gasket, Nut
15	Tube, Connecting
16	Condenser
17	Tube, Riser (2)
18	Base
19	Bend, Return (3-Way)
20	Harness, Wiring (Compressor Service)
21	Compressor
22	WP950021 Whirlpool Grommet
24	Locknut (3)
25	WP950035 Whirlpool Cover Gasket
26	Cup, Condensate Drain
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
30	Wheel, Blower (Evaporator)
31	Bend, Return Condenser (1)
32	Manifold, Suction
34	WPW10339879 Whirlpool Wire Tie
35	Tube, Flow Divider
36	Clamp (2)
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
41	Anticipator
42	Clip, Anticipator
43	Owners Manual (Wiring Diagram)
43	Buy Guide
43	Tech Sheet
43	Instructions, Installation
43	Use And Care Guide
43	W11236646 Whirlpool Washer Assembly
43	Literature Parts (List, Repair Parts)
