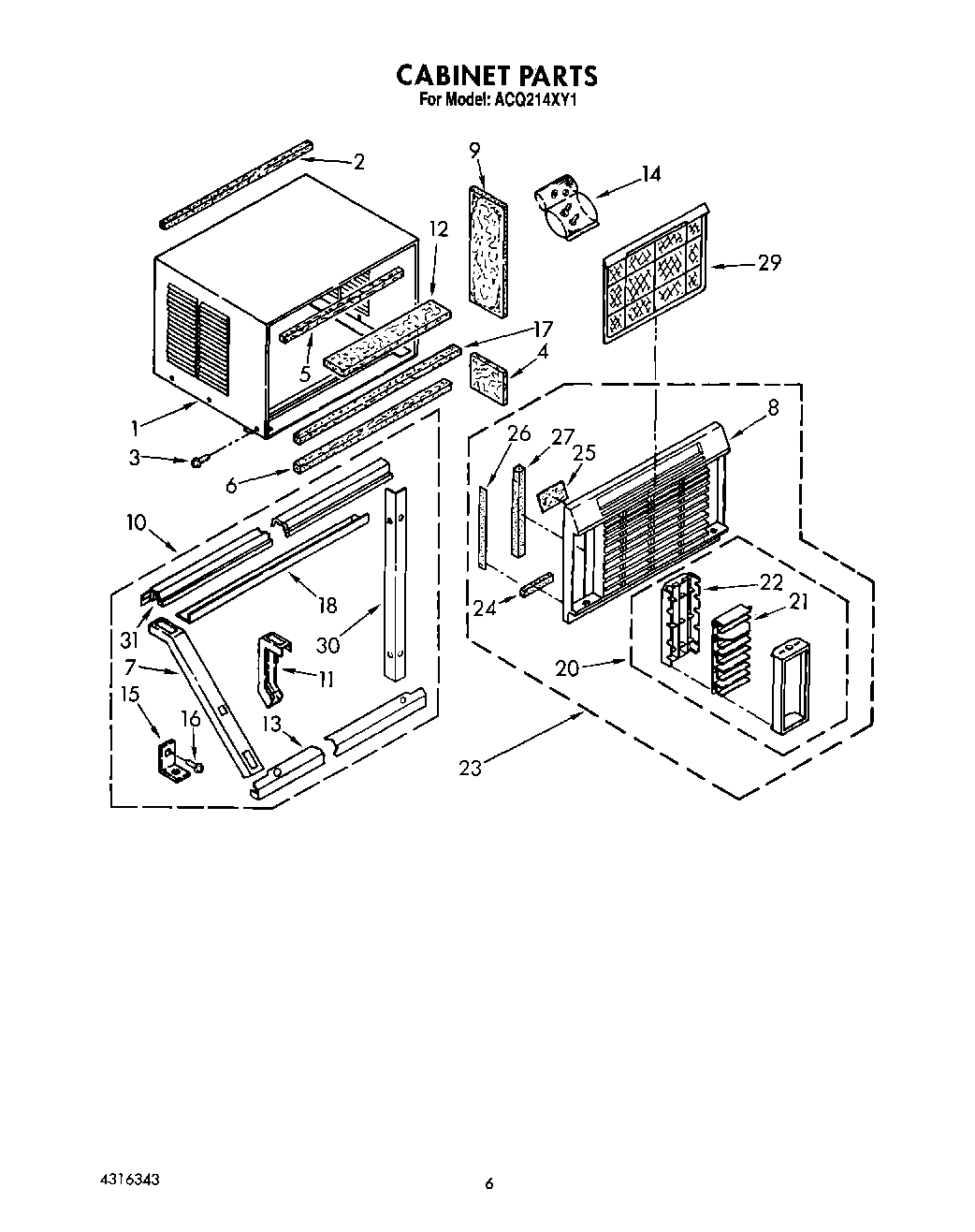

| 1 | Cabinet |
| 2 | Gasket, Meeting Rail |
| 3 | WP489069 Whirlpool Compactor Screw |
| 4 | Insulation, Cabinet Side (2) |
| 5 | Seal, Top |
| 6 | Seal |
| 7 | Support, Cabinet (2) |
| 8 | Cabinet Front |
| 9 | Insulation, Cabinet Side (2) |
| 10 | Kit, Standard Installation |
| 11 | Support, Retainer (2) |
| 12 | Strip, Seal |
| 13 | Bracket, Support |
| 14 | Bag, Accessory |
| 15 | Bracket |
| 17 | Seal |
| 18 | Angle, Top Mounting |
| 20 | Cartridge, Complete |
| 21 | Horzontal Louver |
| 22 | Ribs, Vertical |
| 23 | Front, Complete |
| 24 | Seal (Right Side) |
| 25 | Seal (Right Side) |
| 25 | Seal (Left Side) |
| 25 | Seal (2) |
| 26 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 27 | Seal (Left Side) |
| 29 | Filter |
| 30 | Angle (2) |
| 31 | Gasket, Sash |
