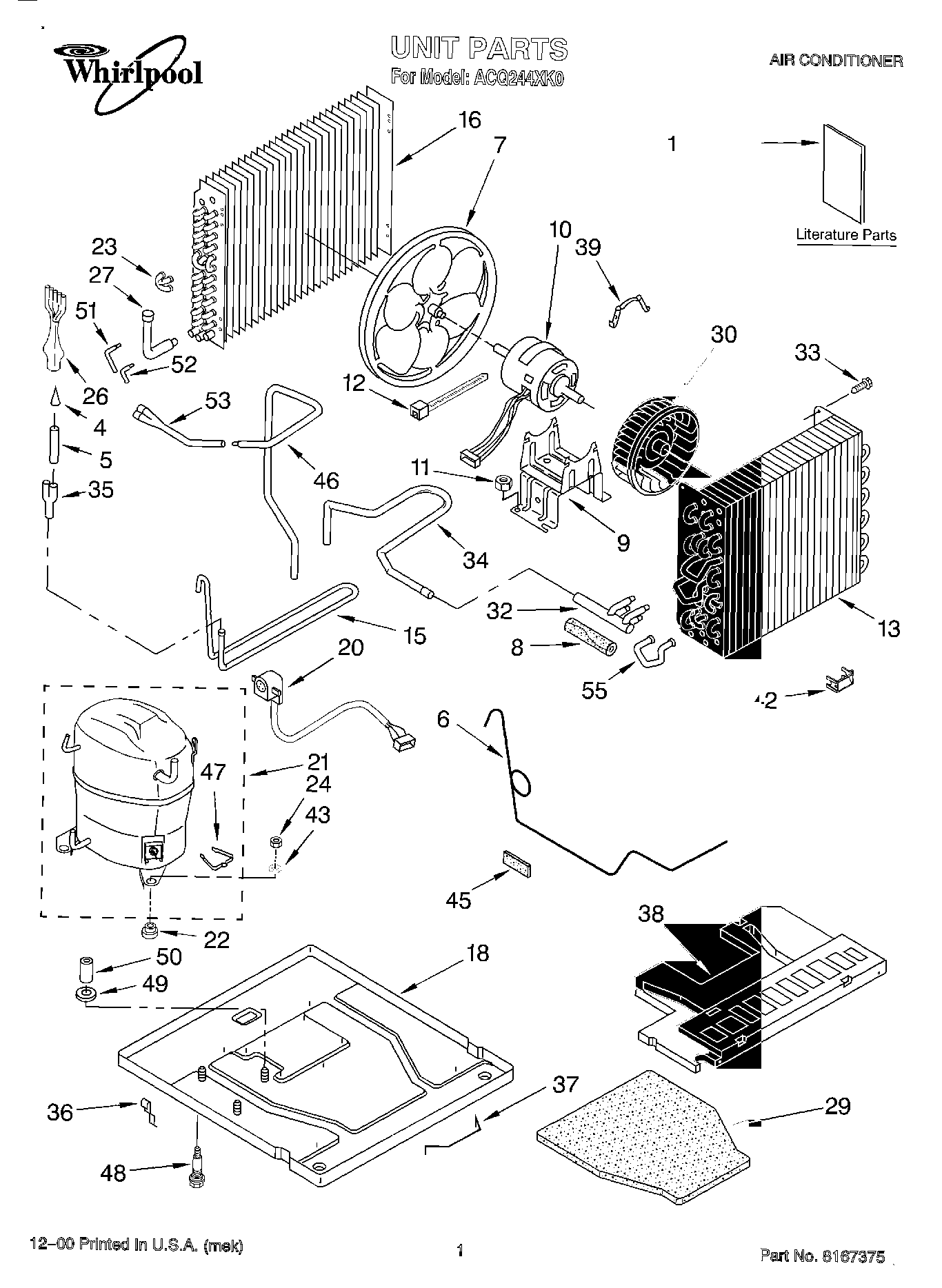

ACQ244XK0 01 – UNIT, LITERATURE

Products

Position	Product
1	LITERATURE PARTS (Wiring Diagram)
1	Energy Guide
1	Use & Care Guide
4	Strainer
5	Tube, Outlet (Includes Illus. 4)
6	Tube, Restrictor (4)
7	Blade, Fan (Condenser)
8	Seal, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
15	Wetloop
16	Condenser
18	Base
20	Harness, Wiring Compressor
21	Compressor
22	Grommet (3)
23	Bend, Return (3-Way)
24	Locknut (3)
26	Distributor
27	Tube, Wetloop Connect
29	Insulation, Base (Bottom)
30	Wheel, Blower (Evaporator)
32	Manifold, Suction
33	WP489069 Whirlpool Compactor Screw
34	Tube, Suction
35	Tube, Flow Divider
36	Clamp (2)
37	WPL 647971
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
42	Clip, Thermistor
43	W11236646 Whirlpool Washer Assembly
45	Seal, Restrictor Tube
46	Tube, Discharge
47	Retainer, Terminal Cover
48	Bolt, Compressor
49	Spacer, Grommet
50	Sleeve, Mounting
51	Tube, Feeder
52	Tube, Feeder
53	Tube, Discharge Top Assembly (Includes 51 & 52)
55	Bend, Return (Evaporator – 2)
