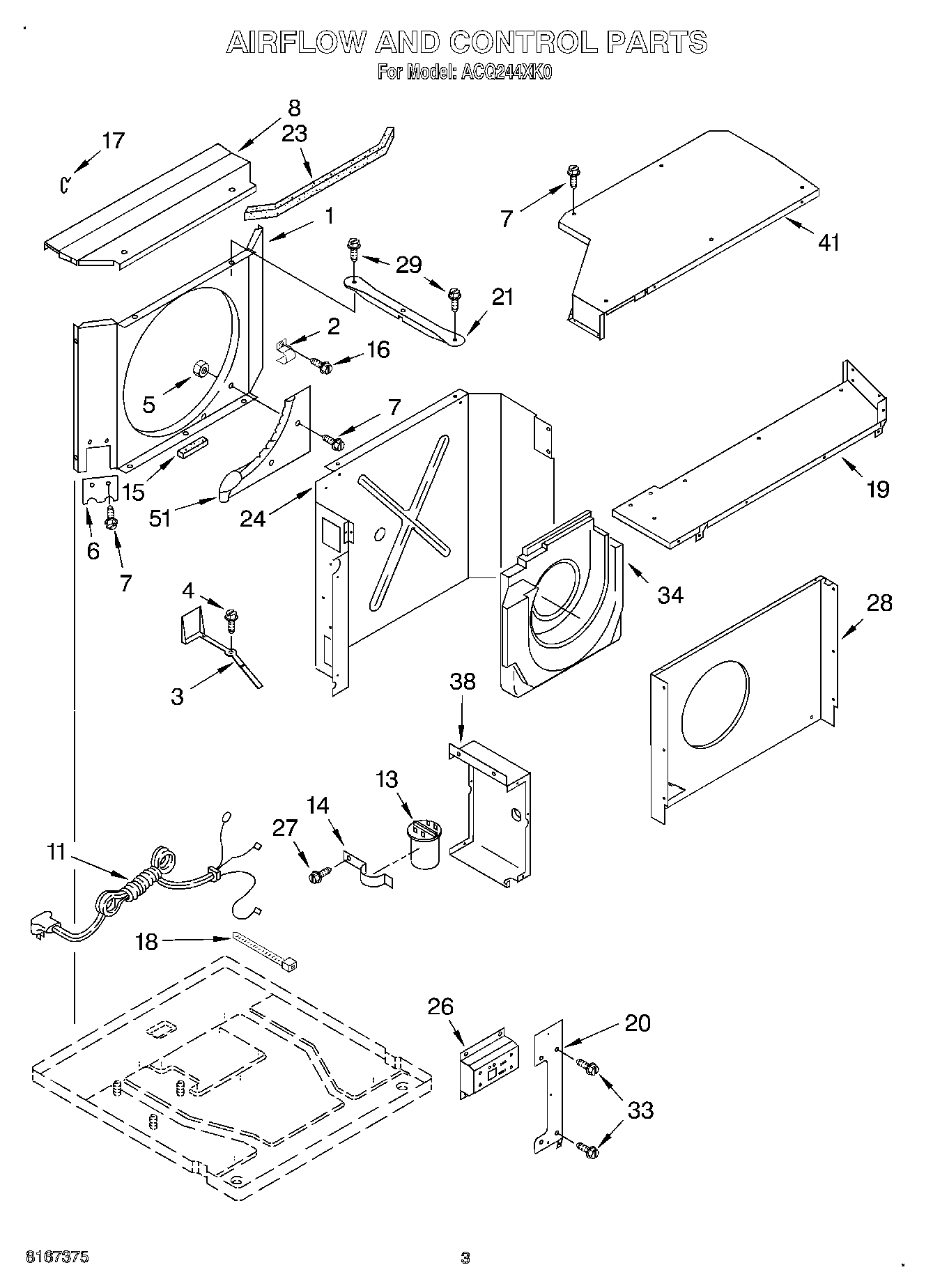

ACQ244XK0 02 – AIR FLOW AND CONTROL

ACQ244XK0 02 – AIR FLOW AND CONTROL

Written by

in

ACQ244XK0 02 – AIR FLOW AND CONTROL

Products

PositionProduct
1Shroud, Condenser
2Clip, Wet Loop
3Door, Exhaust
4Screw, 8-18 x .437
5WP488130 Whirlpool Air Conditioner Nut
6Clip, Nylon
8Top, Condenser
11Cord, Appliance
13Capacitor
14Bracket, Capacitor
15Seal, Condensate Cup
17Clip, Shroud (2)
18WPW10339879 Whirlpool Wire Tie
19Top, Evaporator Shroud
20Panel, Control
21Support, Unit (2)
23Seal, Shroud
24Dividing Wall
26Control, Electronic
27WP489069 Whirlpool Compactor Screw
28Shroud Assembly, Evaporator
29WP308685 Whirlpool Microwave Screw
33Screw, 8 x 3/8
34Housing, Air
38Control Box (R.S.)
41Cover, Top
51Cup, Condensate
