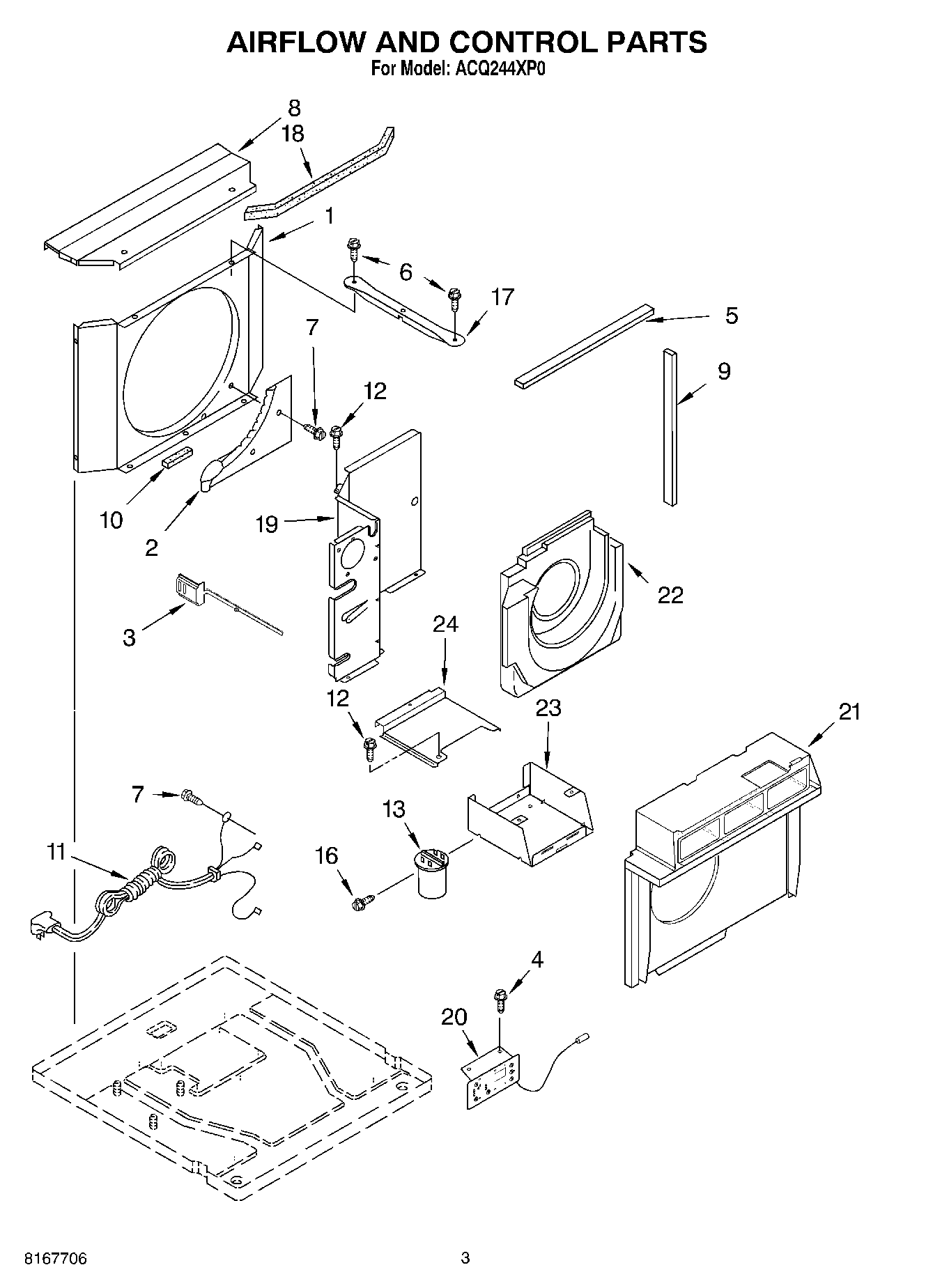

ACQ244XP0 02 – AIRFLOW AND CONTROL PARTS

Products

PositionProduct
1Shroud, Condenser
2Cup, Condensate
3Door, Exhaust
5Seal (Top)
6WP308685 Whirlpool Microwave Screw
7WP489069 Whirlpool Compactor Screw
8Top, Condenser
9Seal (Side)
10Seal, Condensate Cup
11Cord, Appliance
12Screw, 8 x 3/8
13CAPACITOR
16Screw 8-18 x .295
17Support, Unit (2)
18Seal, Shroud
19Dividing Wall
20Control, Electronic
21Shroud Assembly, Evaporator
22Housing, Air
23Control Box
24Cover, Control Box
