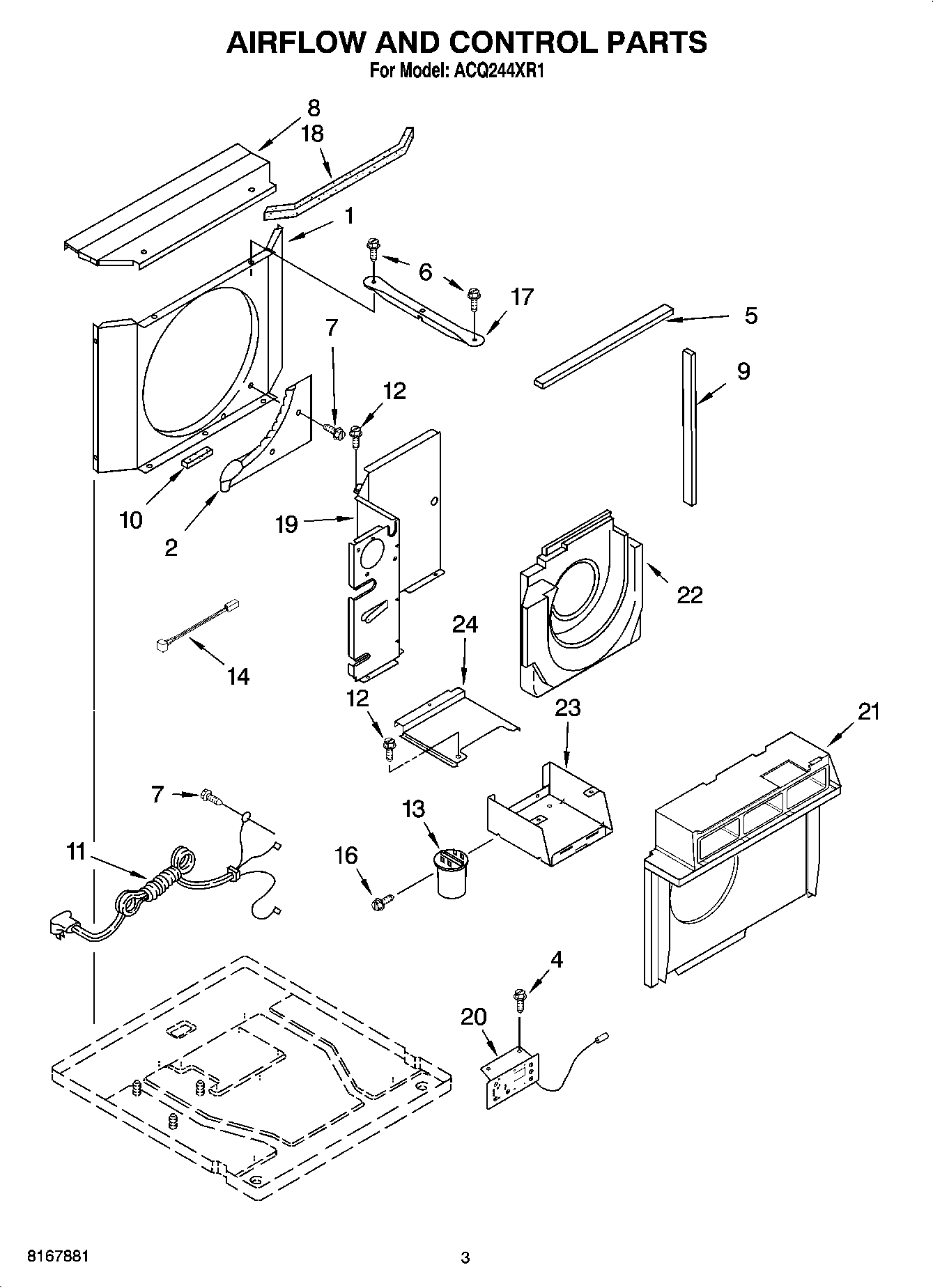

ACQ244XR1 02 – AIRFLOW AND CONTROL PARTS

Products

Position	Product
1	Shroud, Condenser
2	Cup, Condensate
4	Screw 8-18 x .295
5	Seal (Top)
6	WP308685 Whirlpool Microwave Screw
7	WP489069 Whirlpool Compactor Screw
8	Top, Condenser
9	Seal (Side)
10	Seal, Condensate Cup
11	Cord, Appliance
12	Screw, 8 x 3/8
13	Capacitor
14	Thermistor
16	WP489478 Whirlpool Refrigerator Screw
17	Support, Unit (2)
18	Seal, Shroud
19	Dividing Wall
20	Control, Electronic
21	Shroud Assembly, Evaporator
22	Housing, Air
23	Control Box
24	Cover, Control Box
