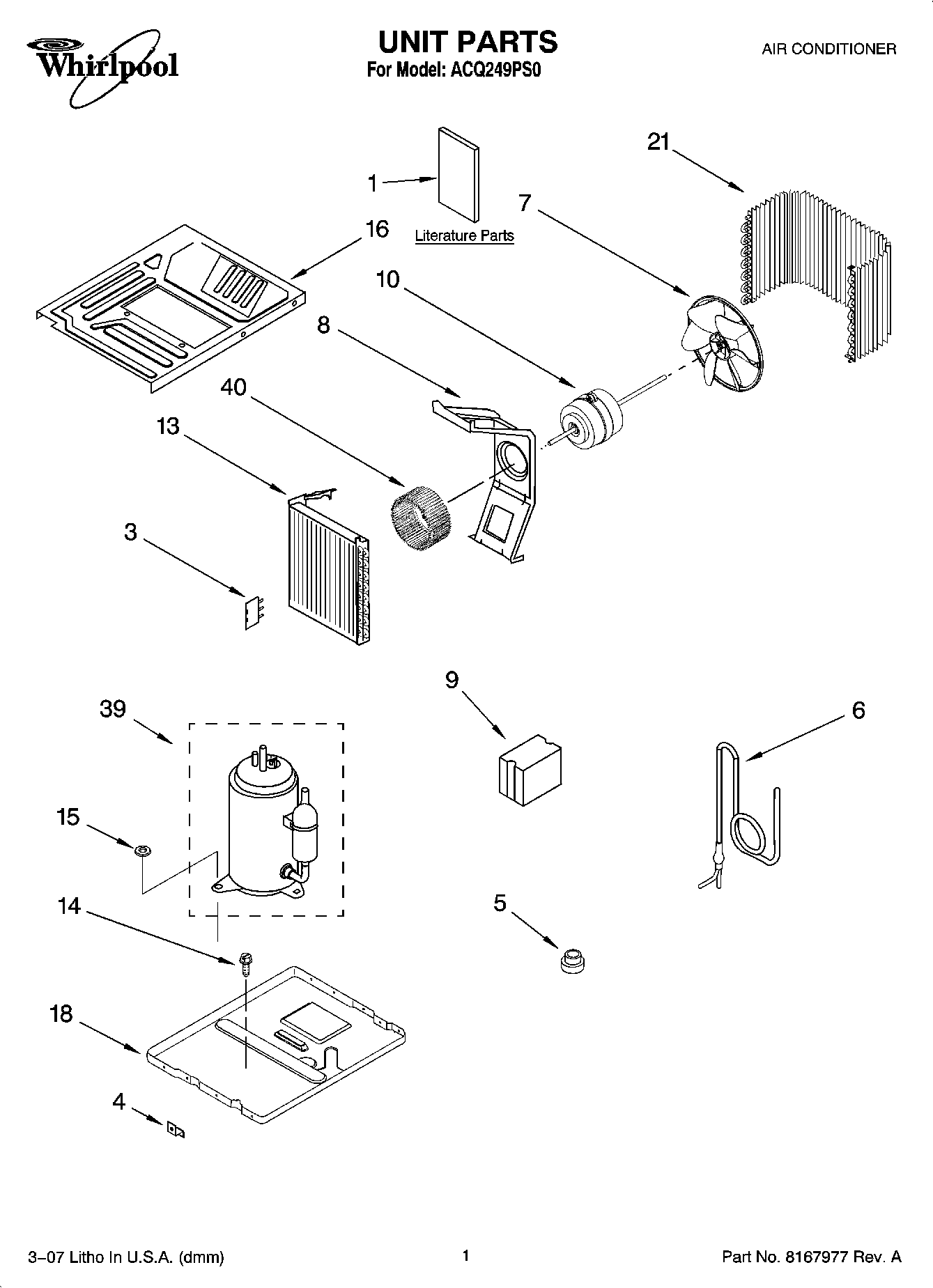

ACQ249PS0 01 – UNIT PARTS

Products

Position	Product
1	Energy Guide
1	Use & Care Guide
1	Wiring Diagram
3	Support, Tube Sensor
4	CLIP
5	Drain Plug
6	Tube, Restrictor
7	Blade, Fan
8	Bracket, Fan Motor
9	Relay
10	Motor, Fan
13	EVAPORATOR
14	W11245710 Whirlpool Refrigerator Screw
15	Gasket
16	Cover, Evaporator
18	BASE
21	Screw
39	Compressor Assy. With Overload
40	Wheel, Blower
40	REFRIGERANT CHARGE 33.50 oz.
