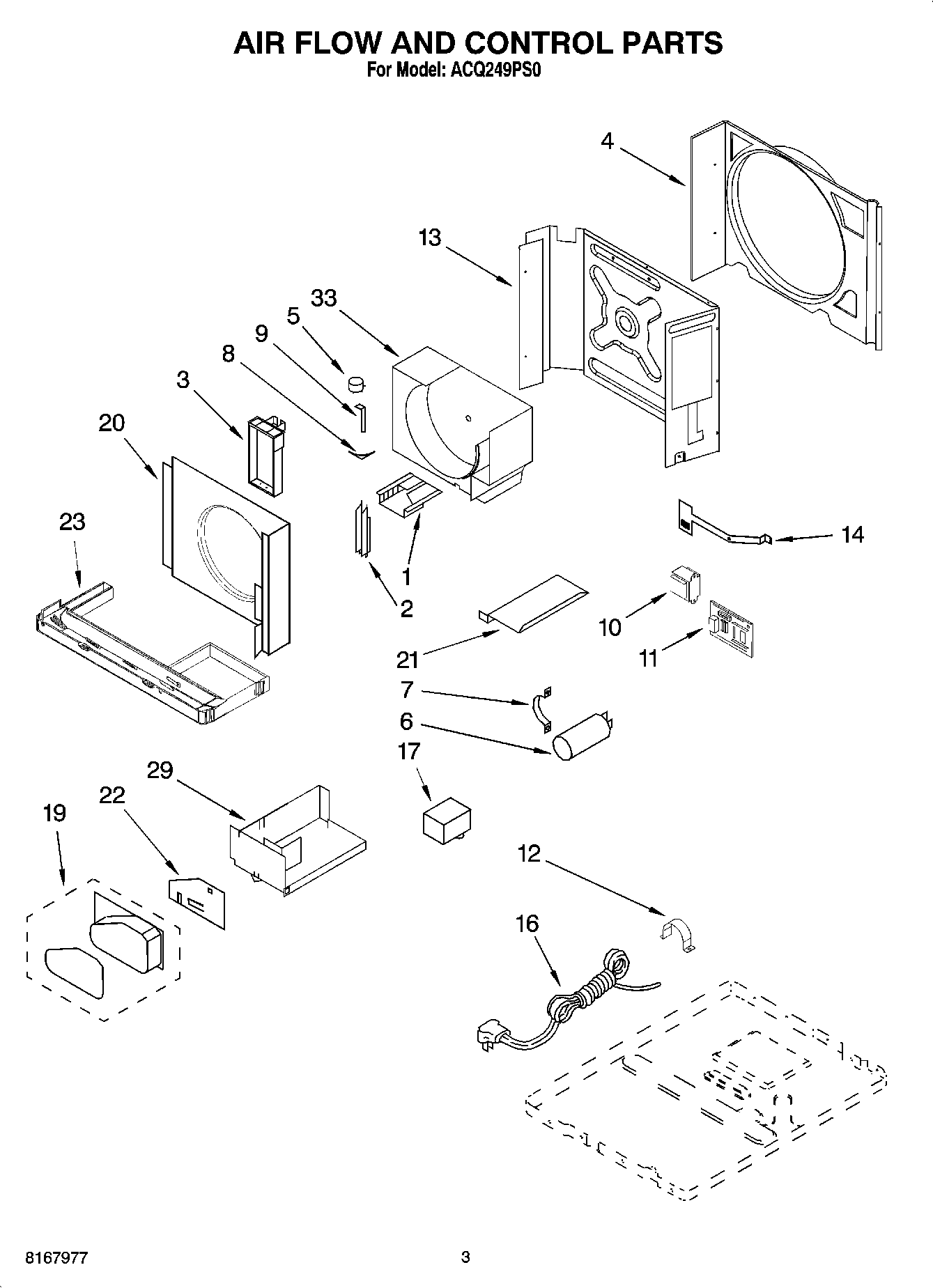

ACQ249PS0 02 – AIR FLOW AND CONTROL PARTS

ACQ249PS0 02 – AIR FLOW AND CONTROL PARTS

Written by

in

ACQ249PS0 02 – AIR FLOW AND CONTROL PARTS

Products

Position	Product
1	Housing, Air
2	Louver
3	Cartridge, Louver
4	Shroud, Condenser
5	Motor, Louver
6	Capacitor, Running
7	Bracket, Capacitor
8	Linkage, Louver
9	Linkage, Louver
10	Transformer
11	Microcomputer
12	Wire Clamp
13	Wall, Dividing
14	Door, Exhaust
16	Cord, Appliance
17	CAPACITOR
19	Escutcheon
20	Shroud, Condenser
21	Cover, Air Duct
22	Display Board
23	Pan, Evaporator
29	Box, Control
33	Housing, Air
