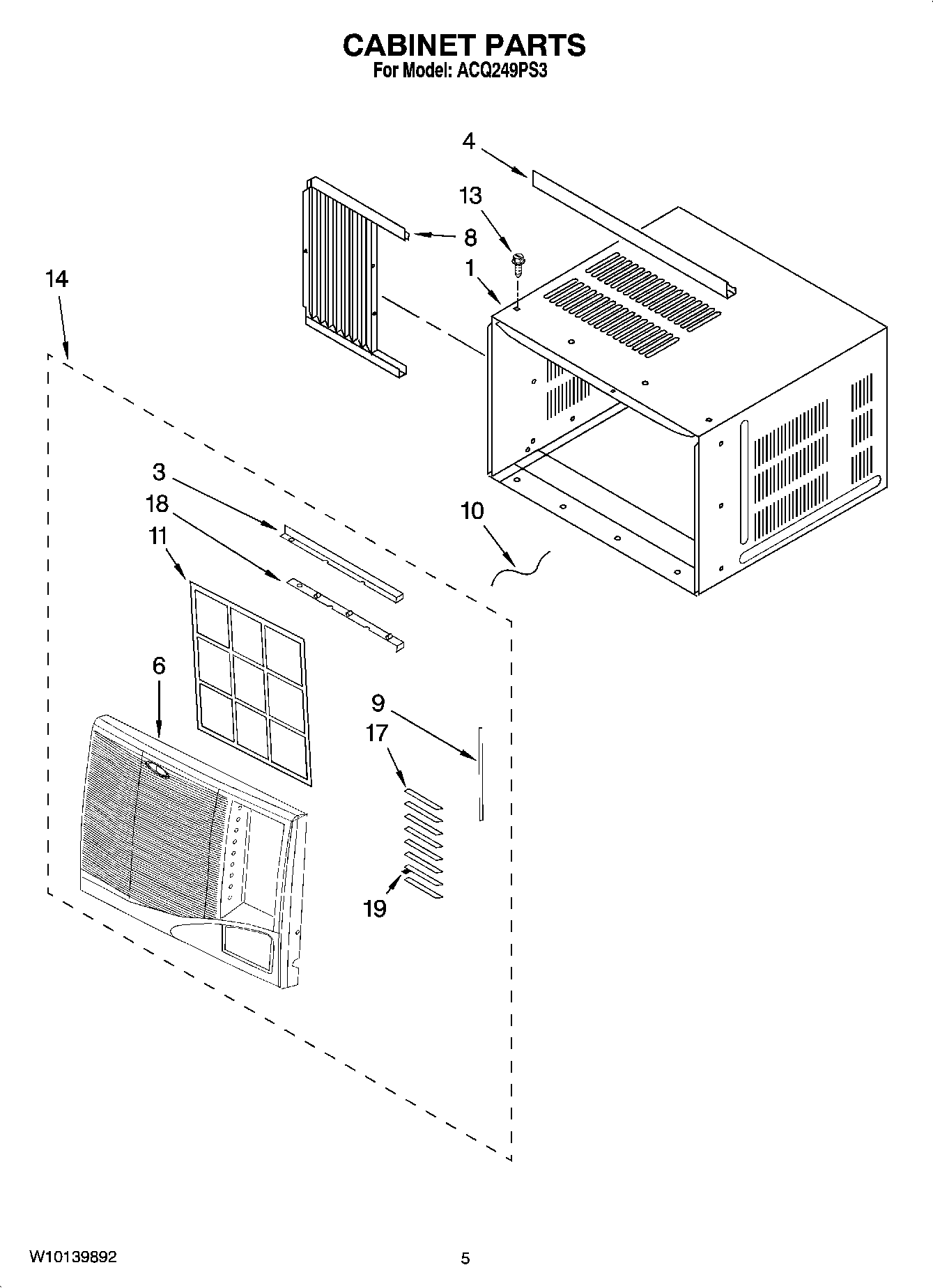

ACQ249PS3 03 – CABINET PARTS

Written by

Products

Position	Product
1	CABINET
3	Membrane
4	Channel, Top
8	Curtain Assembly Right & Left Side
9	Guide, Linkage
10	Ground Wire
11	Filter
13	Screw (8)
14	Front, Cabinet Assembly
17	Guide, Louver
18	Guide, Filter (Up)
18	Guide, Filter (Down)
19	Guide, Louver
