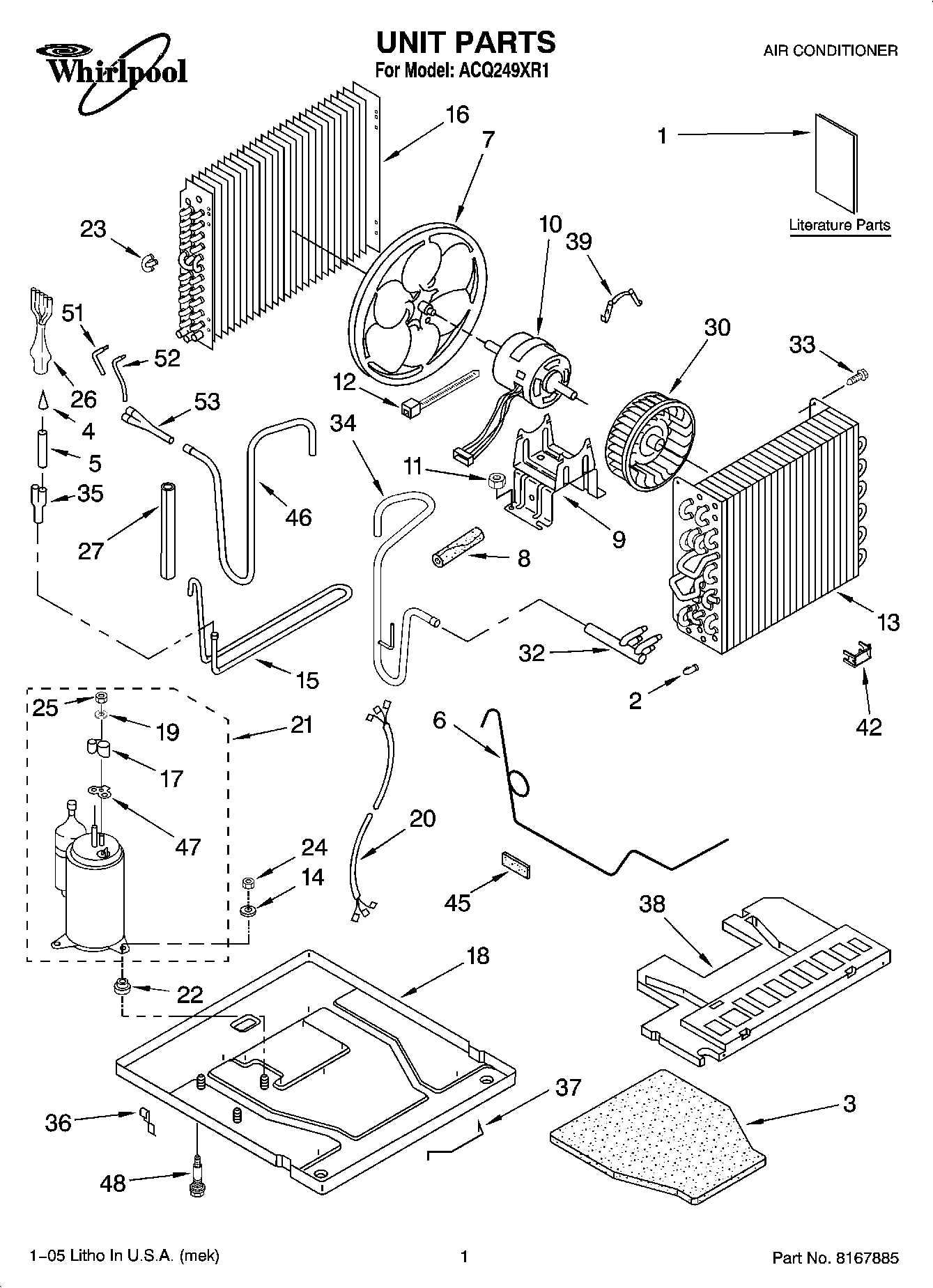

ACQ249XR1 01 – UNIT PARTS

Products

Position	Product
1	Use & Care Guide
1	Energy Guide
1	Wiring Diagram
2	Bend, Return Evaporator (11)
3	Insulation, Base (Bottom)
4	Strainer
5	Tube, Outlet (Includes Illus. 4)
6	Tube, Restrictor
7	Blade, Fan (Condenser)
8	Seal, Suction Tube Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	W11236646 Whirlpool Washer Assembly
15	Wet, Loop
16	CONDENSER
17	Cover, Terminal
18	Base
19	Gasket
20	Wiring Harness, Compressor
21	Compressor
22	Grommet (3)
23	Bend, Return (3-Way)
24	Locknut (3)
25	W10833054 Whirlpool Air Conditioner Mounting Nut
26	Distributor
27	WPL 1162344
30	Wheel, Blower (Evaporator)
32	Manifold, Suction
33	WP489069 Whirlpool Compactor Screw
34	Tube, Suction
35	Tube, Flow Divider
36	Clamp (2)
37	WPL 647971
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
42	Clip, Anticipator
45	Seal, Restrictor Tube
46	Tube, Discharge
47	Gasket, Terminal Cover
48	Bolt, Compressor
51	Tube, Feeder
52	Tube, Feeder
53	Tube, Flow Divider
53	REFRIGERANT CHARGE 54.00 oz.
