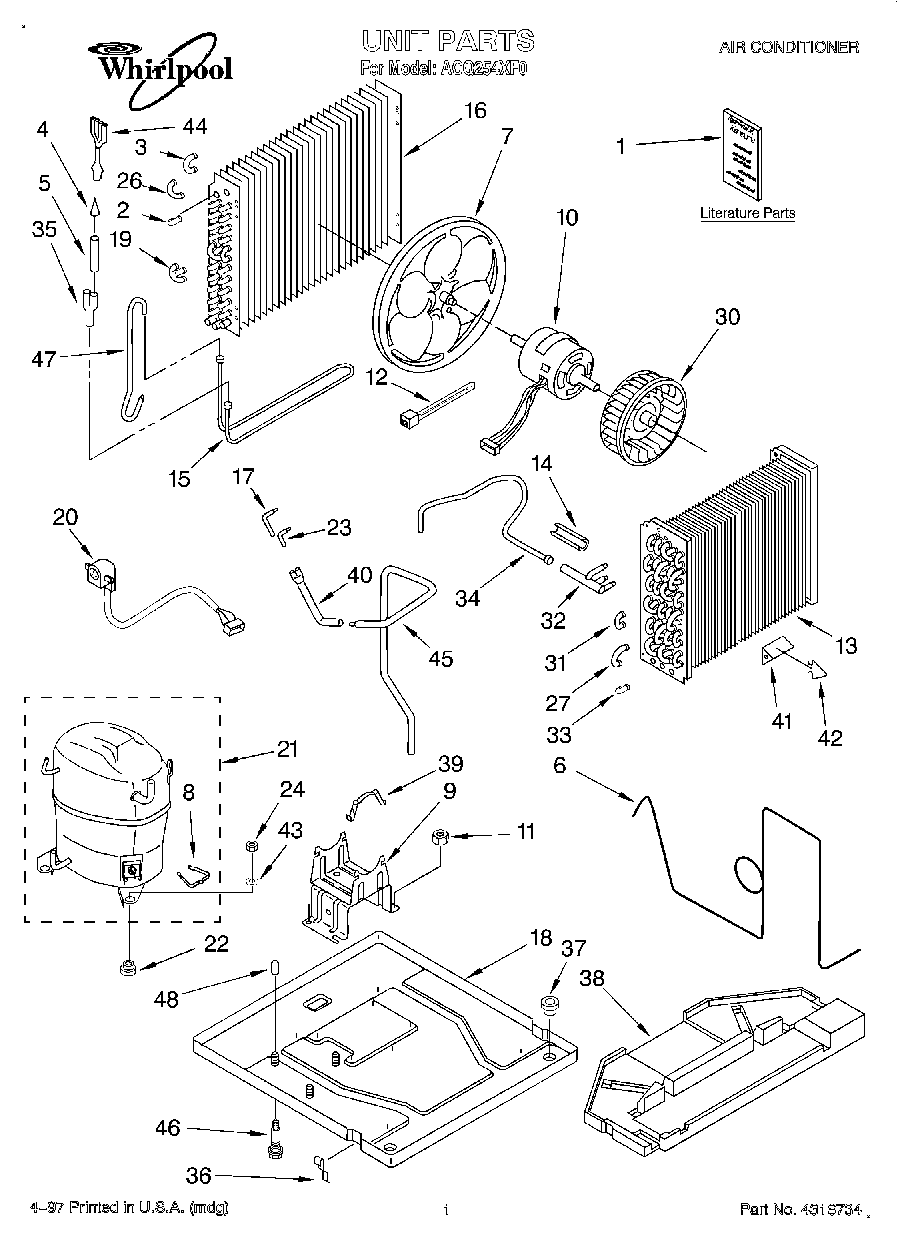

ACQ254XF0 01 – UNIT, LITERATURE

Products

Position	Product
1	Tech Sheet
1	LITERATURE PARTS
1	Owners Manual (English)
1	Owners Manual (Wiring Diagram)
1	Owners Manual (Spanish)
2	Bend, Return Condenser (10)
3	Bend, Return Condenser (4)
4	Strainer
5	Tube, Outlet (Includes Illus. 4)
6	Tube, Restrictor (5)
7	Blade, Fan (Condenser)
8	Retainer, Terminal Cover
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Seal, Suction Tube
15	Tube, Wet Loop
16	Condenser
17	Tube, Feeder
18	Base (Includes 46)
19	Bend, Return (3-Way)
20	Harness, Wiring (Compressor)
21	Compressor
22	Grommet (3)
23	Tube, Feeder
24	Locknut (3)
26	Tube, Riser (2)
27	Bend, Return Evaporator (4)
30	Wheel, Blower (Evaporator)
31	Bend, Return Evaporator (11)
32	Manifold, Suction
33	Bend, Return Evaporator (4)
34	Suction Tube Assembly
35	Tube, Flow Divider
36	Clamp (2)
37	Cup, Condensate Drain
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
40	Tube, Discharge Top Assembly (Includes 51 & 52)
41	Anticipator
42	Clip, Anticipator
43	W11236646 Whirlpool Washer Assembly
44	Distributor
45	Tube, Discharge
46	Bolt, Compressor
47	Tube, Wet Loop Connect
48	Cap, Bolt
