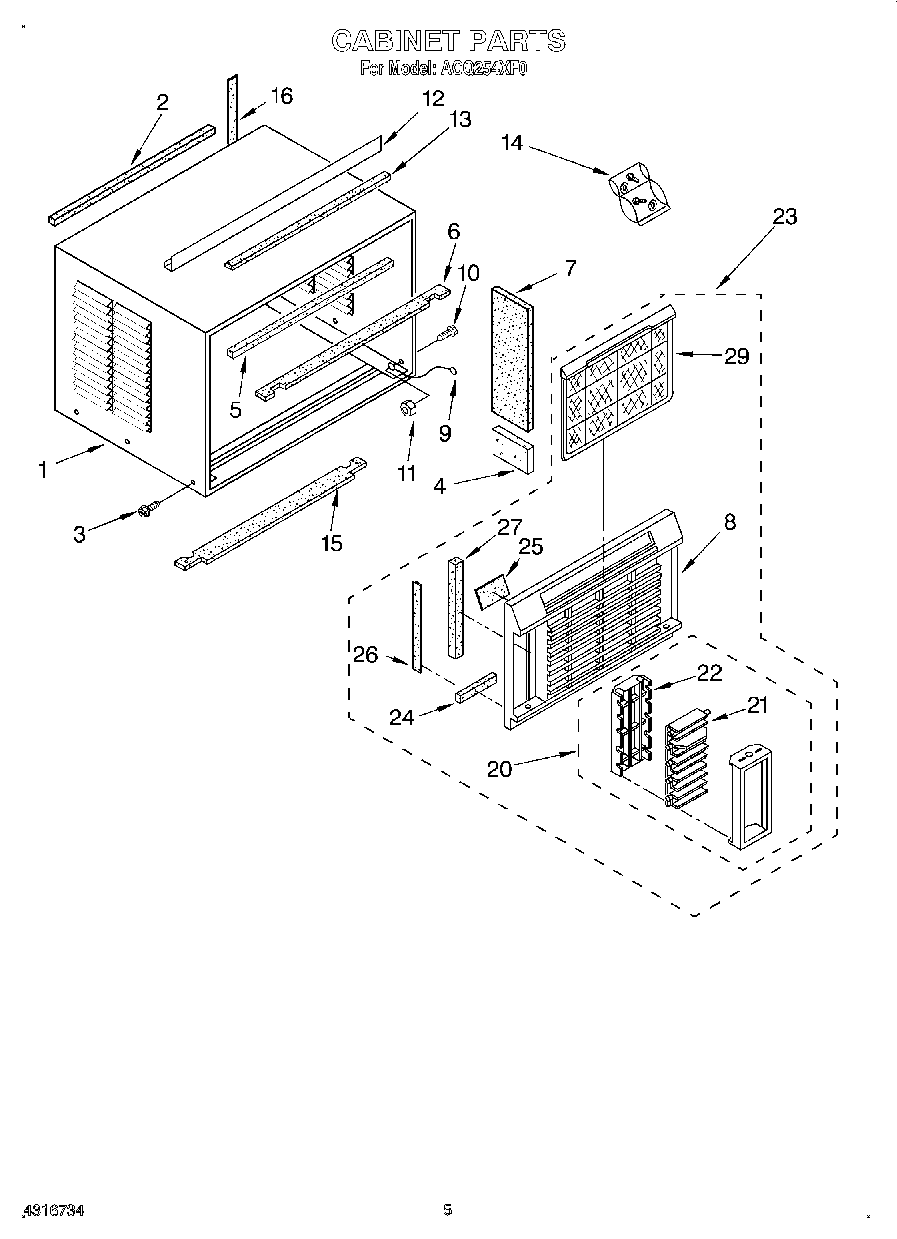

ACQ254XF0 03 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	WP489069 Whirlpool Compactor Screw
4	Insulation, Cabinet Side (2)
5	Seal, Top
6	Seal
7	Insulation, Cabinet Side (2)
8	Cabinet Front
9	Wire, Ground
10	WP488234 Whirlpool Air Conditioner Screw
11	WP486255 Whirlpool Air Conditioner Nut
12	Angle, Top Mounting
13	Seal, Top Mounting Angle
14	Bag, Accessory
15	Seal
16	Seal, Rear Grille
20	Cartridge, Complete
21	Horzontal Louver
22	Ribs, Vertical
23	Front, Complete
24	Seal (Left Side)
24	Seal (Right Side)
25	Seal (Right Side)
25	Seal (Left Side)
26	Seal (2)
27	WP854334 Whirlpool Air Conditioner Sealing Strip
29	Filter
