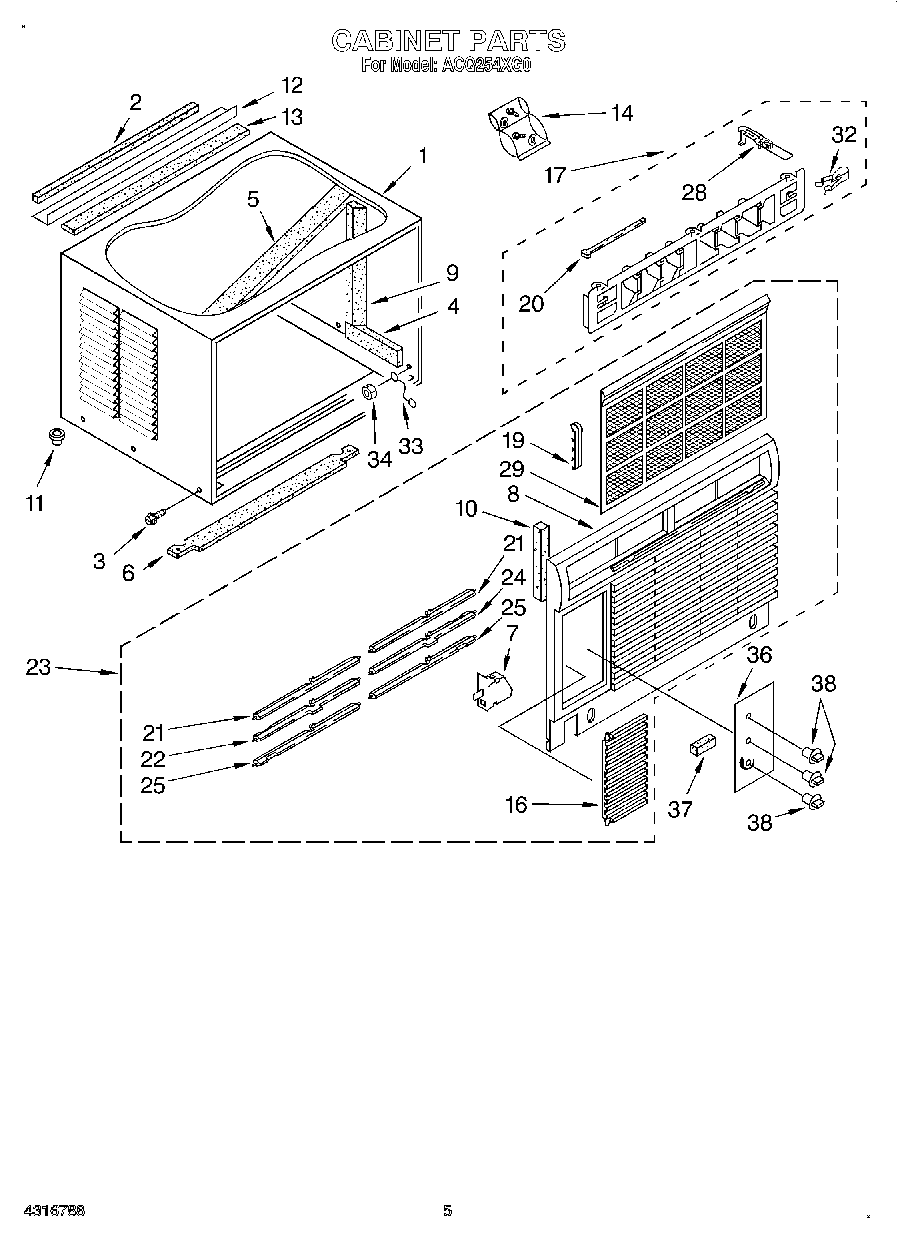

ACQ254XG0 03 – CABINET

Products

Position	Product
1	Cabinet (Includes Insulation)
2	Gasket, Meeting Rail
3	WP489069 Whirlpool Compactor Screw
4	Insulation, Cabinet Side (2)
5	Insulation, Cabinet (Top)
6	Seal
7	Monitor, Filter
8	Cabinet Front
9	Insulation, Cabinet Side (2)
10	Seal, Front (3)
11	Cup, Condensate Drain
12	Angle, Top Mounting
13	Seal, Top Mounting Angle
14	Bag, Accessory
16	Door, Control
17	Louver, Verticle
19	Link, Louver (Horizontal)
20	Link, Vertical Louver (2)
21	Louver, Horizontal (8)
22	Louver, Horizontal (Handle Left)
23	Front, Complete
24	Louver, Horizontal (Handle Right)
25	Louver, Horizontal (Notch Left)
25	Louver, Horizontal (Notch Right)
28	Louver, Actuator
29	Filter
32	Spring, Detent
33	Wire, Ground
34	WP488234 Whirlpool Air Conditioner Screw
36	Plate, Escutcheon
37	Spacer, Escutcheon Plate (3)
38	Knob (3)
