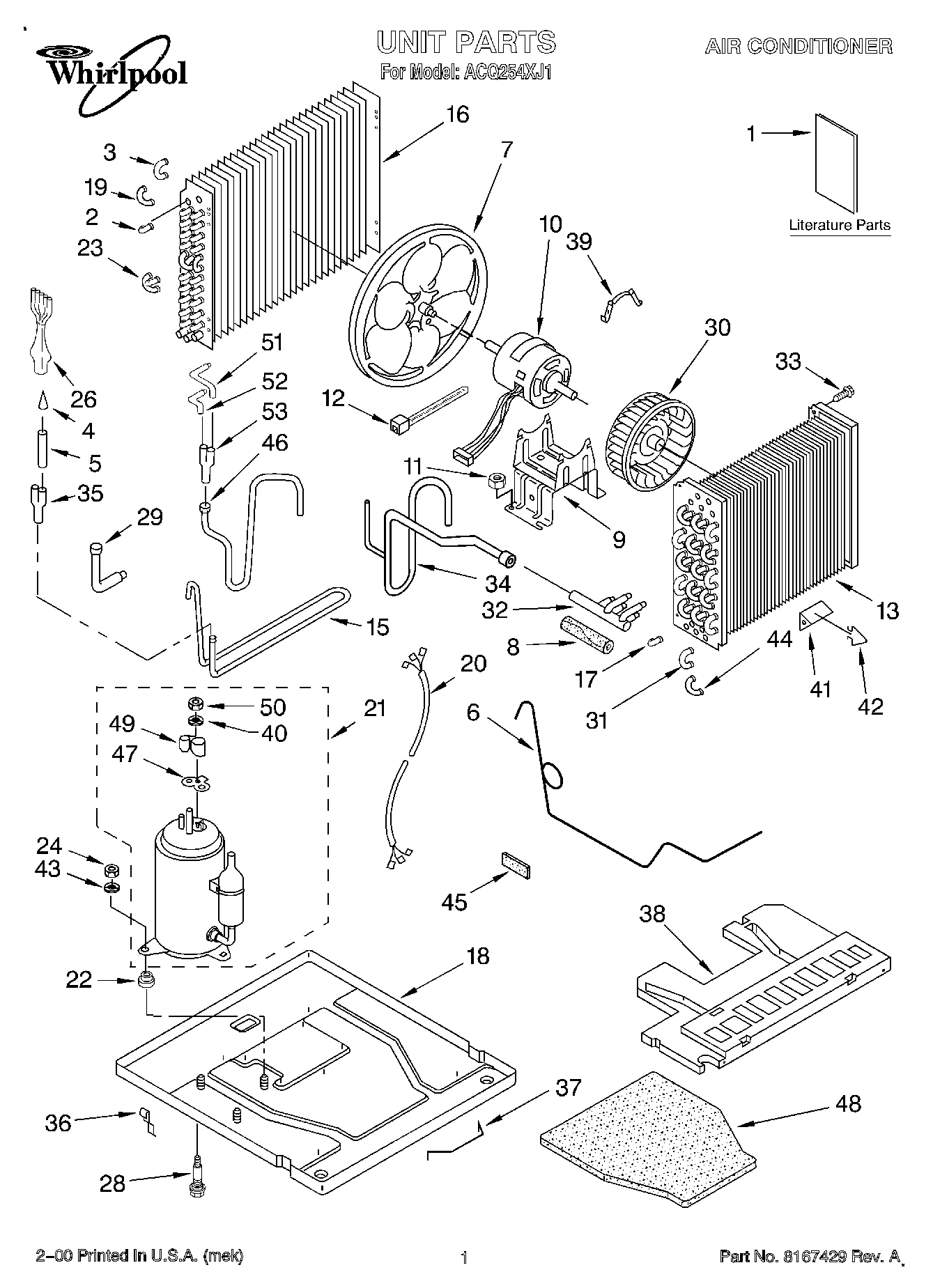

ACQ254XJ1 01 – UNIT, LITERATURE

Products

Position	Product
1	Use & Care Guide
1	Wiring Diagram
2	Bend, Return Condenser (10)
3	Bend, Return Condenser (4)
4	Strainer
5	Tube, Outlet (Includes Illus. 4)
6	Tube, Restrictor (5)
7	Blade, Fan (Condenser)
8	Seal, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
15	Wetloop
16	Condenser
17	Bend, Return Evaporator (4)
18	Base
19	Tube, Riser (2)
20	Harness, Wiring (Compressor Service)
21	Compressor
22	Grommet (3)
23	Bend, Return (3-Way)
24	Locknut (3)
26	Distributor
28	Bolt, Compressor
29	Tube, Wetloop Connect
30	Wheel, Blower (Evaporator)
31	Bend, Return Evaporator (11)
32	Manifold, Suction
33	WP489069 Whirlpool Compactor Screw
34	Tube, Suction
35	Tube, Flow Divider
36	Clamp (2)
37	WPL 647971
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
40	Gasket
41	Anticipator, Temperature
42	Clip, Anticipator
43	W11236646 Whirlpool Washer Assembly
44	Bend, Return Evaporator (4)
45	Seal, Restrictor Tube
46	Tube, Discharge
47	Gasket, Terminal Cover
48	Insulation, Base (Bottom)
49	WP950036 Whirlpool Cover Assembly
50	WP950027 Whirlpool Mounting Nut
51	Tube, Feeder
52	Tube, Feeder
53	Tube, Flow Divider
