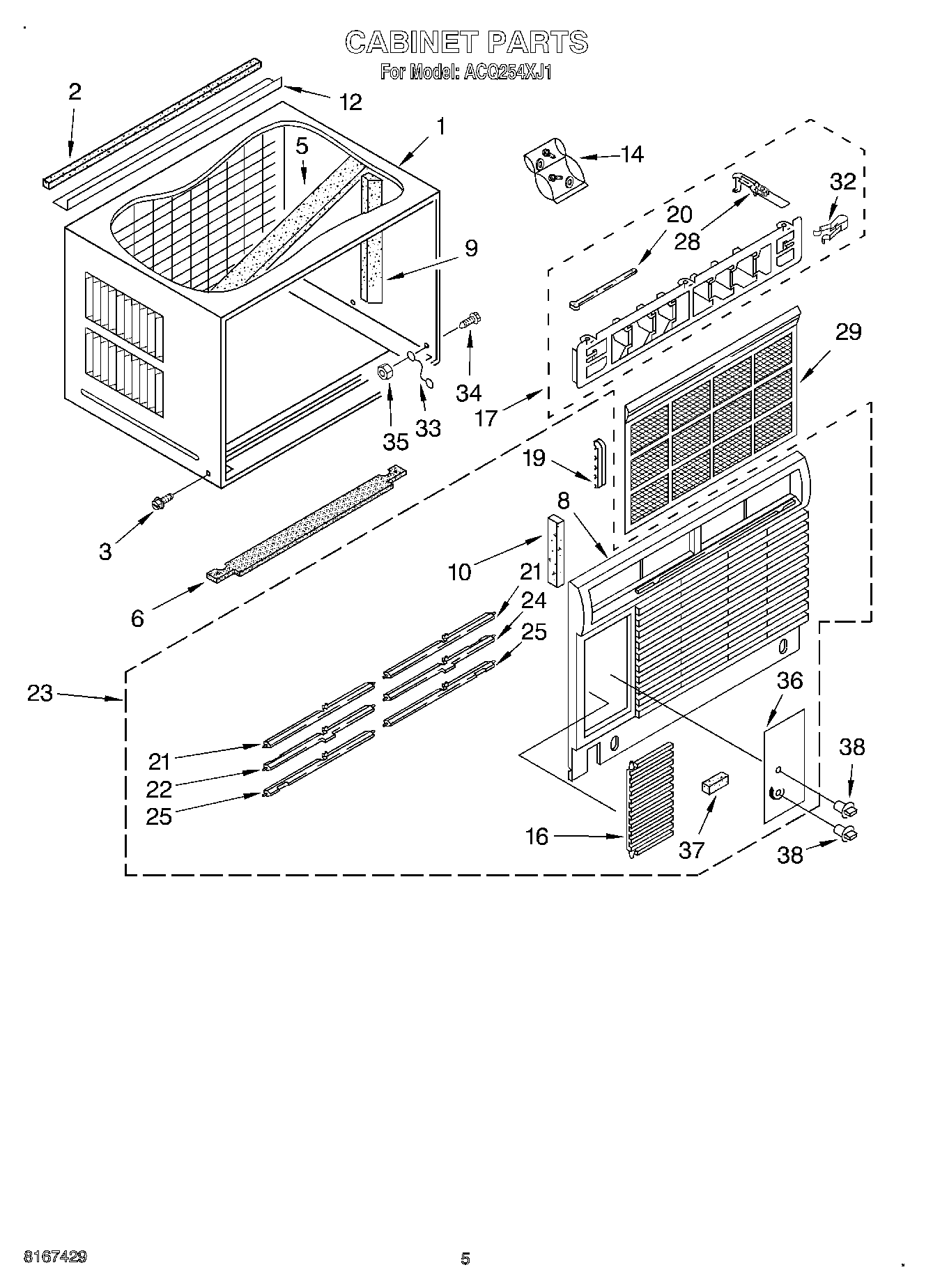

ACQ254XJ1 03 – CABINET

Products

Position	Product
1	Cabinet (Includes Insulation)
2	Gasket, Meeting Rail
3	WP489069 Whirlpool Compactor Screw
5	Insulation, Top (Cabinet)
6	Seal
8	Front, Cabinet
9	Insulation, Cabinet Side (2)
10	Seal, Front (3)
12	Angle (Top)
14	Bag, Accessory
16	Door, Control
17	Vertical, Louver
19	Link, Horizontal Louver (5)
20	Link, Verticle Louver (2)
21	Louver, Horizontal (8)
22	Louver, Horizontal W/ Handle, Left
23	Front, Complete
24	Louver, Horizontal W/ Handle, Right
25	Louver, Horizontal (Notch Left)
25	Louver, Horizontal (Notch Right)
28	Actuator, Louver
29	Filter
32	Spring, Detent
33	Wire, Ground
34	WP488234 Whirlpool Air Conditioner Screw
35	WP486255 Whirlpool Air Conditioner Nut
36	Plate, Escutcheon
37	Spacer, Escutcheon Plate (3)
38	WP8031121 Whirlpool Air Conditioner Control Knob
