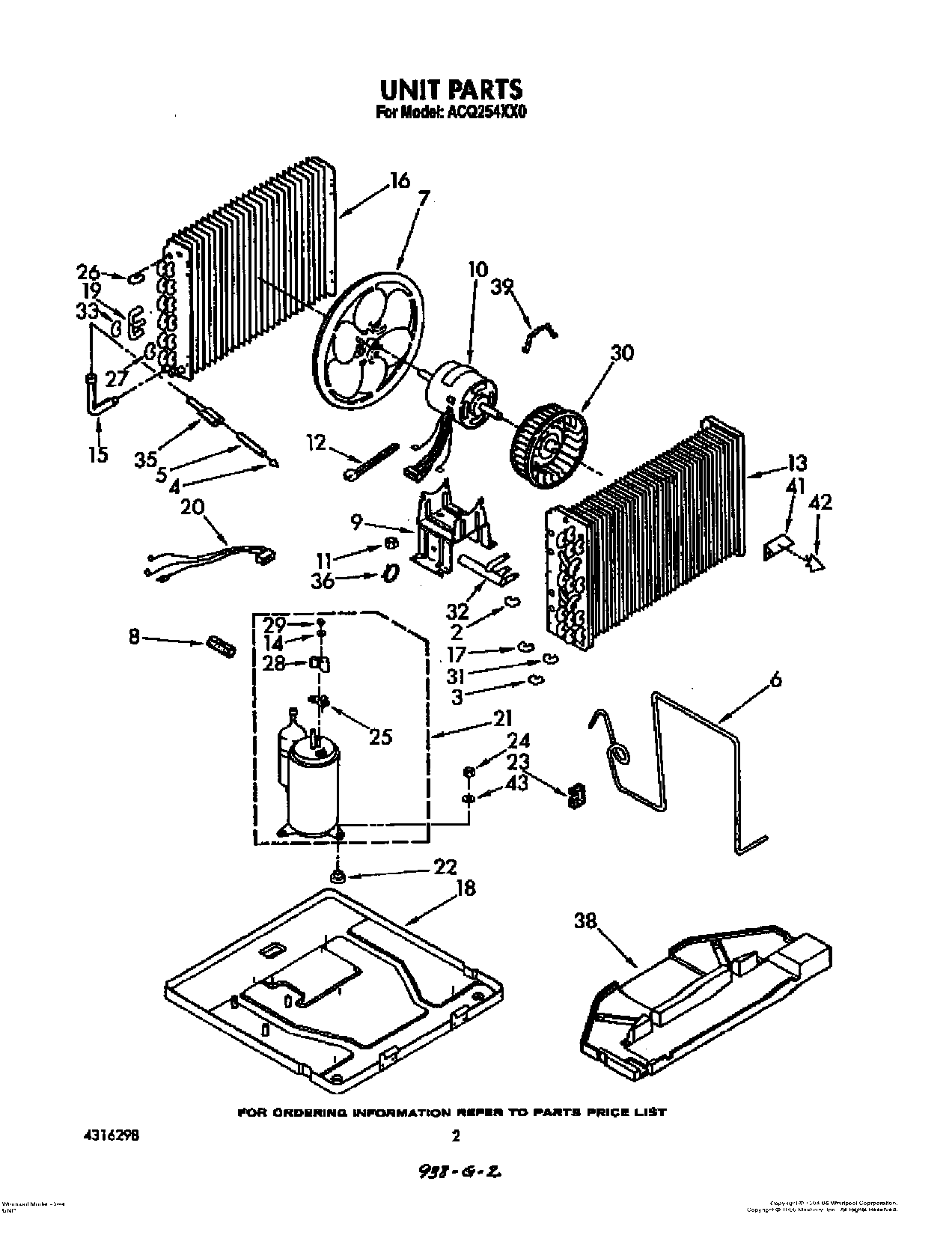

ACQ254XX0 02 – UNIT, LIT/OPTIONAL

Products

Position	Product
2	Bend, Return Condenser (10)
3	Bend, Return Condenser (4)
4	Strainer
5	Tube, Wet Loop Connect
6	Tube, Restrictor (3)
7	Blade, Fan (Condenser)
8	Seal, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Gasket, Nut
15	Tube, Connecting
16	Condenser
17	Tube, Riser (2)
18	Base
19	Return Bend 3-Way
20	Harness, Wiring (Compressor Service)
21	Compressor
22	Grommet (3)
23	Seal, Restrictor Tube
24	Locknut (3)
25	WP950035 Whirlpool Cover Gasket
26	Return Bend (2)
27	Return Bend
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
30	Wheel, Blower (Evaporator)
31	Bend, Return Condenser (1)
32	Manifold, Suction
33	Return Bend (30)
35	Tube, Flow Divider
36	Clamp (2)
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
41	Anticipator
42	Clip, Anticipator
43	Buy Guide
43	Use And Care Guide
43	W11236646 Whirlpool Washer Assembly
43	Tech Sheet
43	Instructions, Installation
43	Wiring Diagram
43	Literature Parts (List, Repair Parts)
