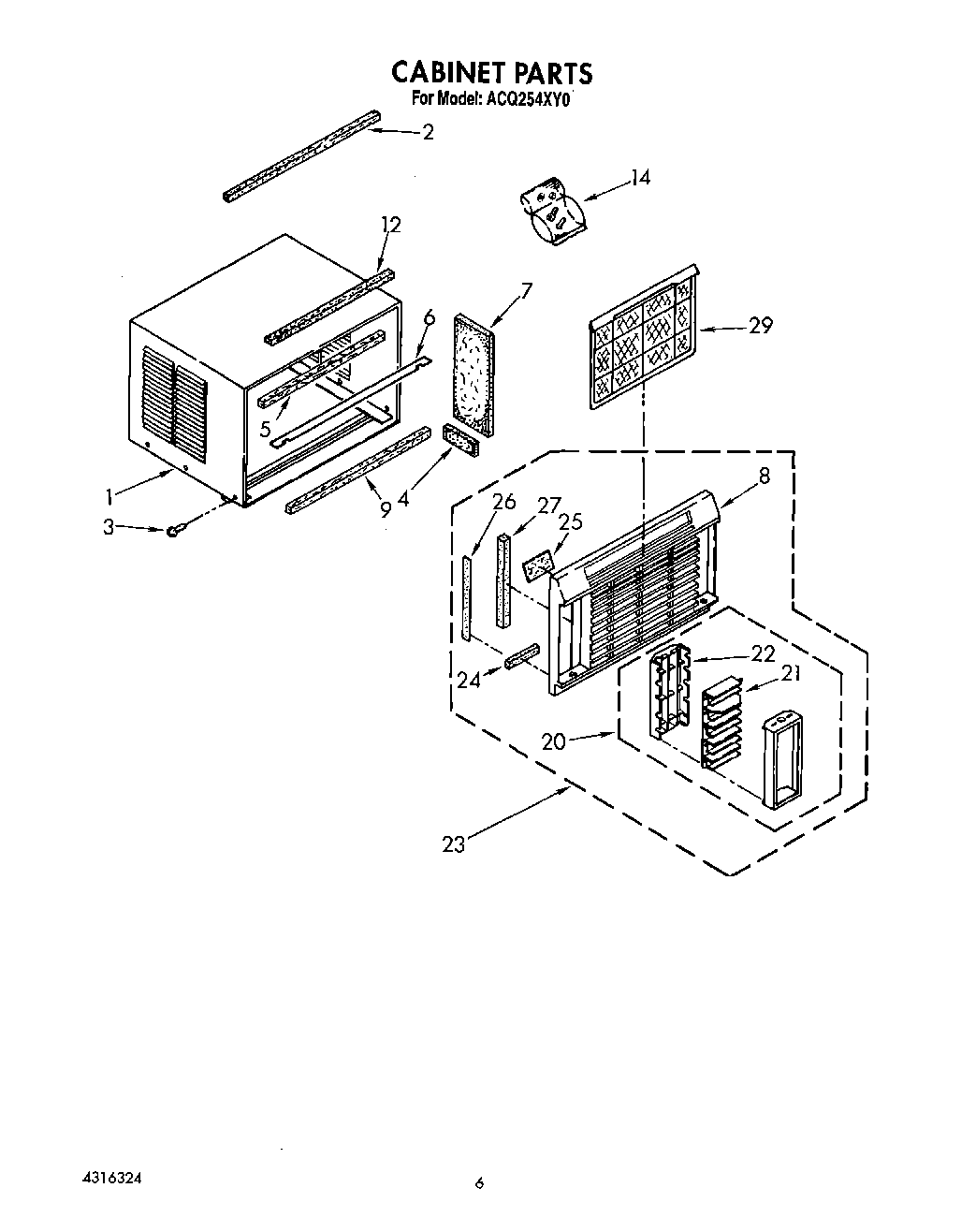

ACQ254XY0 04 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	WP489069 Whirlpool Compactor Screw
4	Insulation, Cabinet Side (2)
5	Seal, Top
6	Seal
7	Insulation, Cabinet Side (2)
8	Cabinet Front
9	Seal
12	Strip, Seal
14	Bag, Accessory
20	Cartridge, Complete
21	Horzontal Louver
22	Ribs, Vertical
23	Front, Complete
24	Seal (Right Side)
24	Seal (Left Side)
25	Seal (Right Side)
25	Seal (Left Side)
26	Seal (2)
27	WP854334 Whirlpool Air Conditioner Sealing Strip
29	Filter
