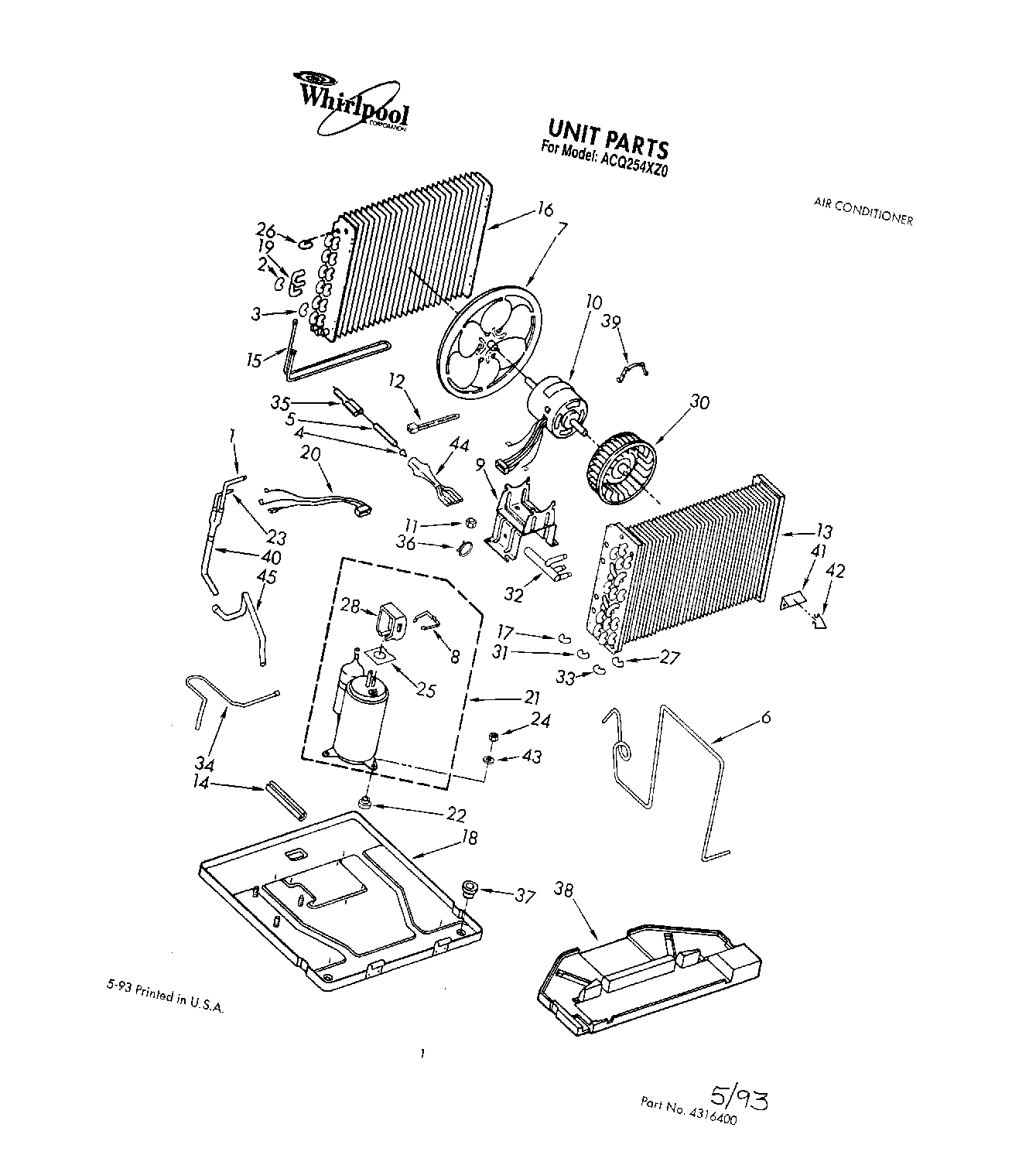

ACQ254XZ0 01 – UNIT, LITERATURE

Products

Position	Product
	Literature Parts (List, Repair Parts)
	Use And Care Guide
	Instructions, Installation
	Tech Sheet
	Wiring Diagram
	Buy Guide
1	Tube, Feeder
2	Bend, Return Condenser (10)
3	Bend, Return Condenser (4)
4	Strainer
5	Tube, Outlet (Includes Illus. 4)
6	Tube, Restrictor (5)
7	Blade, Fan (Condenser)
8	Retainer, Terminal Cover
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Seal, Suction Tube
15	Tube, Wet Loop
16	Condenser
18	Base (Includes 46)
19	Bend, Return (3-Way)
20	Harness, Wiring (Compressor)
21	Compressor
22	Grommet (3)
23	Tube, Feeder
24	Locknut (3)
25	Gasket, Terminal Cover
26	Tube, Riser (2)
27	Bend, Return Evaporator (4)
28	Cover, Terminal
30	Wheel, Blower (Evaporator)
31	Bend, Return Evaporator (11)
32	Manifold, Suction
33	Bend, Return Evaporator (4)
34	Suction Tube Assembly
35	Tube, Flow Divider
36	Clamp (2)
37	Cup, Condensate Drain
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
40	Tube, Discharge Top (Includes Illus. 37,40,44)
41	Anticipator
42	Clip, Anticipator
43	W11236646 Whirlpool Washer Assembly
44	Distributor
45	Tube, Discharge (Bottom)
