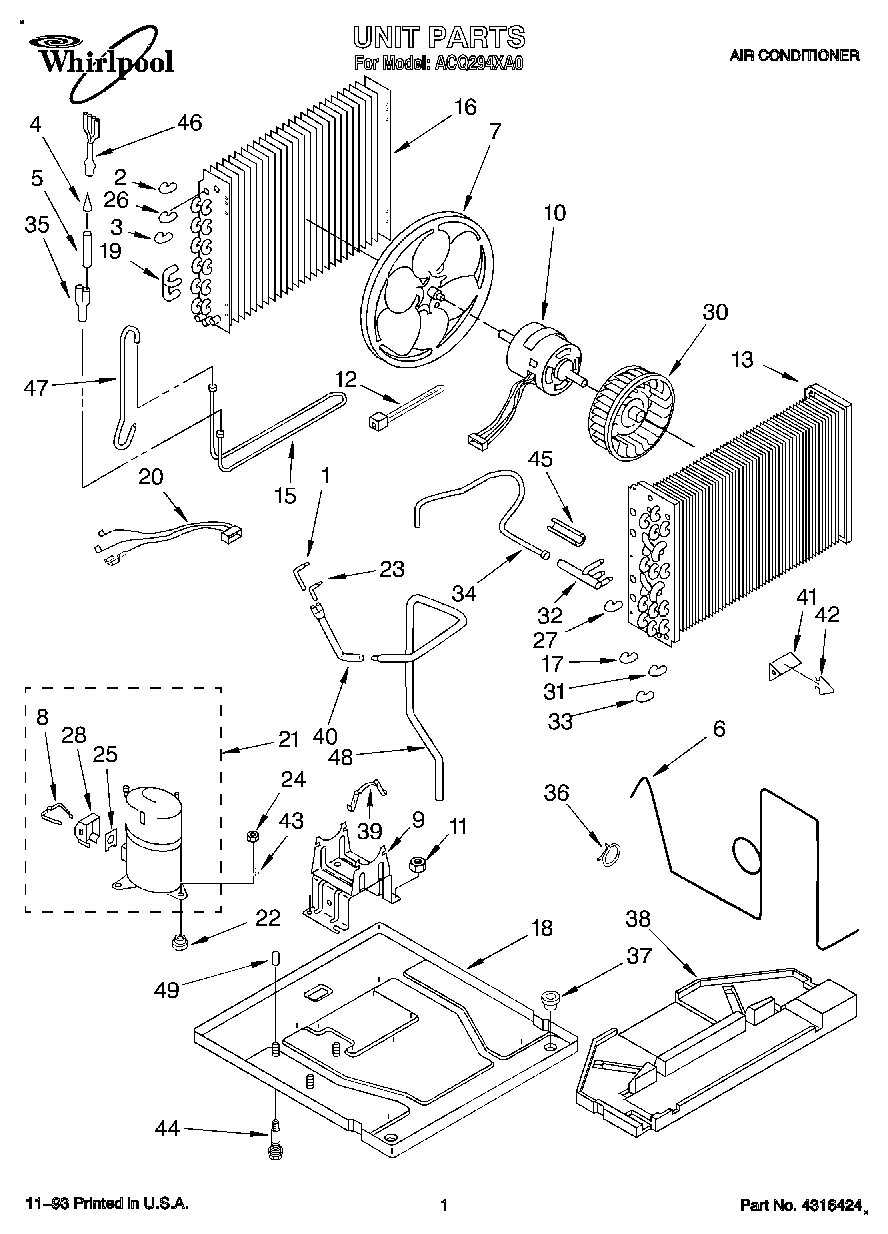

ACQ294XA0 01 – UNIT, LITERATURE

Products

Position	Product
1	Tube, Feeder
2	Bend, Return Condenser (10)
3	Bend, Return Condenser (4)
4	Strainer
5	Tube, Outlet (Includes Illus. 4)
6	Tube, Restrictor
7	Blade, Fan (Condenser)
8	Retainer, Terminal Cover
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
15	Tube, Wet Loop
16	Condenser
18	Base (Includes 46)
19	Bend, Return (3-Way)
20	Harness, Wiring (Compressor)
21	Compressor
22	Grommet (3)
23	Tube, Feeder
24	Locknut (3)
25	Gasket, Terminal Cover
26	Tube, Riser (2)
27	Bend, Return Evaporator (4)
28	Cover, Terminal
30	Wheel, Blower (Evaporator)
31	Bend, Return Evaporator (11)
32	Manifold, Suction
33	Bend, Return Evaporator (4)
34	Suction Tube Assembly
35	Tube, Flow Divider
36	Clamp (2)
37	Cup, Condensate Drain
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
40	Discharge Tube Assembly (Includes 1, 23)
41	Anticipator
42	Clip, Anticipator
43	W11236646 Whirlpool Washer Assembly
44	Bolt, Compressor
45	Insulation, Suction Tube
46	Distributor
47	Tube, Wet Loop Connect
48	Tube, Discharge
49	Tech Sheet
49	Wiring Diagram
49	Instructions, Installation
49	Use And Care Guide
49	Cap, Bolt
