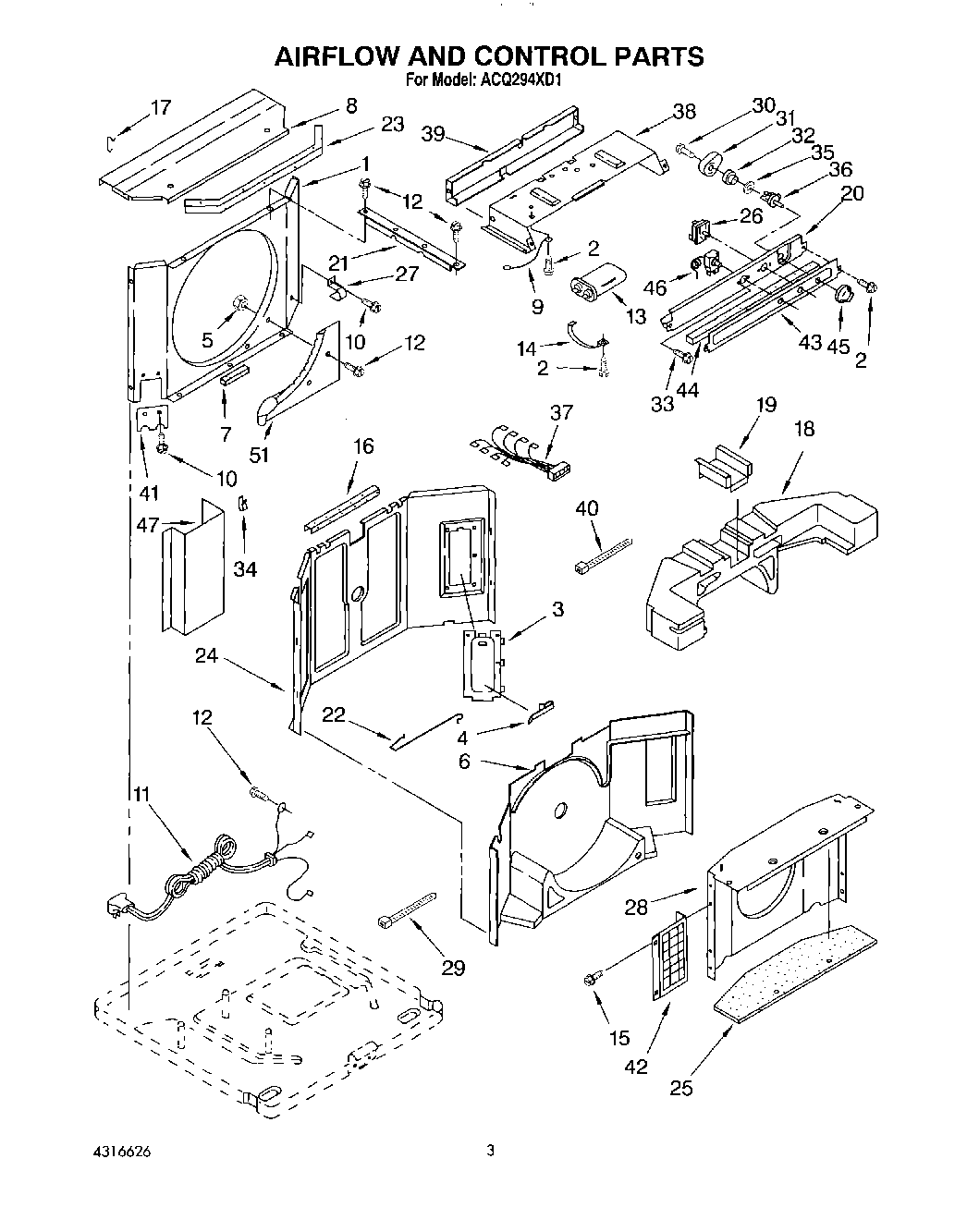

ACQ294XD1 02 – AIRFLOW AND CONTROL

Products

Position	Product
1	Shroud, Condenser
3	Door, Exhaust
4	Spring, Door
5	WP488130 Whirlpool Air Conditioner Nut
6	Scroll (Lower)
7	Seal, Condensate Cup
8	Top, Condenser
9	Wire, Ground
10	WP489069 Whirlpool Compactor Screw
11	Cord, Appliance
13	Capacitor
14	Bracket, Capacitor
15	Screw, 8-18 x 3/8
16	Grommet, Divider Wall
17	Clip, Shroud (2)
18	Scroll, Upper
19	Raceway, Wiring
20	Panel, Control
21	Support, Unit (2)
22	Wire, Control
23	Seal, Shroud
24	Dividing Wall
25	Seal, Evaporator
26	Switch, Rotary
27	Clip, Wet Loop
28	Shroud Assembly, Evaporator
29	WPW10339879 Whirlpool Wire Tie
30	Screw, 7-18 x 5/8
31	Cam, Exhaust
32	Bushing, Shaft
33	Screw, 6-32 x .175
34	8577411 Whirlpool Pad
35	Washer
36	Shaft, Control Exhaust
37	Harness, Wiring - Control Box
38	Box, Control
39	Back Panel, Control Box
41	Clip, Nylon
42	Impeller Guard (2)
43	Escutcheon
44	WP854334 Whirlpool Air Conditioner Sealing Strip
45	Knob, Controls (4)
46	Control, Temperature
47	Condensate Guard
51	Cup, Condensate
