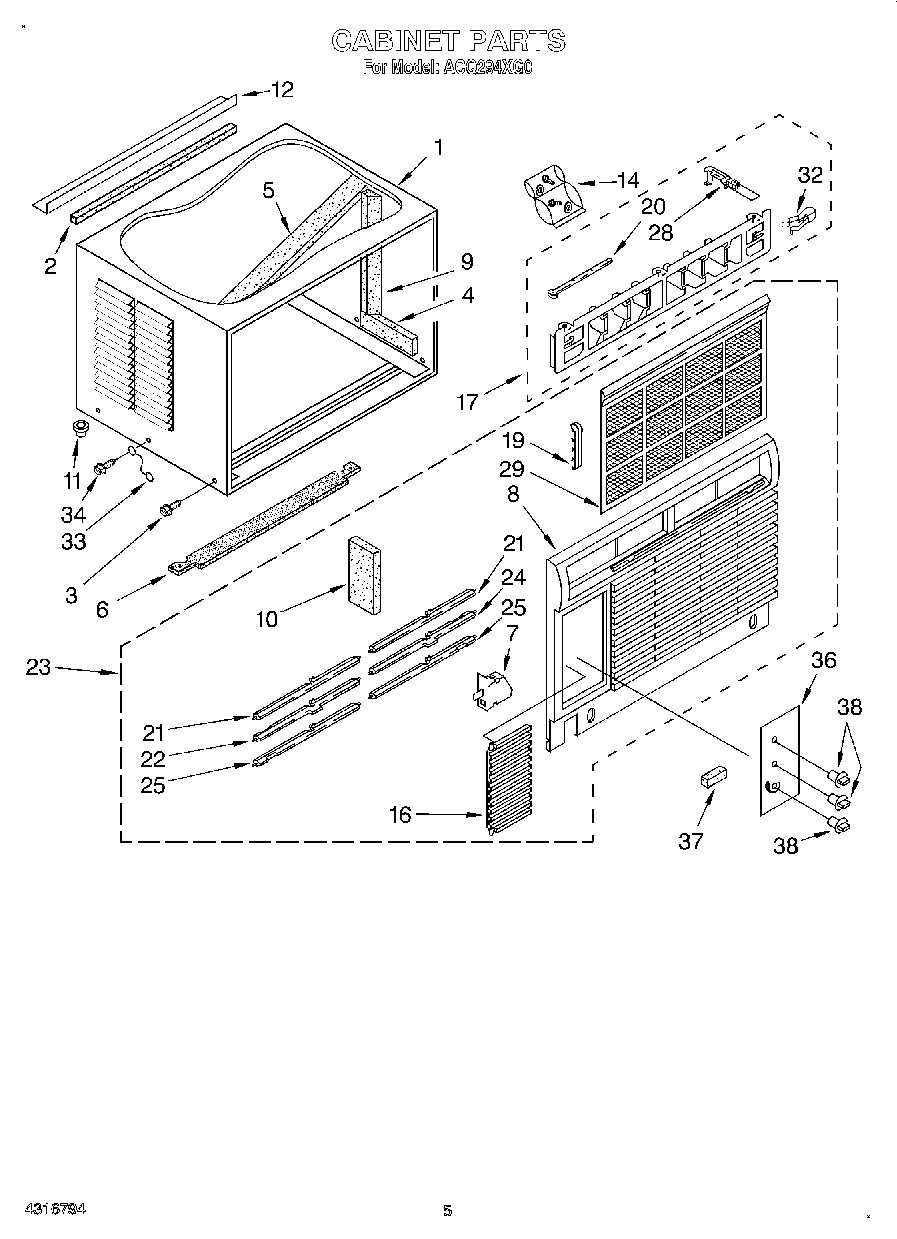

ACQ294XG0 03 – CABINET

Products

Position	Product
1	Cabinet (Includes Insulation)
2	Seal, Top Mounting Angle
3	WP489069 Whirlpool Compactor Screw
4	Insulation, Cabinet Side (2)
5	Insulation, Cabinet (Top)
6	Seal
7	Monitor, Filter
8	Front, Cabinet
9	Insulation, Cabinet Side (2)
10	Seal, Front (3)
11	Cup, Condensate Drain
12	Angle, Top Mounting
14	Bag, Accessory
16	Door, Control
17	Louver, Verticle
19	Link, Louver (Horizontal)
20	Link, Vertical Louver (2)
21	Louver, Horizontal (8)
22	Louver, Horizontal (Handle Left)
23	Front, Complete
24	Louver, Horizontal (Handle Right)
25	Louver, Horizontal (Notch Right)
25	Louver, Horizontal (Notch Left)
28	Louver, Actuator
29	Filter
32	Spring, Detent
33	Wire, Ground
34	WP488234 Whirlpool Air Conditioner Screw
36	Plate, Escutcheon
37	Spacer, Escutcheon Plate (3)
38	Knob (3)
