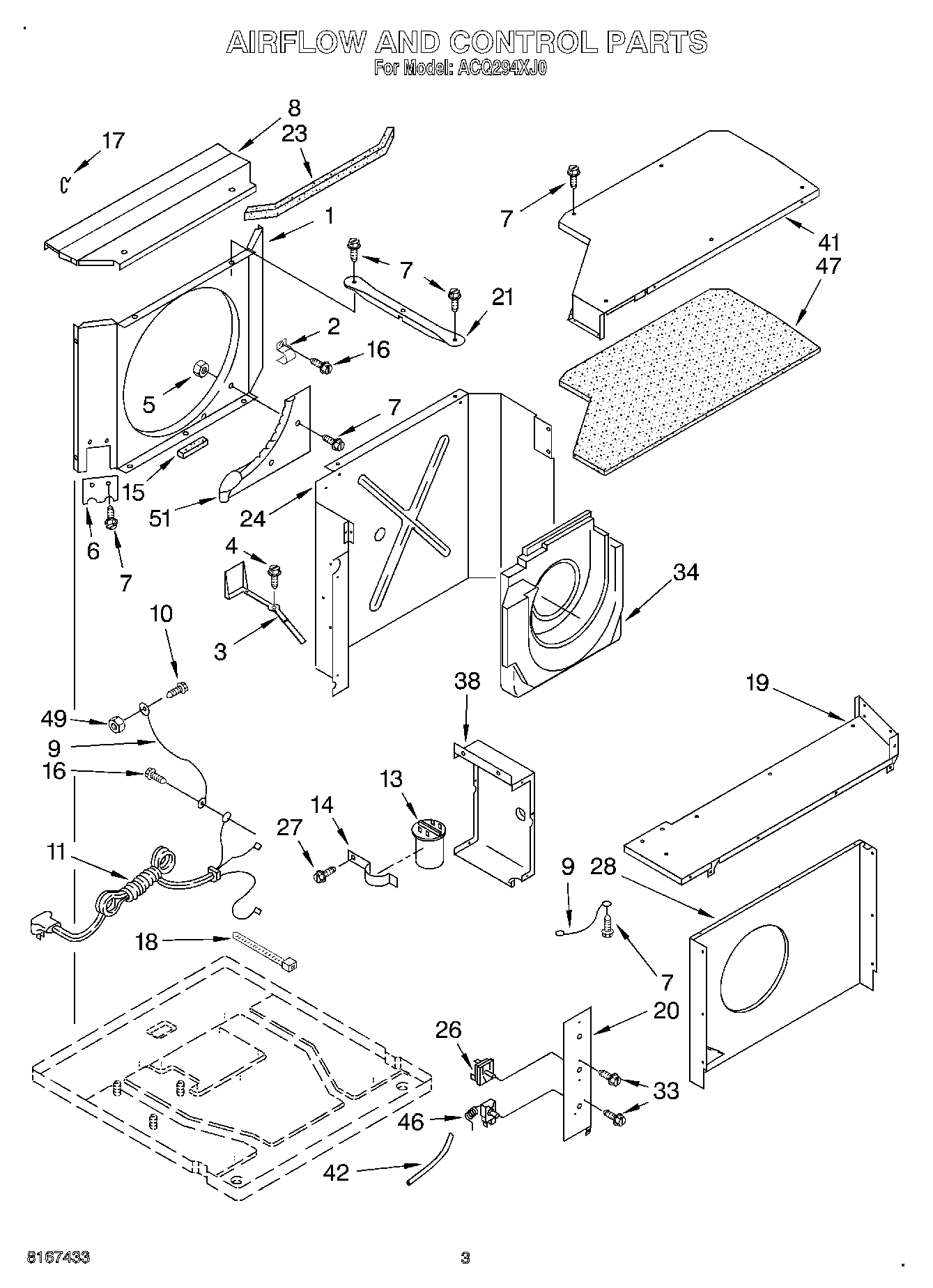

ACQ294XJ0 02 – AIR FLOW AND CONTROL

Products

Position	Product
1	Shroud, Condenser
2	Clip, Wet Loop
3	Door, Exhaust
4	Screw, 8-18 x .437
5	WP488130 Whirlpool Air Conditioner Nut
6	Clip, Nylon
7	Screw, 8 x 3/8
8	Top, Condenser
9	Wire, Ground
10	Screw, 7-18 x 5/8
11	Cord, Appliance
13	Capacitor
14	Bracket, Capacitor
15	Seal, Condensate Cup
17	Clip, Shroud (2)
18	WPW10339879 Whirlpool Wire Tie
19	Top, Evaporator Shroud
20	Panel, Control
21	Support, Unit (2)
23	Seal, Shroud
24	Dividing Wall
26	Switch, Rotary
27	WP489069 Whirlpool Compactor Screw
28	Shroud Assembly, Evaporator
33	Screw, 6-32 x .175
34	Housing, Air
38	Control Box (R.S.)
41	Cover, Top
42	Sleeve, Insulating
46	Control, Temperature
47	Insulation, Top Cover
49	WP486255 Whirlpool Air Conditioner Nut
51	Cup, Condensate
