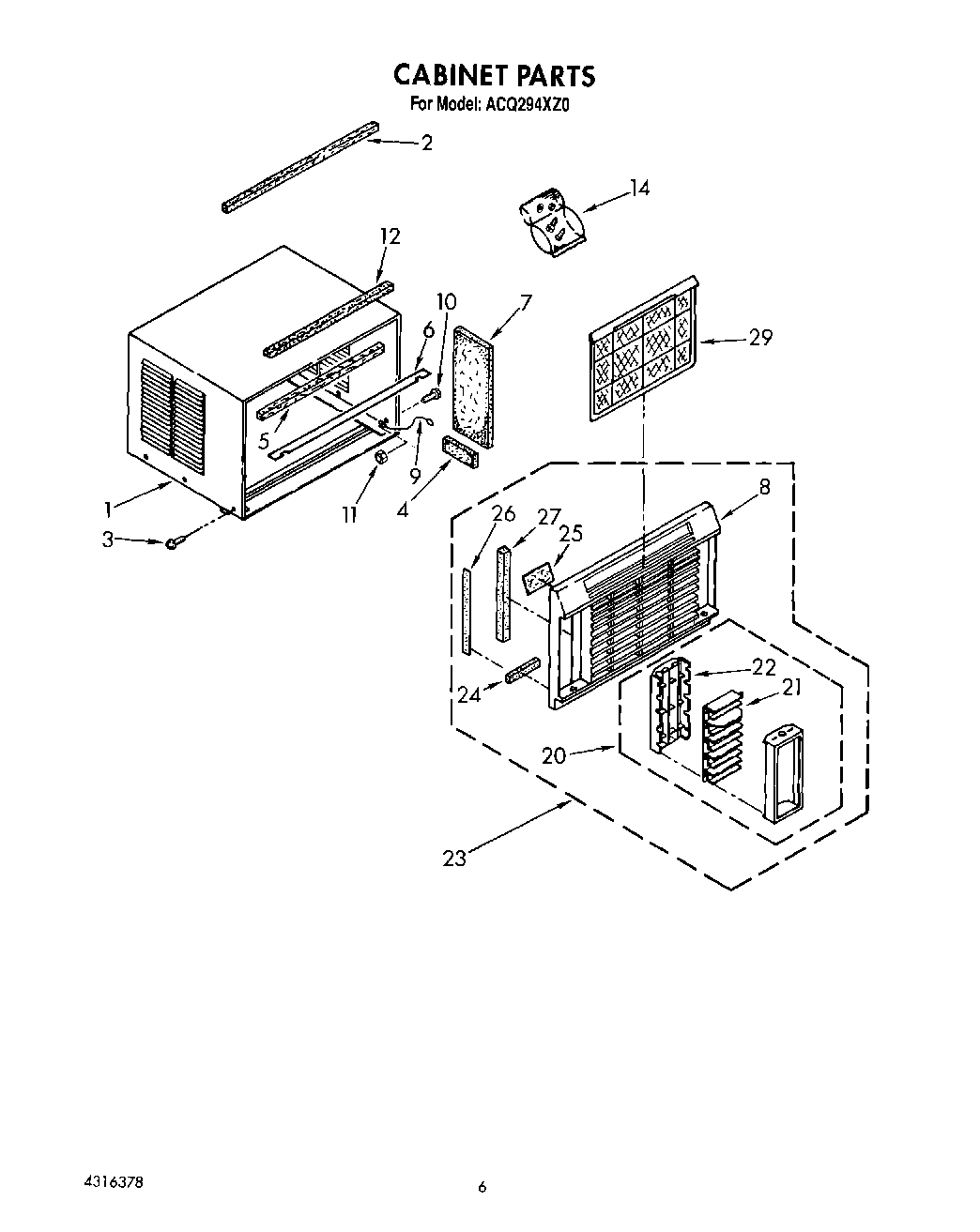

ACQ294XZ0 03 – CABINET

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
3WP489069 Whirlpool Compactor Screw
4Insulation, Cabinet Side (2)
5Seal, Top
6Seal
7Insulation, Cabinet Side (2)
8Cabinet Front
9Wire, Ground
10WP488234 Whirlpool Air Conditioner Screw
11WP486255 Whirlpool Air Conditioner Nut
12Strip, Seal
14Bag, Accessory
20Cartridge, Complete
21Horzontal Louver
22Ribs, Vertical
23Front, Complete
24Seal (Left Side)
24Seal (Right Side)
25Seal (Left Side)
25Seal (Right Side)
26Seal (2)
27WP854334 Whirlpool Air Conditioner Sealing Strip
29Filter
