ACQ304XL0 05 – INSTALLATION

ACQ304XL0 05 – INSTALLATION

Written by

in

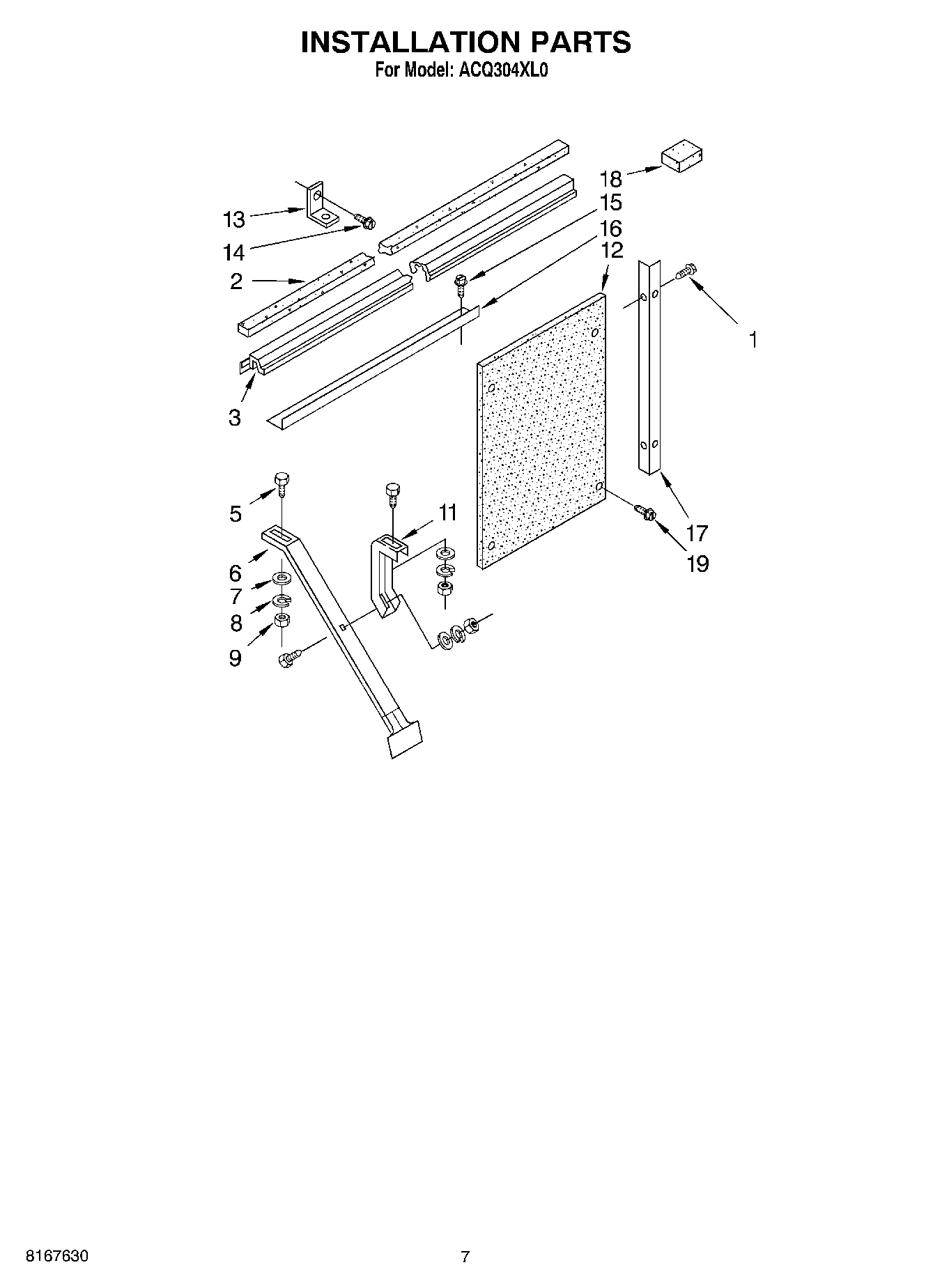

ACQ304XL0 05 – INSTALLATION

Products

PositionProduct
1Screw 8-18 x .295
2Gasket, Meeting Rail
3Gasket, Sash
5Bolt, 1/4 x 3/4 (6)
6Support, Cabinet (2)
7WP120393 Whirlpool Washer Assembly
8Lockwasher (6)
9Nut, Hex (6)
11Support, Retainer (2)
12Board, Filler
13Bracket
14Screw (Window Lock Bracket)
15WP489069 Whirlpool Compactor Screw
16Angle (Top)
17Angle (2)
18Spacer, Block (4)
19Screw (Side Angle To Filler Board)
