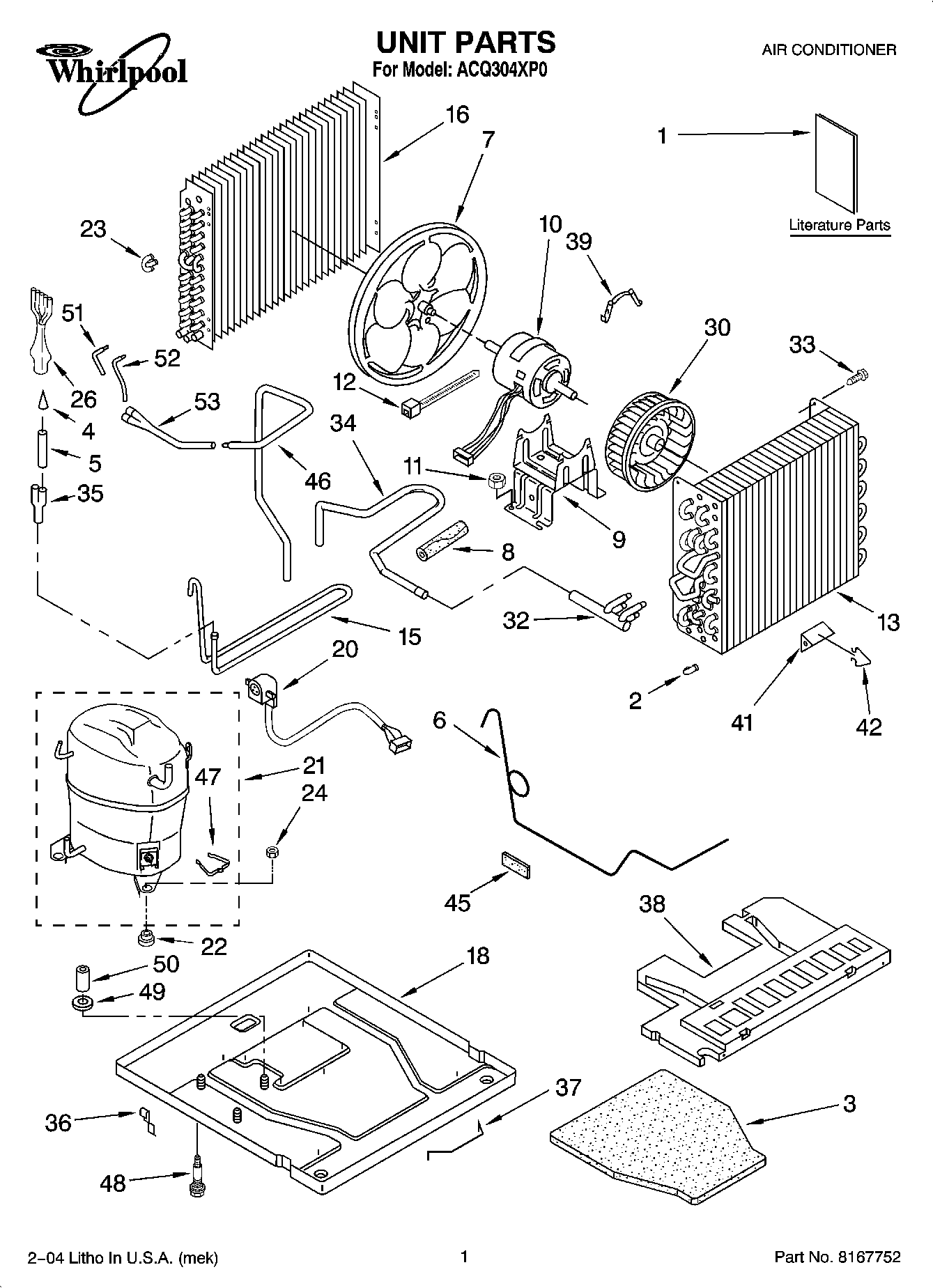

ACQ304XP0 01 – UNIT PARTSadmin2025-04-26T10:48:11+00:00ACQ304XP0 01 – UNIT PARTS
Products
| Position | Product |
|---|
| 1 | LITERATURE PARTS (Wiring Diagram) |
| 1 | Literature Parts (Use & Care Guide) |
| 1 | Energy Guide |
| 2 | Bend, Return Evaporator (11) |
| 3 | Insulation, Base (Bottom) |
| 4 | Strainer |
| 5 | Tube, Outlet (Includes Illus. 4) |
| 6 | Tube, Restrictor (4) |
| 7 | Blade, Fan (Condenser) |
| 8 | Seal, Suction Tube |
| 9 | Bracket, Fan Motor |
| 10 | Motor, Fan |
| 11 | WP488130 Whirlpool Air Conditioner Nut |
| 12 | WPW10339879 Whirlpool Wire Tie |
| 13 | EVAPORATOR |
| 15 | Wet, Loop |
| 16 | CONDENSER |
| 18 | Base |
| 20 | Harness, Wiring Compressor |
| 21 | Compressor |
| 22 | Grommet (3) |
| 23 | Bend, Return (3-Way) |
| 24 | Locknut (3) |
| 26 | Distributor (Bottom) |
| 30 | Wheel, Blower (Evaporator) |
| 32 | Manifold, Suction |
| 33 | WP489069 Whirlpool Compactor Screw |
| 34 | Tube, Suction |
| 35 | Tube, Flow Divider |
| 36 | Clamp (2) |
| 37 | WPL 647971 |
| 38 | Pan, Drain |
| 39 | WPY015825 Whirlpool Motor Clip |
| 41 | Anticipator, Temperature |
| 42 | Clip, Anticipator |
| 45 | Seal, Restrictor Tube |
| 46 | Tube, Discharge |
| 47 | Retainer, Terminal Cover |
| 48 | Bolt, Compressor |
| 49 | Spacer, Grommet |
| 50 | Sleeve, Mounting |
| 51 | Tube, Feeder |
| 52 | Tube, Feeder |
| 53 | Tube, Discharge Top Assembly (Includes 51 & 52) |
| 53 | REFRIGERANT CHARGE 56.00 oz. |
