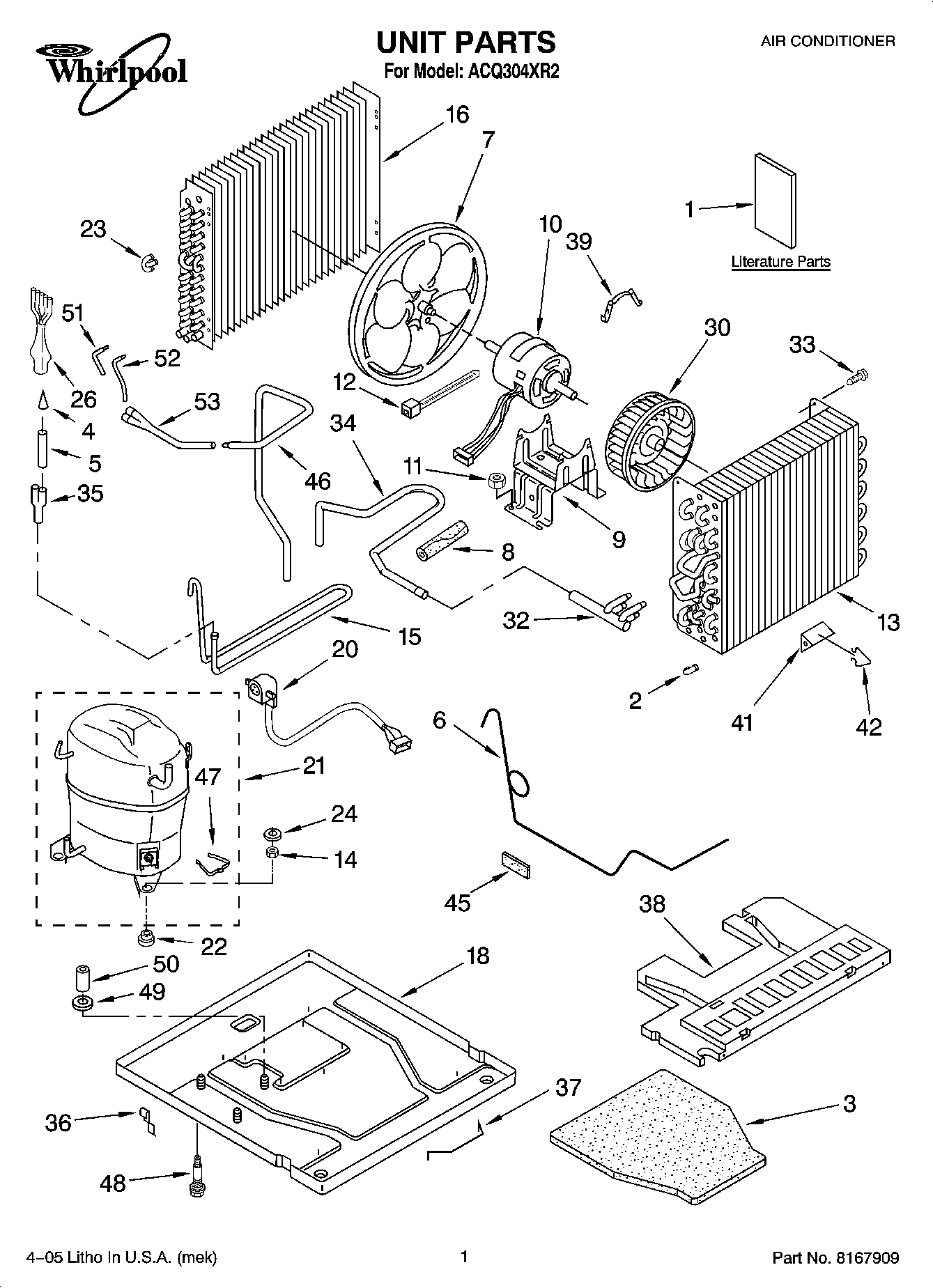

ACQ304XR2 01 – UNIT PARTS

ACQ304XR2 01 – UNIT PARTS

Written by

in

ACQ304XR2 01 – UNIT PARTS

Products

PositionProduct
1Use & Care Guide
1Wiring Diagram
1Energy Guide
2Bend, Return Evaporator (11)
3Insulation, Base (Bottom)
4Strainer
5Tube, Outlet (Includes Illus. 4)
6Tube, Restrictor (4)
7Blade, Fan (Condenser)
8Seal, Suction Tube
9Bracket, Fan Motor
10Motor, Fan
11WP488130 Whirlpool Air Conditioner Nut
12WPW10339879 Whirlpool Wire Tie
13EVAPORATOR
14W11236646 Whirlpool Washer Assembly
15Wet, Loop
16CONDENSER
18Base
20Harness, Wiring Compressor
21Compressor
22Grommet (3)
23Bend, Return (3-Way)
2490984 Whirlpool Nut
26Distributor (Bottom)
30Wheel, Blower (Evaporator)
32Manifold, Suction
33WP489069 Whirlpool Compactor Screw
34Tube, Suction
35Tube, Flow Divider
36Clamp (2)
37WPL 647971
38Pan, Drain
39WPY015825 Whirlpool Motor Clip
41Anticipator, Temperature
42Clip, Anticipator
45Seal, Restrictor Tube
46Tube, Discharge
47Retainer, Terminal Cover
48Bolt, Compressor
49Spacer, Grommet
50Sleeve, Mounting
51Tube, Feeder
52Tube, Feeder
53Tube, Discharge Top Assembly (Includes 51 & 52)
53REFRIGERANT CHARGE 56.00 oz.
