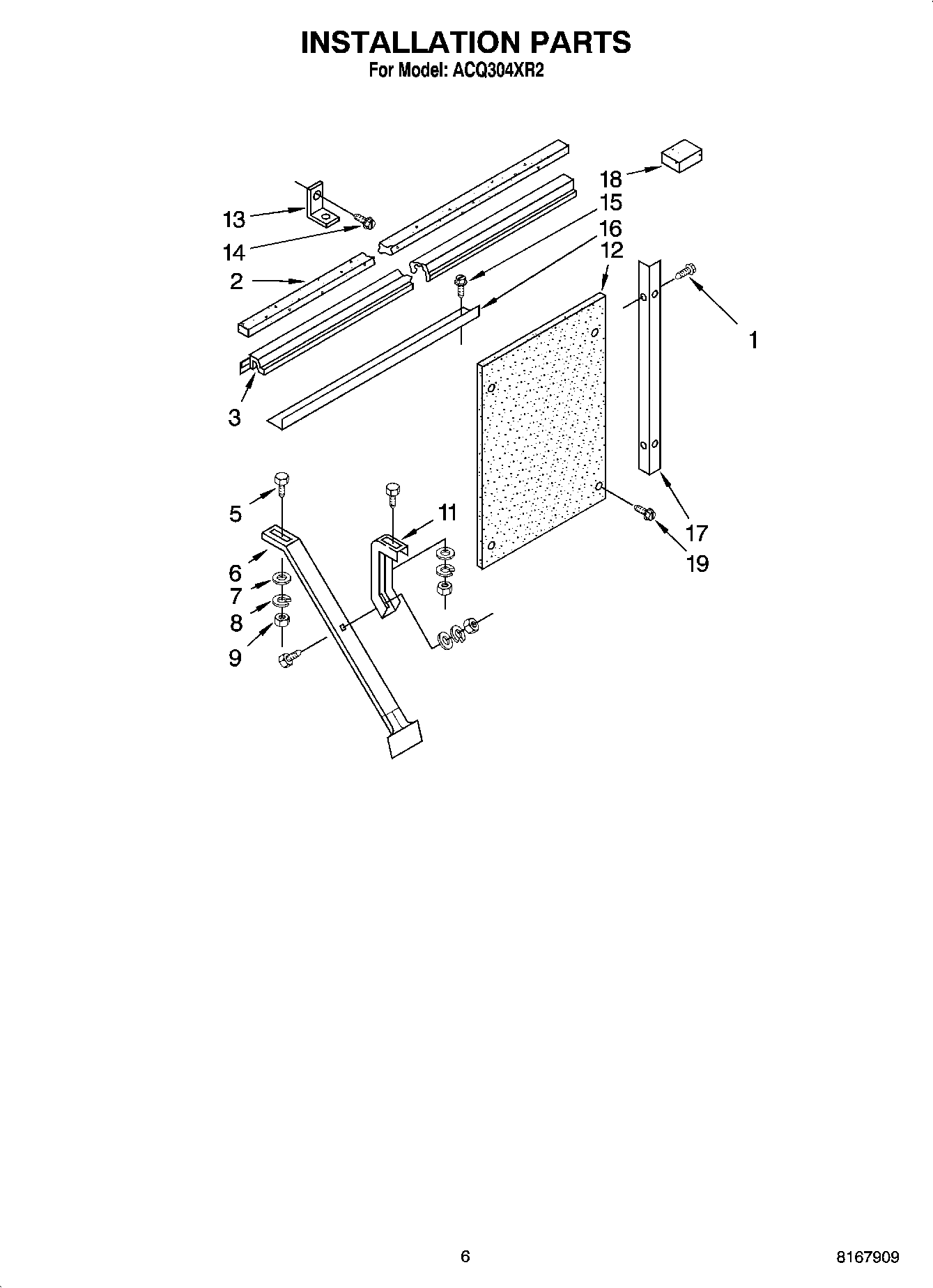

ACQ304XR2 04 – INSTALLATION PARTS

Products

Position	Product
1	Screw 8-18 x .295
2	Gasket, Meeting Rail
3	Gasket, Sash
5	Bolt, 1/4 x 3/4 (6)
6	Support, Cabinet (2)
7	WP120393 Whirlpool Washer Assembly
8	Lockwasher (6)
9	Nut, Hex (6)
11	Support, Retainer (2)
12	Board, Filler
13	Bracket
14	Screw (Window Lock Bracket)
15	WP489069 Whirlpool Compactor Screw
16	Angle (Top)
17	Angle (2)
18	Spacer, Block (4)
19	Screw (Side Angle To Filler Board)
