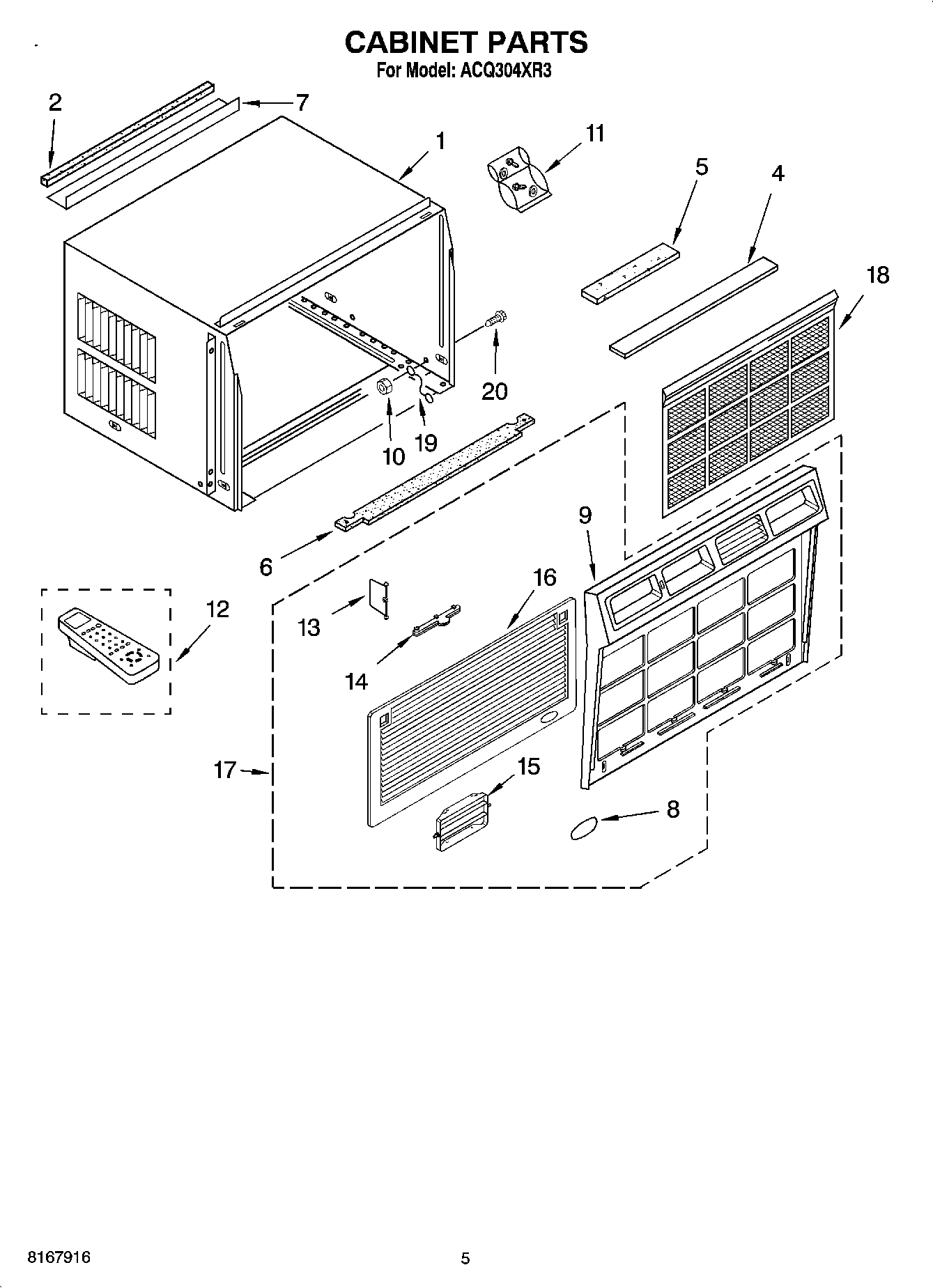

ACQ304XR3 03 – CABINET PARTS

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
4	Seal, Front Large
5	Seal
6	Seal
7	Angle (Top)
8	Nameplate
9	Frame, Front
10	WP486255 Whirlpool Air Conditioner Nut
11	Bag, Accessory
12	Control, Remote
13	Louver, Verticle
14	Link, Verticle Louver (2)
15	Cartridge
16	Door, Filter
17	Front, Complete
18	Filter
19	Wire, Ground
20	WP488234 Whirlpool Air Conditioner Screw
