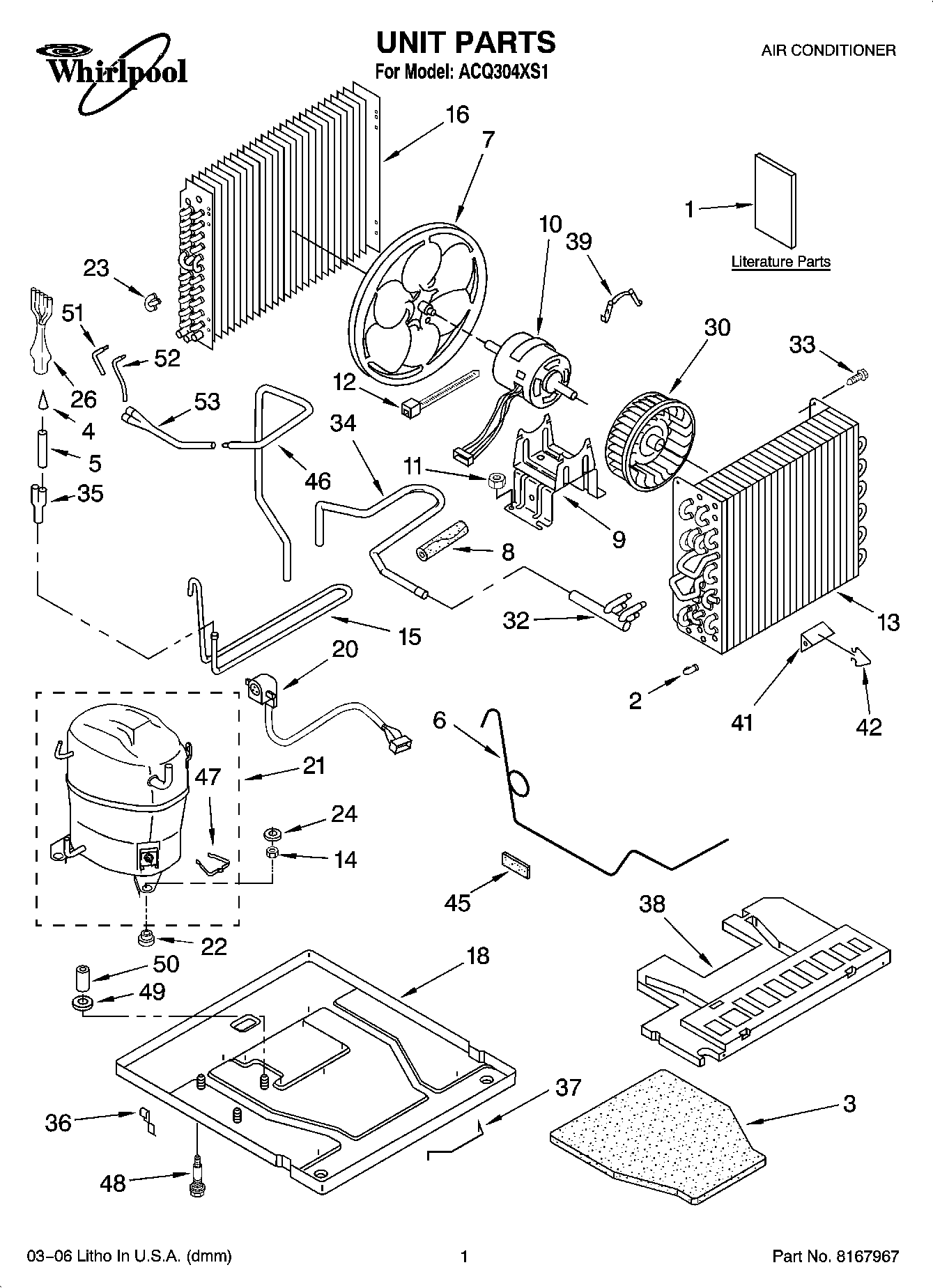

ACQ304XS1 01 – UNIT PARTS

Products

Position	Product
1	Use & Care Guide
1	Wiring Diagram
1	Energy Guide
2	Bend, Return Evaporator (11)
3	Insulation, Base (Bottom)
4	Strainer
5	Tube, Outlet (Includes Illus. 4)
6	Tube, Restrictor (4)
7	Blade, Fan (Condenser)
8	Seal, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	EVAPORATOR
14	W11236646 Whirlpool Washer Assembly
15	Wet, Loop
16	CONDENSER
18	Base
20	Harness, Wiring Compressor
21	Compressor
22	Grommet (3)
23	Bend, Return (3-Way)
24	90984 Whirlpool Nut
26	Distributor (Bottom)
30	Wheel, Blower (Evaporator)
32	Manifold, Suction
33	WP489069 Whirlpool Compactor Screw
34	Tube, Suction
35	Tube, Flow Divider
36	Clamp (2)
37	WPL 647971
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
41	Anticipator, Temperature
42	Clip, Anticipator
45	Seal, Restrictor Tube
46	Tube, Discharge
47	Retainer, Terminal Cover
48	Bolt, Compressor
49	Spacer, Grommet
50	Sleeve, Mounting
51	Tube, Feeder
52	Tube, Feeder
53	Tube, Discharge Top Assembly (Includes 51 & 52)
53	REFRIGERANT CHARGE 56.00 oz.
