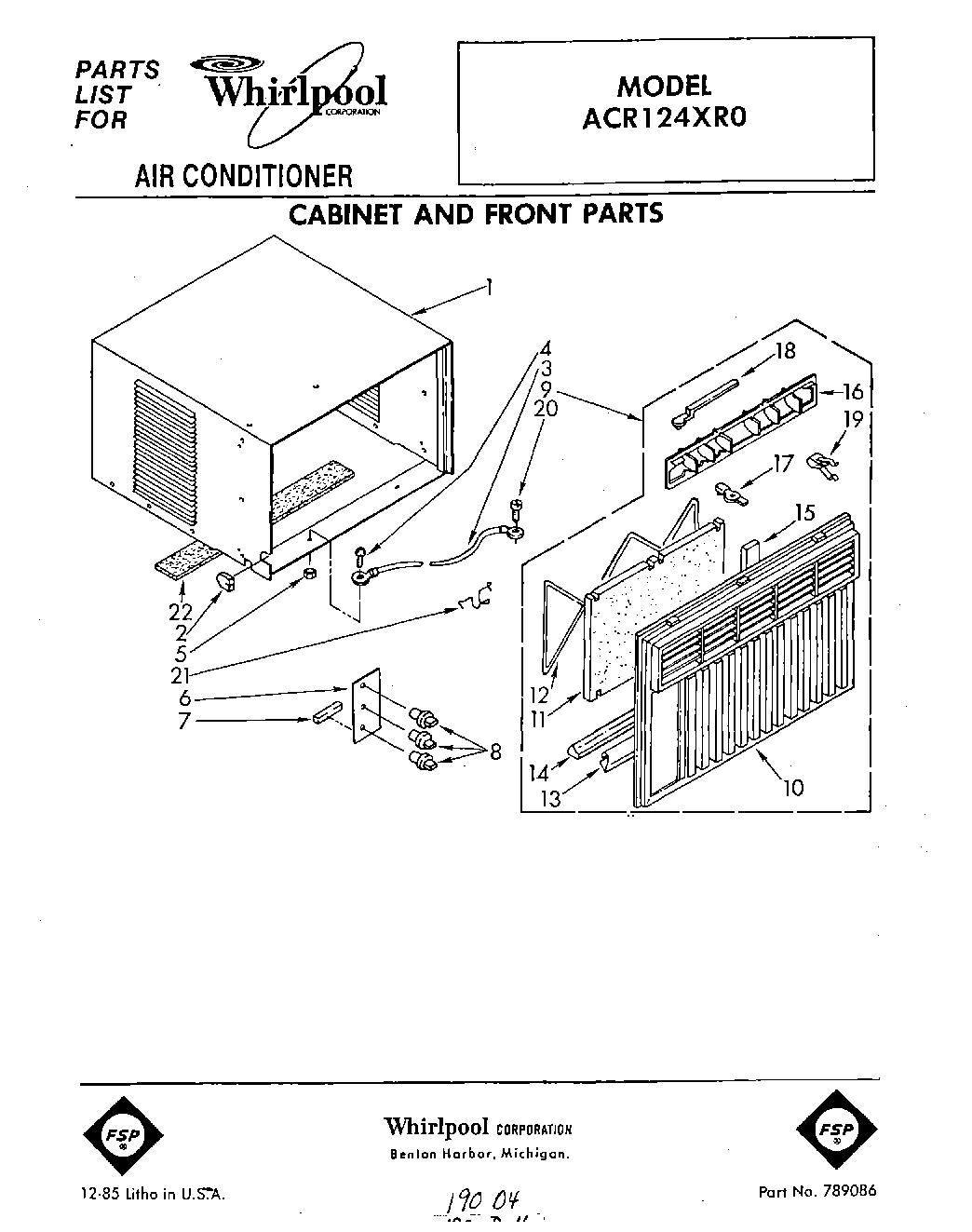

ACR124XR0 01 – CABINET AND FRONTadmin2025-04-26T10:46:50+00:00ACR124XR0 01 – CABINET AND FRONT
Products
| Position | Product |
|---|
| 1 | Cabinet |
| 2 | Grommet, Appliance Cable |
| 3 | Wire, Ground |
| 4 | Screw, 8 x 3/8 |
| 5 | WP486255 Whirlpool Air Conditioner Nut |
| 6 | Plate, Escutcheon |
| 7 | Spacer, Escutcheon Plate (3) |
| 8 | Knob, Control |
| 9 | Front Assembly, Cabinet (Complete) |
| 10 | Front, Cabinet |
| 11 | Filter |
| 12 | Retainer, Filter |
| 13 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 14 | Seal |
| 15 | Seal |
| 16 | Louver, Vertical |
| 17 | Handle, Vertical Louver (2) |
| 18 | Link, Vertical Louver (2) |
| 19 | Detent Spring (2) |
| 20 | Screw, 8 x 3/8 |
| 21 | Clip, Mtg. (2) (Base to Front) |
| 22 | Seal |
