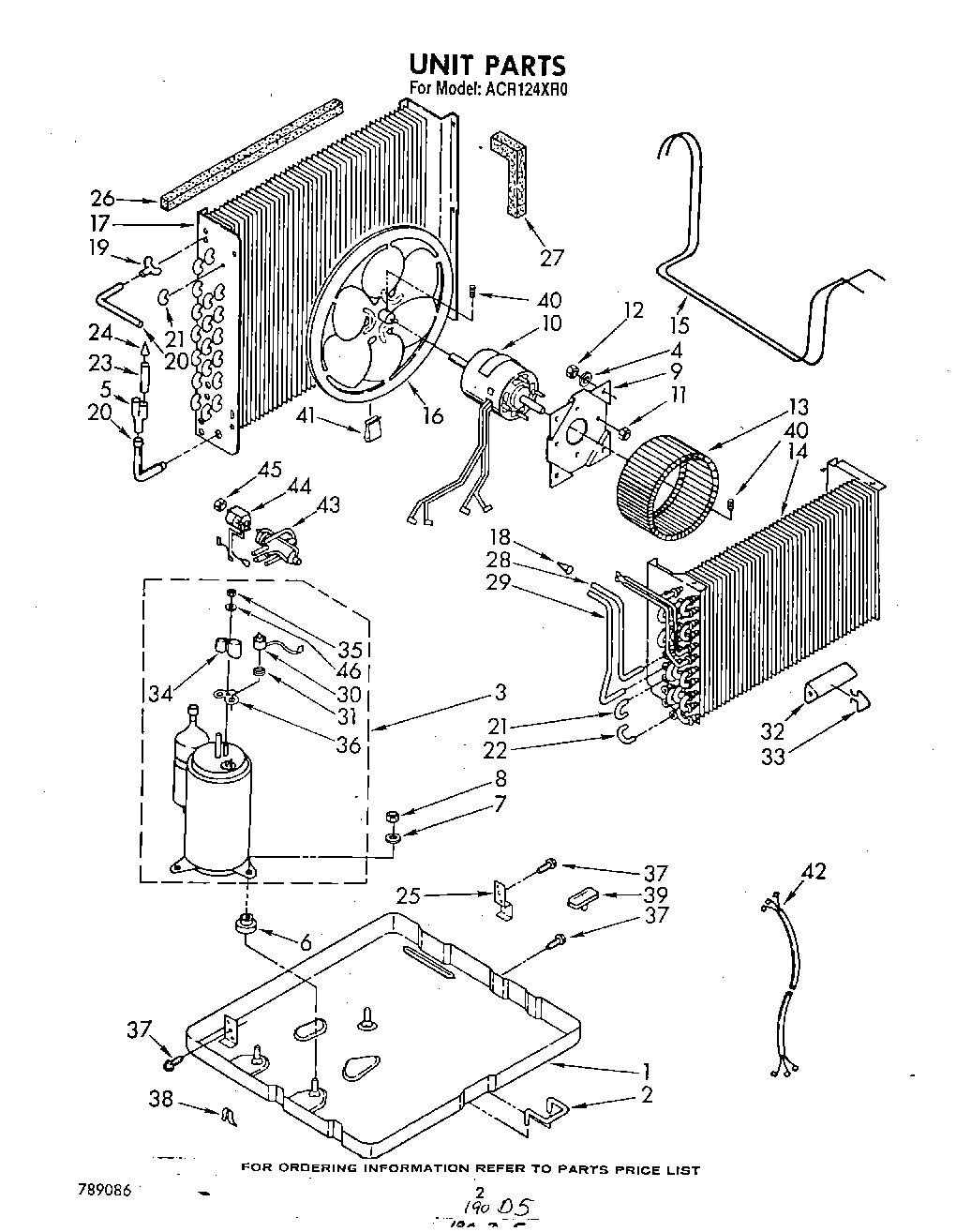

ACR124XR0 02 – UNIT

Products

Position	Product
1	Base
2	WPL 647971
3	Compressor
4	Washer, Repair (4)
5	Tube, Flow Divider
6	WP950021 Whirlpool Grommet
7	WP120393 Whirlpool Washer Assembly
9	WPL 998024
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	Nut, Hex (4)
13	Wheel, Blower
14	Evaporator
15	Tube, Restrictor (2) (Length 36.0“)
16	Fan, Blade
17	Condenser
18	Strainer
19	Bend, Return (3-Way)
20	Tube, 90~ Connect (2)
21	Bend, Return Evaporator (11)
22	Bend, Return Evaporator (4)
23	Tube & Strainer (Includes Item 23)
24	Strainer
25	WPL 647824
26	WPL 649609
27	WPL 649610
28	Tube, Outlet (Front)
29	Tube, Outlet (Rear)
30	Overload
31	Spring, Overload
32	Anticipator
33	Clip, Anticipator
34	WP950036 Whirlpool Cover Assembly
35	WP950027 Whirlpool Mounting Nut
36	WP950035 Whirlpool Cover Gasket
37	WP489069 Whirlpool Compactor Screw
38	Clamp, Restrictor Tube
39	WPL 647850
40	Setscrew, 5/16 x 1/4
41	Clip, Fan Balancing
42	Harness, Wiring
43	Valve, Reversing
44	Coil, Solenoid
45	WP488826 Whirlpool Nut
46	Gasket, Nut
